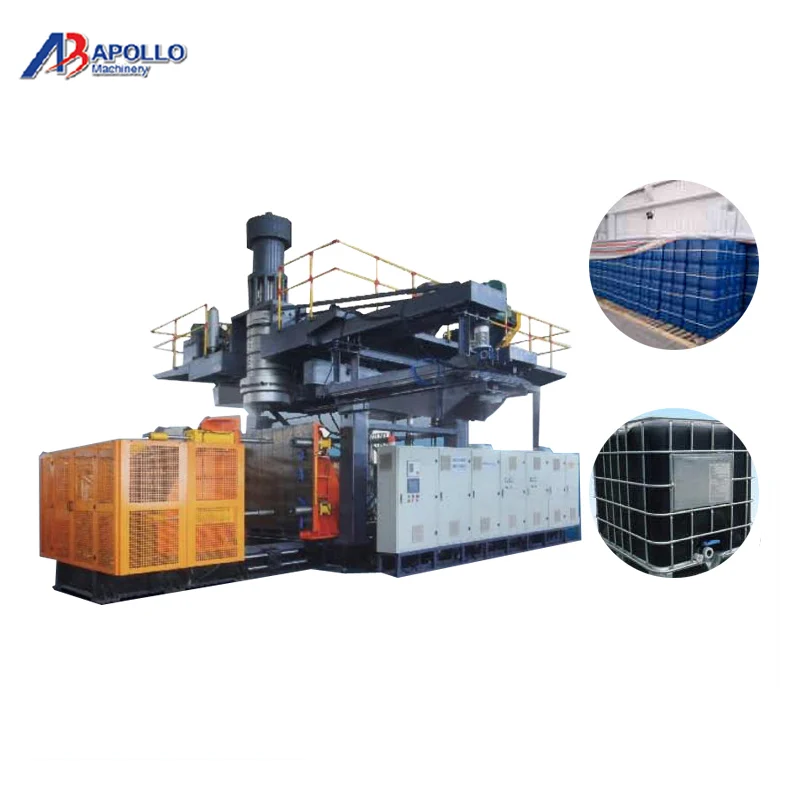

Apollo ABLD135 Pallet Blow Molding Machine with Factory Direct Sale Price

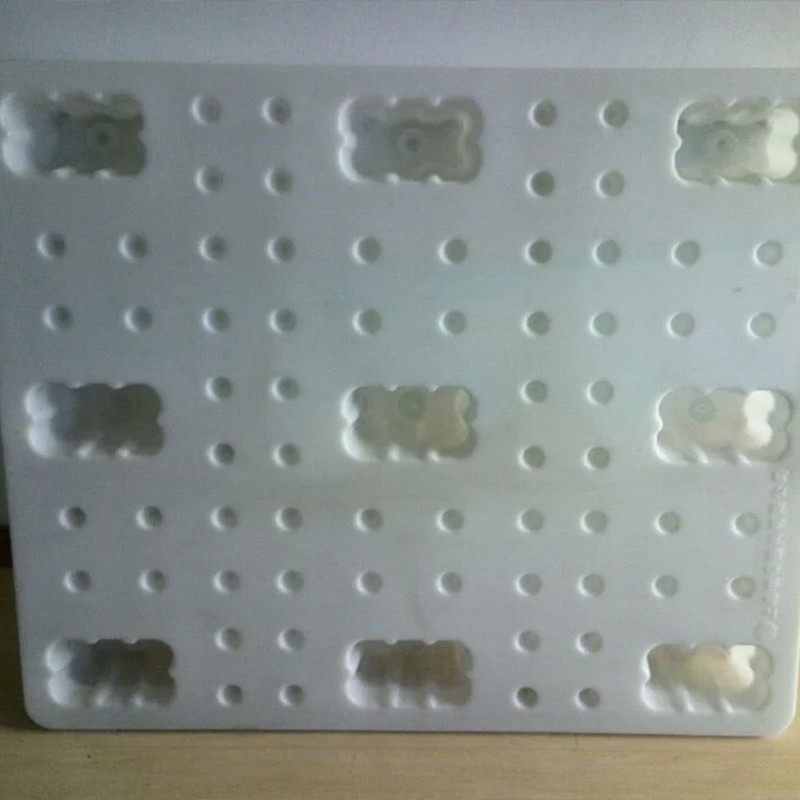

THE BLOW MOULDING MACHINE ABLD135 USED FOR PRODUCING PALLET.
MODIFFIED HYDRAULIC SYSTEM & RELIABLE MECHANICAL ACTIONS ARE THE MAIN TRAITS OF ABLD135 SERIES.
Availability:
Quantity:
  • apollo

  • 8477309000

Max. Product volume

1000 liters

Dry cycle

300pc/h

Screw diameter

110mm*2

Screw L/D ratio

25L/D

Screw servo drive power

110KW*2

Screw heating capacity

45Kw*2

No.of heating zone

5zones*2

Output of HDPE

300 KG/H

Oil pump drive power

30KW

Clamping force

1200 KN

Max.size of mold

1200X1400mm

Mold stroke

800-1750mm

Max.die diameter

580mm

Die heating power

60KW

Die heating segments

8zones

Blowing pressure

0.8mpa

Air volume

1.6 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

180 L/MIN

Size of machine

7.5 X 3.5 X 5.5m

Weight of machine

36ton
