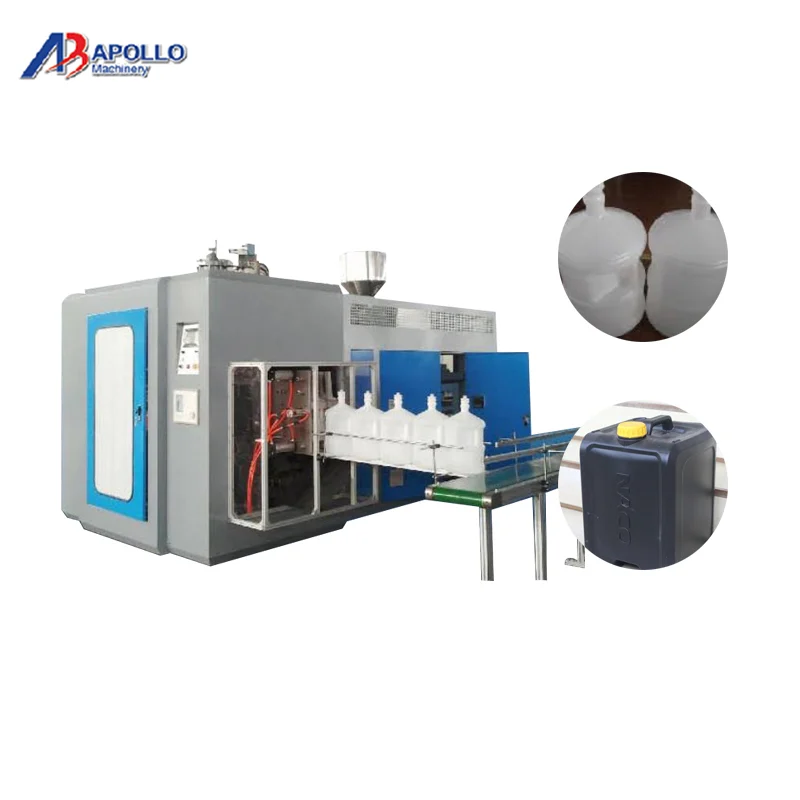

Full Automatic 4 Gallon Water Bottle Blow Molding Machine

Availability:
Quantity:
  • apollo

  • 8477309000

Max. Product volume

18 liters(round product)

Out put capacity

130-140pcs/h

Dry cycle

500*2pcs/h

Screw diameter

90mm

Screw L/D ratio

24 L/D

Screw drive power

37KW

Screw heating capacity

8 KW

No.of heating zone

4 zones

Output of HDPE

130KG/H

Oil pump drive power

11 KW

Clamping force

110KN

Max.size of mold

530*550mm

Mold stroke

180-680mm

Max.die diameter

200mm

Blowing pressure

0.6 mpa

Air Volume

0.9 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

90 L/MIN

Size of Machine

4.2x3x3.1m

Weight of machine

11ton
