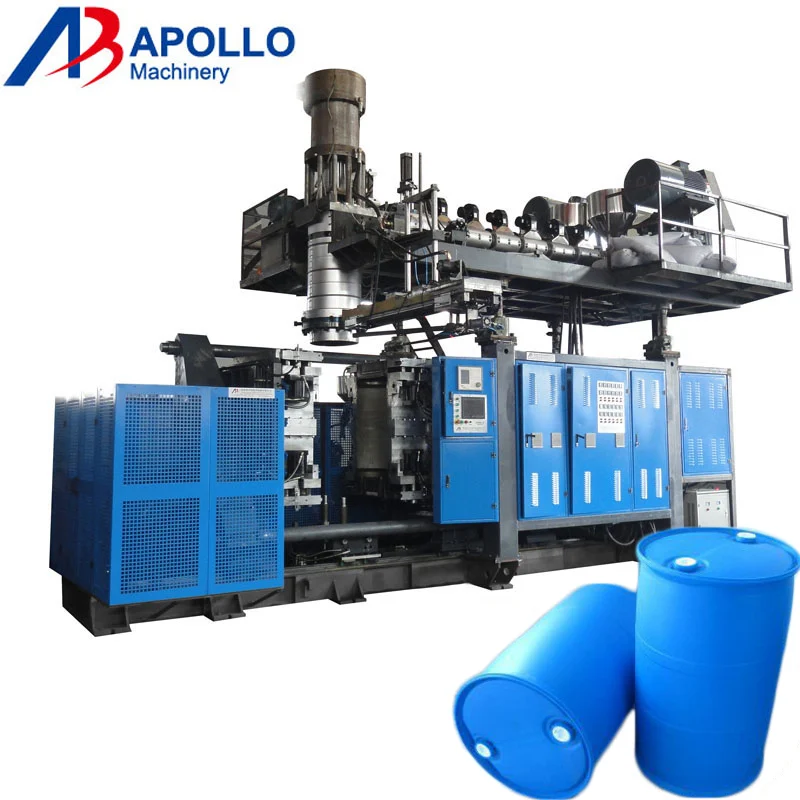

Full Automatic 500-1000L Drums Blow Molding Machine with Servo Syetem

THE BLOW MOULDING MACHINE ABLD150 USED FOR PRODUCING DRUMS, CHILDREN TOYS, BOXES WATER TANKS, AUTO PARTS ETC, IT IS SINGLE STATION ACCUMULATOR HEAD MODE, WHICH IS SPECIALLY DESIGNED FOR 1000L AS MAXIMUM VOLUME, SUITABLE FOR HDPE, PE, PP, PVC, PETG AND OTHER MATERIALS FOR BLOW MOULDING. THE PRODUCTIVITY OF 1000L IS HIGHER THAN 18 PCS PER HOUR.
MODIFFIED HYDRAULIC SYSTEM & RELIABLE MECHANICAL ACTIONS ARE THE MAIN TRAITS OF ABLD150 SERIES.
Availability:
Quantity:
  • apollo

  • 8477309000

The features of the1000L plastic drum making machine:

(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 220L.

(2)Single station single die head design,very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.

(5)Accumulation die head,MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.

(8)The most important: this blow moulding machine is equipped with servo system , it can save 30% power than traditional machines. It can help you make more money.

Max. Product volume

1000 liters

Screw diameter

120*2mm

Screw L/D ratio

30L/D

Output of HDPE

300*2KG/H

Material storage

70L

Clamping force

2800 KN

Mold platen dimension

2800*2000mm

Mold stroke

700-2300mm

Max.die diameter

1300mm

Screw drive power

75*2 KW

Screw heating capacity

30*2 KW

Die heating power

62 KW

Oil pump drive power

75 KW

Servo motor power

15KW
