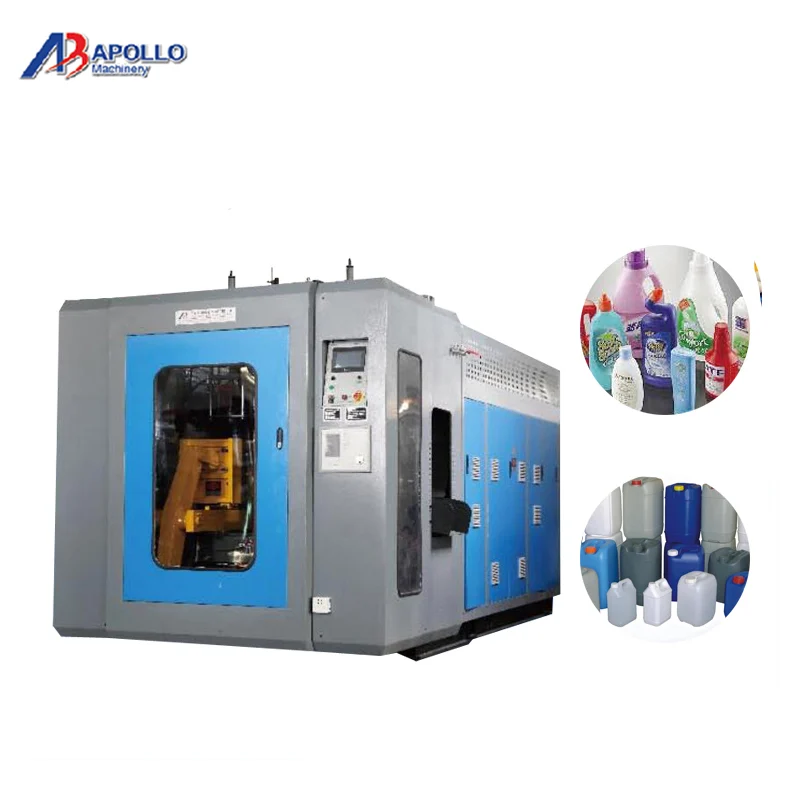

Full Automatic Plastic Bottle Blow Molding Machine

Output capacity

900-1100pcs/h

Screw diameter

75mm

Screw L/D ratio

24 L/D

Screw drive power

22 KW

Screw heating capacity

7 KW

No.of heating zone

4 zones

Output of HDPE

100KG/H

Oil pump drive power

11 KW

Clamping force

78KN

Max.size of mold

400*450mm

Mold stroke

148-568mm

Max.die diameter

160mm

Blowing pressure

0.6 mpa

Air Volume

0.8 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

80 L/MIN

Size of Machine

3.8x2.2x2.8m

Weight of machine

8 ton
