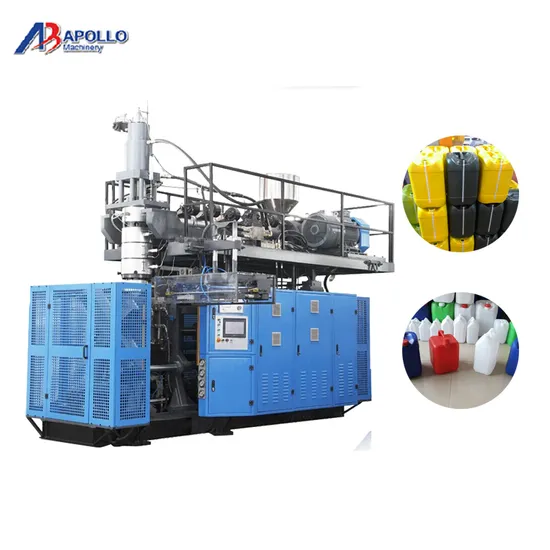

Tanks Extrusion Blow Molding Machine 60L:
ABLD90 Tanks Extrusion Blow Molding Machine is suitable for various kinds of plastic bottles in all shapes from 13L to 60L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years
The machine looks neat and nice
Perfect function with economic investment.
Product Description

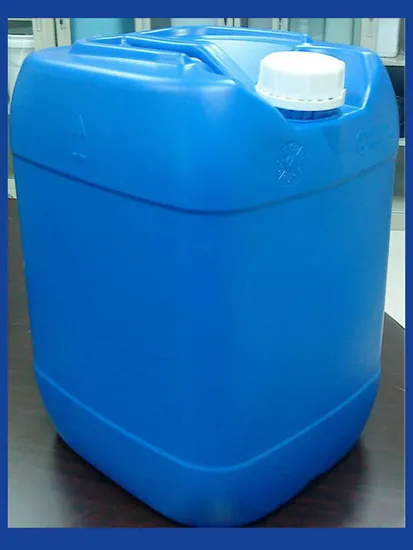

Automatic HDPE Jerry Cans making machine energy saving type Extrusion blow moulding machine

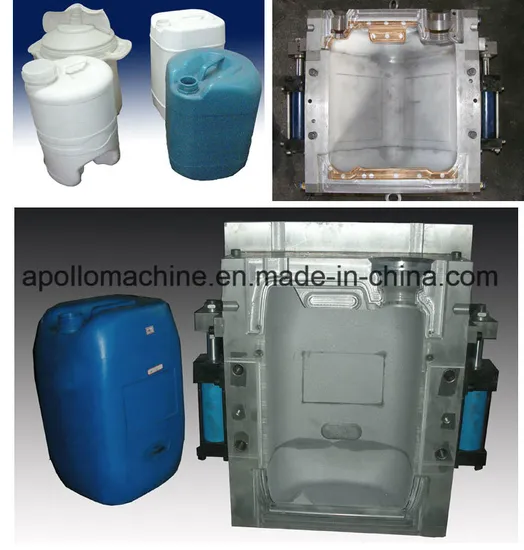

Jerry cans blow moulding machine
Model No.:
ABLD90(single station single die head) ABLD90 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 60L.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 60L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Main parts of Machine Picture Explanation This part is the full electric components of the machine: | Name | Units | ABLD90 |
| Max.product volume | L | 60 |
| Dry cycle | PC/H | 450 |
| Screw diameter | MM | 90 |
| Screw L/D ratio | L/D | 25 |
| Screw drive power | KW | 45 |
| Screw heating capacity | KW | 18 |
| No. of heating zone | ZONE | 4 |
| Output of HDPE | KG/H | 150 |
| Oil pump drive power | KW | 15 |
| Clamping force | KN | 320 |
| Max.size of mold | MM | 800×1200 |
| Material storage | L | 6.6 |
| Template size | MM | 900×900 |
| Mold stroke | MM | 450-1100 |
| Max. die diameter | MM | 340 |
| Die heating power | KW | 18 |
| Die heating few segments | ZONE | 4 |
| Blowing pressure | MPA | 0.8 |
| Air volume | M3/MIN | 1.0 |
| Cooling water pressure | MPA | 0.3 |
| Water consumption | L/MIN | 90 |
| Size of machine | L×W×H | 5.2×2.9×4.6 |
| Weight of machine | TON | 13.5 |
