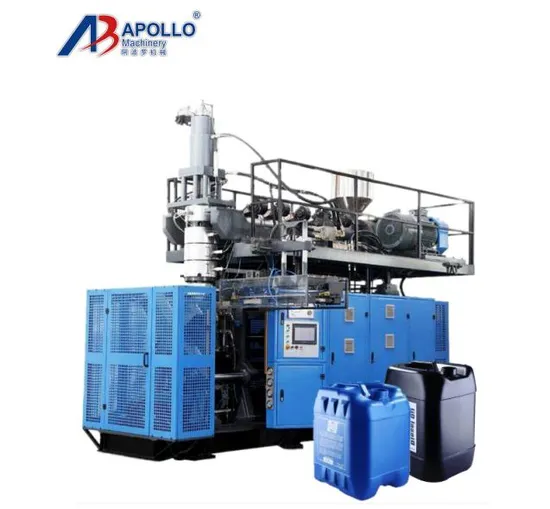

20L 50L Drum Bottles Jerry Cans Making Machine Energy Saving Type

Extrusion blow moulding machine

Jerry cans blow moulding machine
Model No.: ABLD80(single station single die head)
ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 25L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 30L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.

Main parts of Machine Picture Explanation

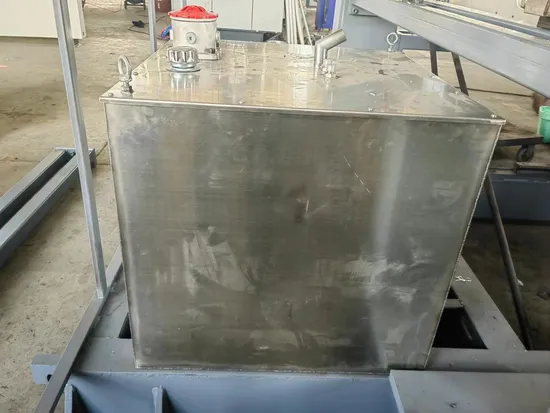

Oil Pump
Oil pump From Japan YUKEN driving the machine

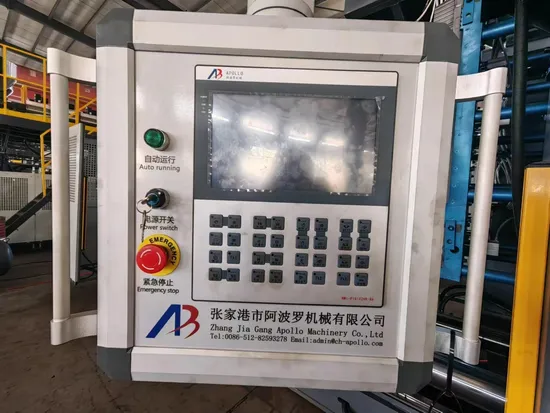

Computer control system (PLC)
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen
Parison
Controller
MOOG parison
Controller
Control the thickness of products
Screw cutter device
This device is able to remove the extra top of gallons

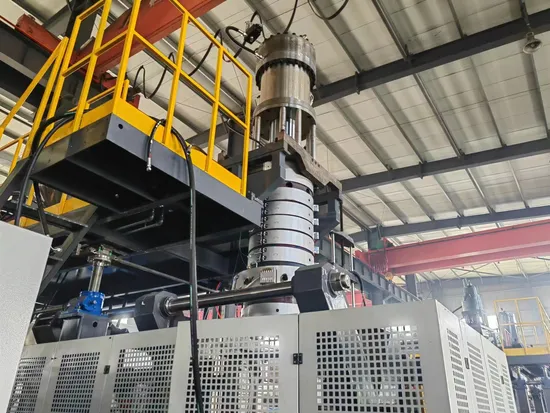

Die head
Accumulation die head
Manipulator
Manipulator will
Take the finished
Product out
Automatically

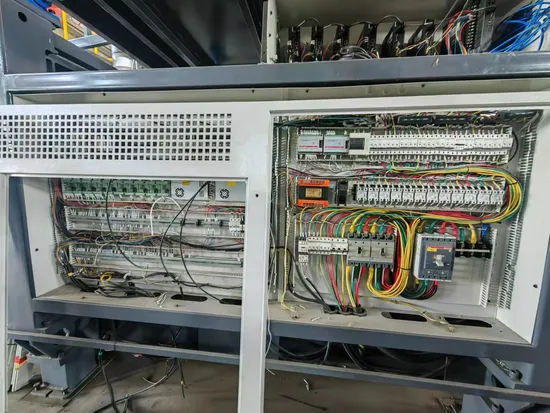

Electric Cabinet
This part is the full electric components of the machine.

The technical parameter of the machine:
    Technical Parameters: ( ABLD80)

1. Can the machine customized only for my products?

Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.

2. How about the molds ?

APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.

3. What is the business item for this project ?

a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .

b. Port of Loading: SHANGHAI, CHINA.

c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.

d. Container needed: One 20GP container.

4. How is APOLLO after-sales service?

a. Inspection

Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.

b. Debugging Instruction

APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.

C. User Training

APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they could understand the machine features and could operate the machine by themselves.

5. What is the warranty period?

a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.

b. Mould within one year or 5 millions warranty.
