You are here: Home » Products » Plastic accessory machines » Hot Sale Famous Brand 1L 5 L Plastic HDPE Bottle Blow Molding Machine

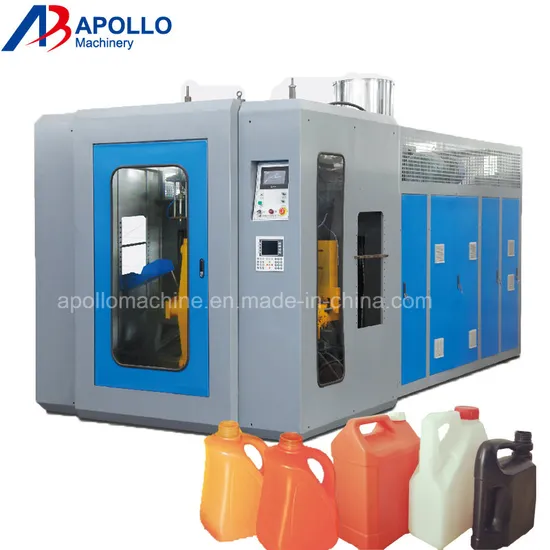

Hot Sale Famous Brand 1L 5 L Plastic HDPE Bottle Blow Molding Machine

Name: Hot Sale Famous Brand 1L 5 L Plastic HDPE Bottle Blow Molding Machine
Rating: 5.0 (87 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB80

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Transport Package

Film Packing

Specification

5L

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

8477301000

Production Capacity

500PCS/H

Product Description

High-Speed Auto Blow Moulding Machine (ABLB45)
ABLB45 full automatic extrusion blow molding machine was specially designed for making plastic water bottles, medical bottles, oil bottles, plastic balls, suction tubes and other small plastic containers not over 2L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 2L.
(2)Single station double die design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for maintenance.
Hot Sale Famous Brand 1L 5 L Plastic HDPE Bottle Blow Molding Machine

Max. Product volume	2L
Out put capacity	500~600pcs/h
Screw diameter	45mm
Screw L/D ratio	24:1 L/D
Screw drive power	10KW
Screw heating capacity	2.6KW
No.of heating zone	3 zones
Output of HDPE	35KG/H
Oil pump drive power	4.8KW
Clamping force	32KN
Max.size of mold	80-350mm
Mold stroke	250X 320mm
Max.die diameter	80mm
Blowing pressure	0.6mpa
Air Volume	0.4M³/MIN
Cooling water pressure	0.3mpa
Water consumption	30L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton
