20L 25L 20 Litre HDPE Oil Jerry Can Making Extrusion Blow Molding Machine

Name: 20L 25L 20 Litre HDPE Oil Jerry Can Making Extrusion Blow Molding Machine
Rating: 5.0 (14 reviews)

Customization:	Available
Raw Material:	HDPE
Making Method of Parison:	Extrusion-Blow Molding

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLD 90

Automation

Automatic

Computerized

Certification

CE

Application

Bottle

Max.Product.Volume

20L

Blow Moulding Type

Extrusion Blow Moulding

Place of Origin

Jiangsu, China (Mainland)

Brand Name

Apollo

Model Number

Ablb90I

Certificate

CE

Max Volume

50L

Screw Design

Single Screw

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

China

HS Code

8477301000

Production Capacity

4 Set/Sets Per Month

Product Description

20L 25L 20 Litre HDPE Oil Jerry Can Making Extrusion Blow Molding Machine

plastic tool box blow molding machine

CE approved 20L HDPE jerry can plastic blow moulding machine
plastic drum making machine
PE bottles making machine

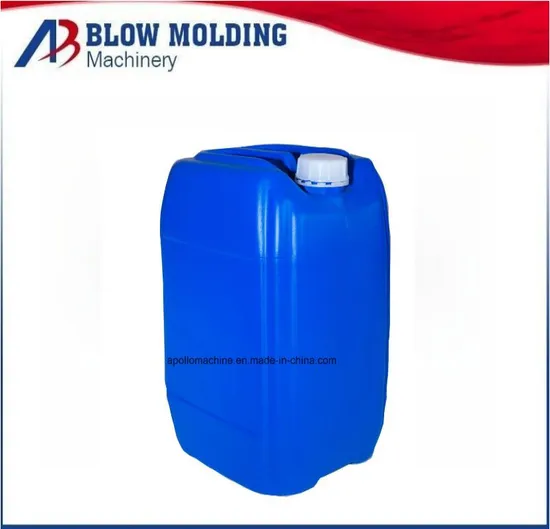

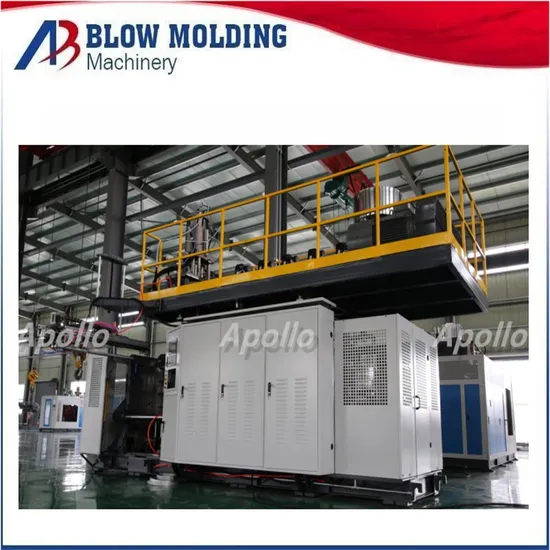

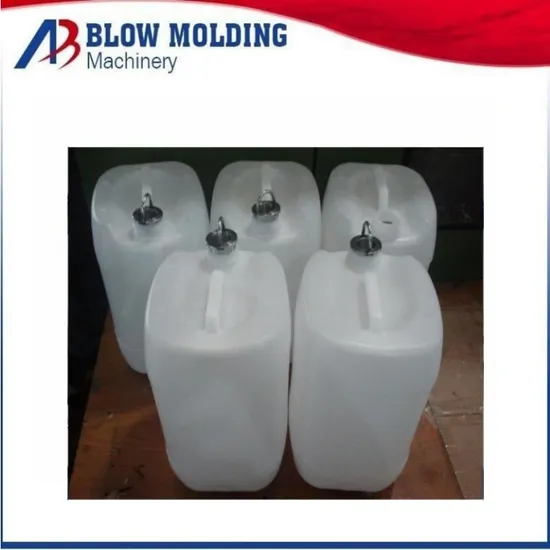

ABLB90 auto plastic can making machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.

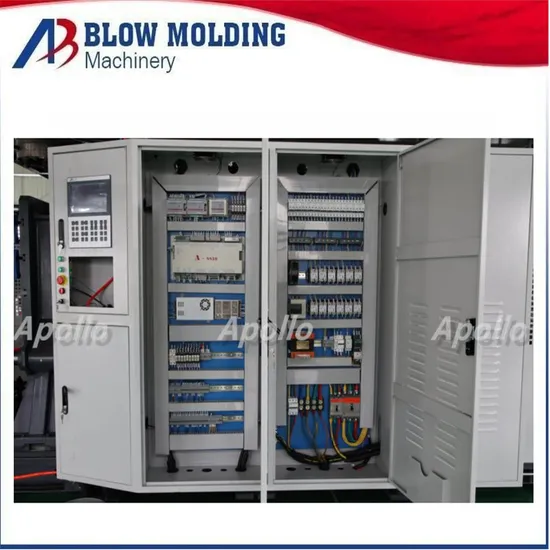

(7)Auto lubricant system controlled by PLC.

Max. Product volume	20 liters
Output capacity	1680~1820pc/day

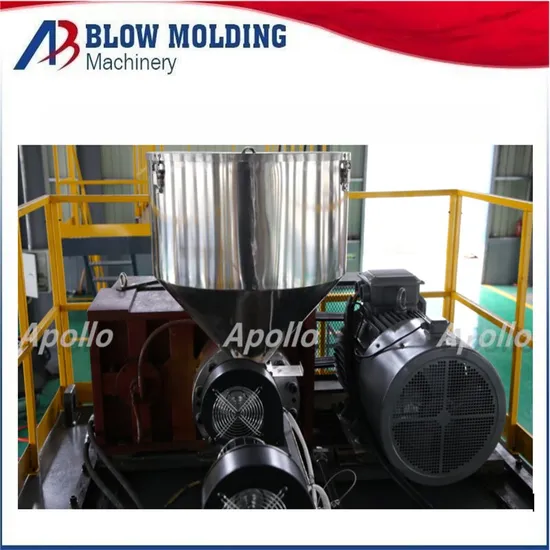

Screw diameter	90mm
Screw L/D ratio	25 L/D
Screw drive power	37KW
Screw heating capacity	18 KW
No.of heating zone	4 zones
Output of HDPE	130KG/H
Oil pump drive power	30 KW
Clamping force	260 KN

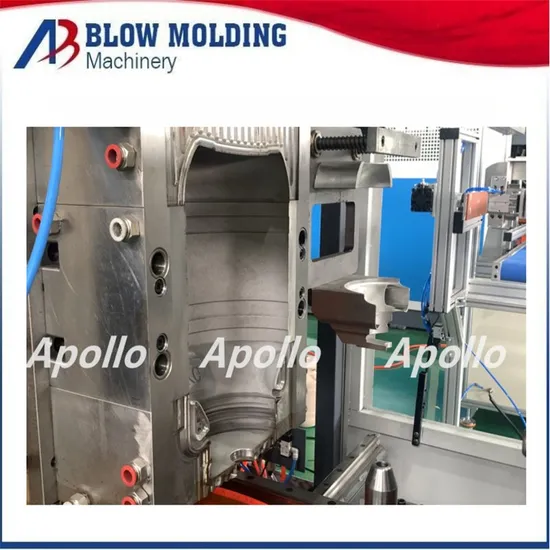

Max.size of mold	450-1000mm
Mold stroke	700 X 950mm
Max.die diameter	340mm
Blowing pressure	0.8 mpa
Air Volume	1 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
Size of Machine	4.4x2.6x3.1m
Weight of machine	9.3ton

20L 25L 20 Litre HDPE Oil Jerry Can Making Extrusion Blow Molding Machine

1. Q: -Can the machine customized only for my products?
  A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.

2. Q: -How about the molds ?
  A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various  for optional.

3. Q: -What is the business item for this project ?
  A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
        b. Port of Loading: SHANGHAI, CHINA.
        c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
        d. Container needed: One 20GP container.
