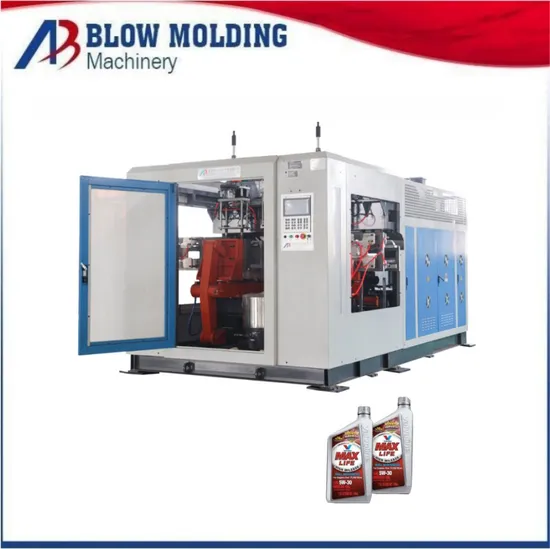

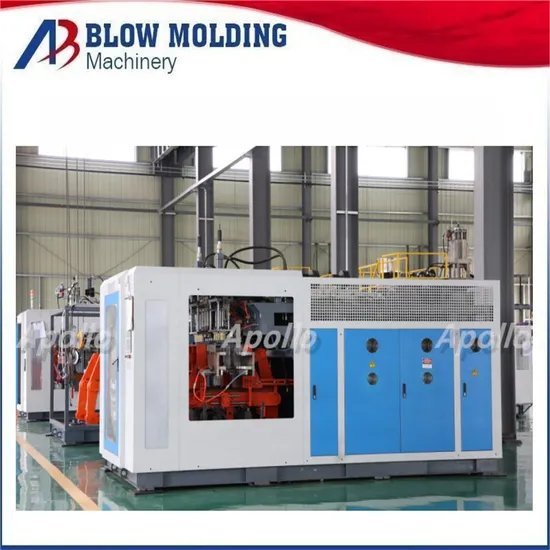

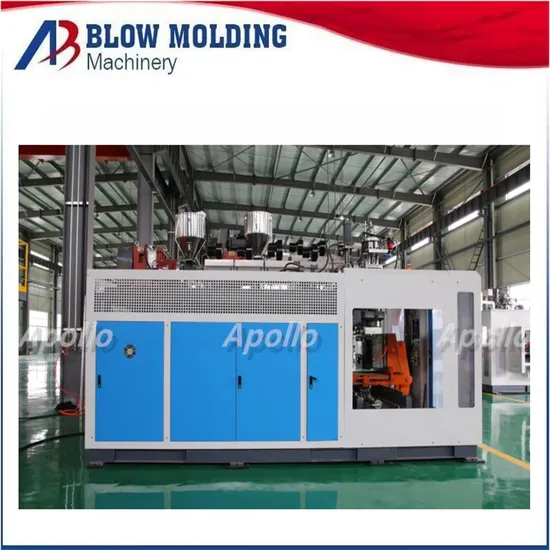

Automatic bottle making machine
Model No.: ABLB75(Double station single die head)

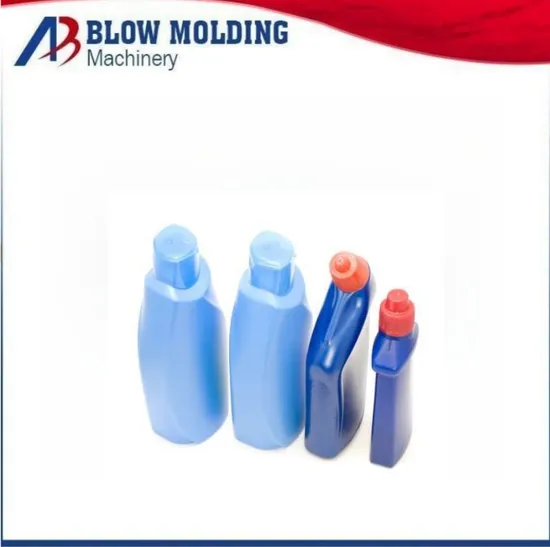

ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Technical Parameters: ( ABLB75II)
Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on
Max volume5L
Output capacity180~200 pcs/h
Size3.8×2.3×2.5(M)
Weight4.8T
systemSpecificationParametersNote
Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
ReducerHard finishing,High intension,Low noise reducer
Screw75mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization100Kg/HHDPE
Heating Zone3-4 Aluminum HeaterAutomatic heating
Heating power8KW/H
Extrusion MotorThree phase asynchronous motor (380V,50HZ) 22kw
Cooling Fan3-4zone Automatic cooling
| electronic parts | |
| Name | Trader |

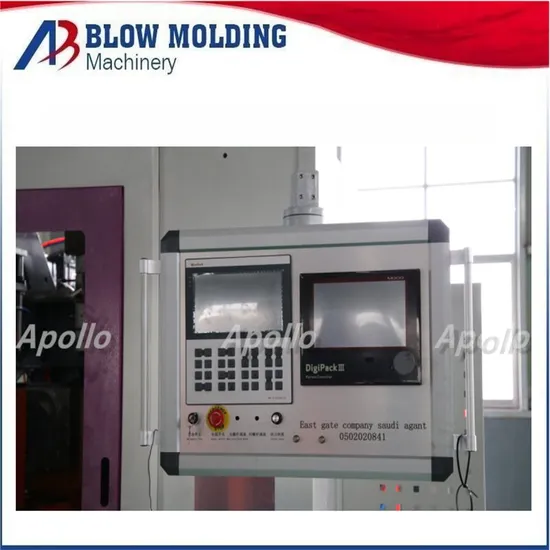

| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
