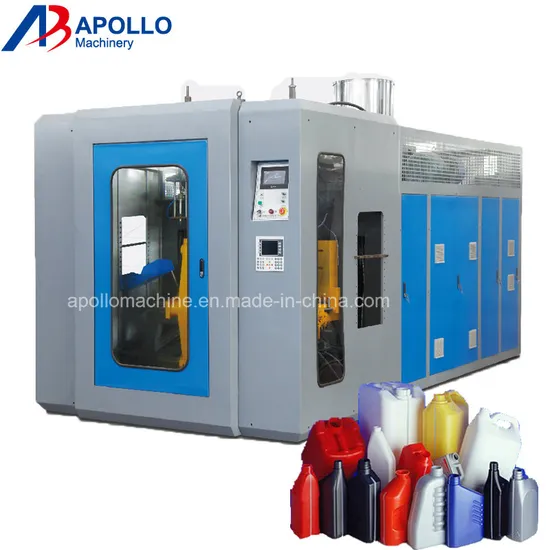

1 L 5 L Plastic Oil Bottle /Barrel High Speed Blow Molding Machine

Name: 1 L 5 L Plastic Oil Bottle /Barrel High Speed Blow Molding Machine
Rating: 5.0 (79 reviews)

Customization:	Available
Raw Material:	PVC
Making Method of Parison:	Extrusion-Blow Molding

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB 75

Automation

Automatic

Computerized

Certification

CE

Max. Product Volume

3.5L

Screw Diameter

55mm

Output of HDPE

60kg/H

Clamping Force

32kn

Size of Machine

2.9*1.5*2.5

Weight of Machine

4.5 Ton

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

84773000

Production Capacity

270PCS/H

Product Description

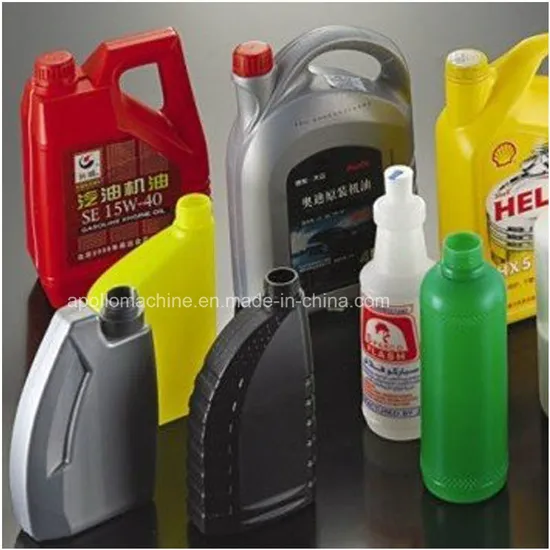

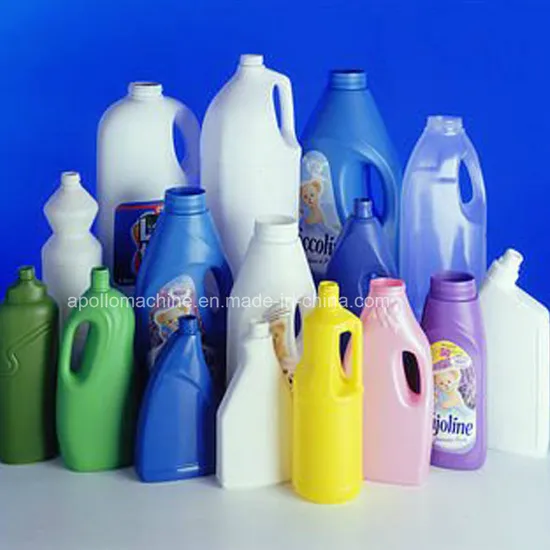

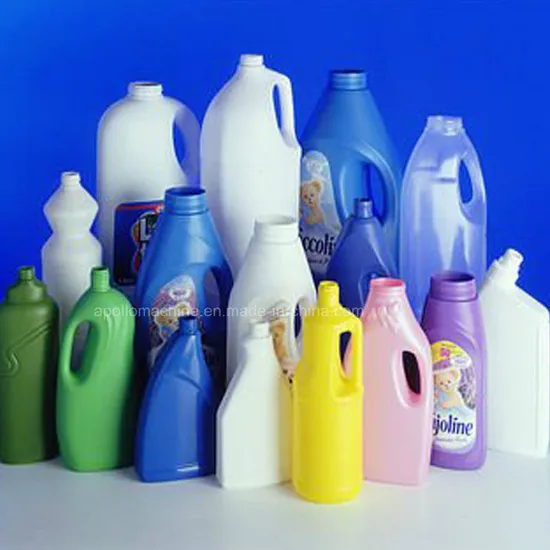

ABLB55 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 3.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

Max. Product volume	3.5L
Out put capacity	400~600pcs/h
Screw diameter	55mm
Screw L/D ratio	24:1 L/D
Screw drive power	10KW
Screw heating capacity	2.6KW
No.of heating zone	3 zones
Output of HDPE	35KG/H
Oil pump drive power	4.8KW
Clamping force	32KN
Max.size of mold	80-350mm
Mold stroke	250X 320mm
Max.die diameter	80mm
Blowing pressure	0.6mpa
Air Volume	0.4M³/MIN
Cooling water pressure	0.3mpa
Water consumption	30L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton
