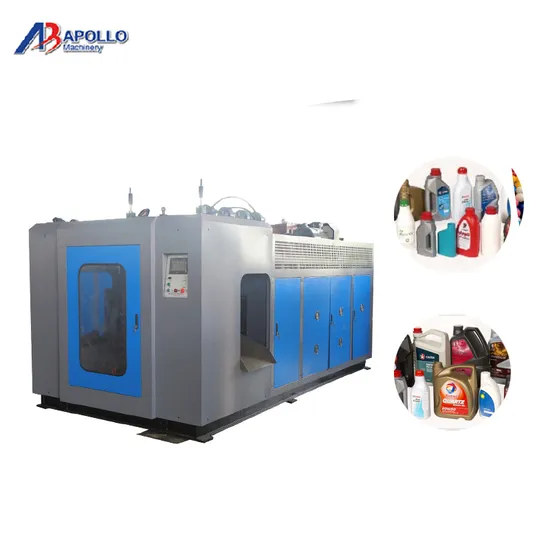

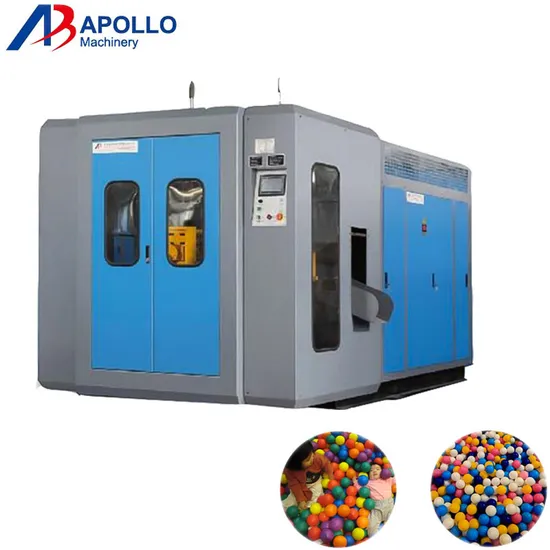

ABLB45 full automatic extrusion blow molding machine was specially designed for making plastic water bottles, medical bottles, oil bottles, plastic balls, suction tubes and other small plastic containers not over 2L.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 2L.

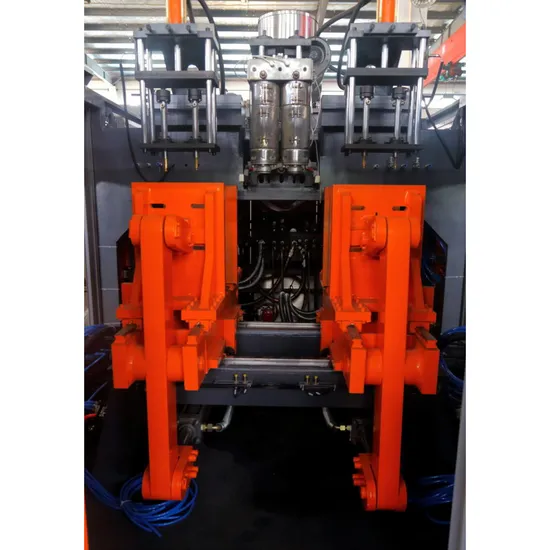

(2)Single station double die design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for maintenance.
The technical parameter of this machine: | Max. Product volume | 2L |
| Out put capacity | 500~600pcs/h |
| Screw diameter | 45 mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 11KW |
| Screw heating capacity | 2.6KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 40 KG/H |
| Oil pump drive power | 5.5 KW |
| Clamping force | 35 KN |
| Max.size of mold | 300×320 mm |
| Mold stroke | 150-500 mm |
| Max.die diameter | 120 mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.4 M³/MIN |
| Cooling water pressure | 0.3 mpa |
| Water consumption | 30 L/MIN |
| Size of Machine | 2.6x1.8x2.2m |
| Weight of machine | 3.5 ton |
The component of the machine: | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |

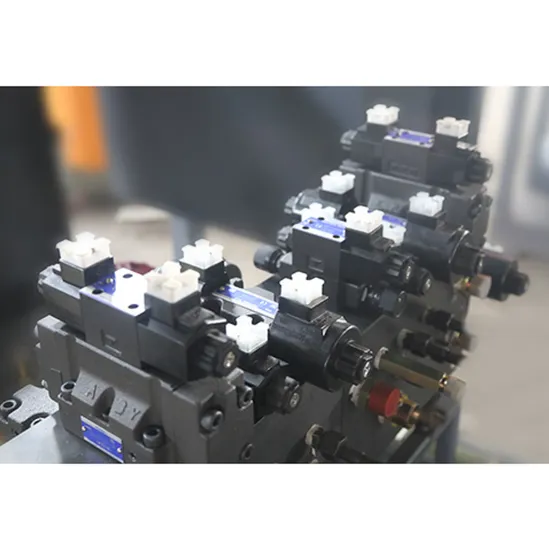

| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
