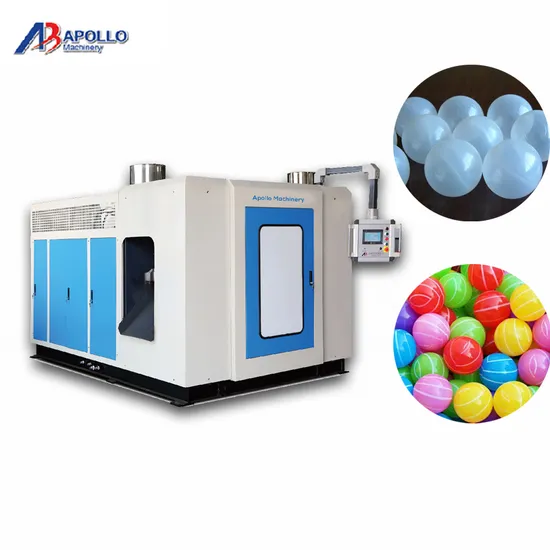

Automatic bottle making machine Model No.: ABLB55(single station single die head)

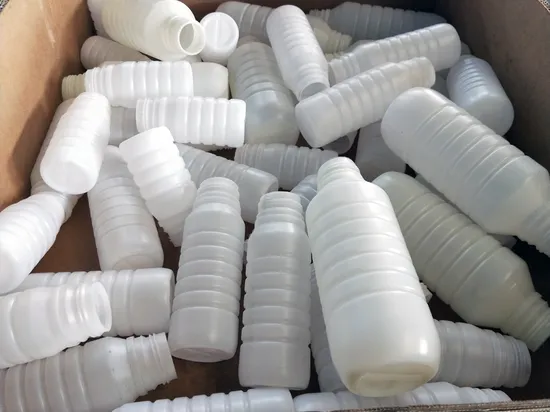

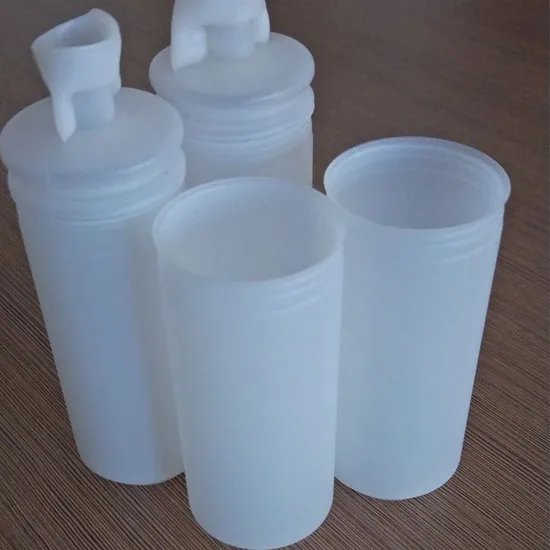

ABLB55 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable. The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 3.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance. | Max. Product volume | 3.5L |
| Out put capacity | 400~600pcs/h |
| Screw diameter | 45mm |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 10 KW |
| Screw heating capacity | 2.6 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 35 KG/H |
| Oil pump drive power | 4.8 KW |
| Clamping force | 32KN |
| Max.size of mold | 80-350mm |
| Mold stroke | 250 X 320mm |
| Max.die diameter | 80mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.4M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 30 L/MIN |
| Size of Machine | 2.6x1.4x2.2m |
| Weight of machine | 2.8 ton |
