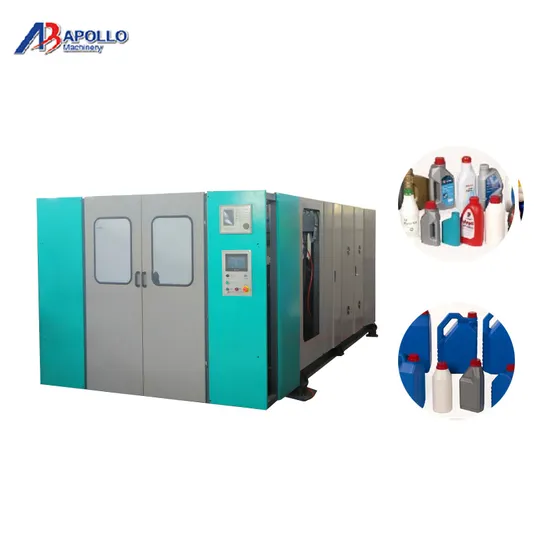

Detergent Plastic Bottle Blow Moulding Machine
(ABLB65) ABLB65 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station single head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
The main technical parameter of the machine: | Max. Product volume | 5L |
| Out put capacity | 150~160pcs/h |
| Screw diameter | 65 |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 10KW |
| Screw heating capacity | 2.6KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 35KG/H |
| Oil pump drive power | 4.8KW |
| Clamping force | 32KN |
| Max.size of mold | 80-350mm |
| Mold stroke | 250X 320mm |
| Max.die diameter | 80mm |
| Blowing pressure | 0.6mpa |
| Air Volume | 0.4M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 30L/MIN |
| Size of Machine | 2.6x1.4x2.2m |
| Weight of machine | 3.8 ton |
The component of the machine: | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |

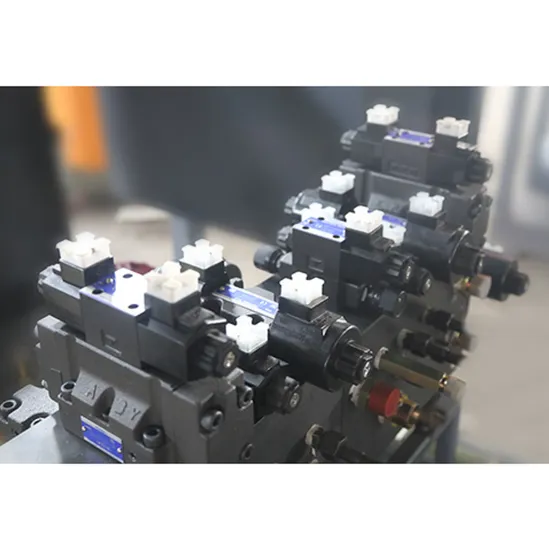

| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
