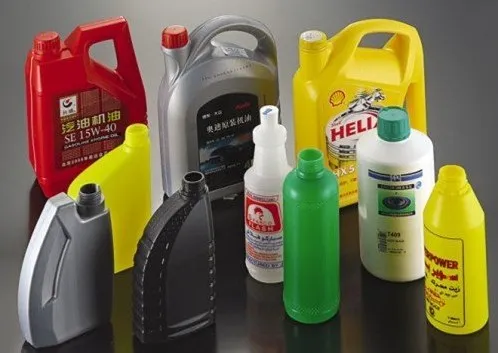

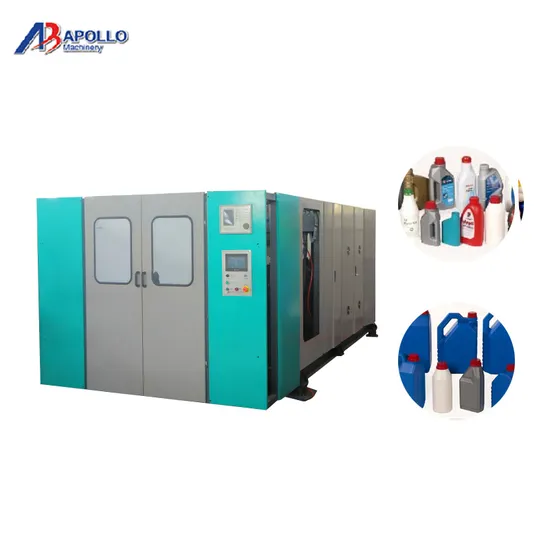

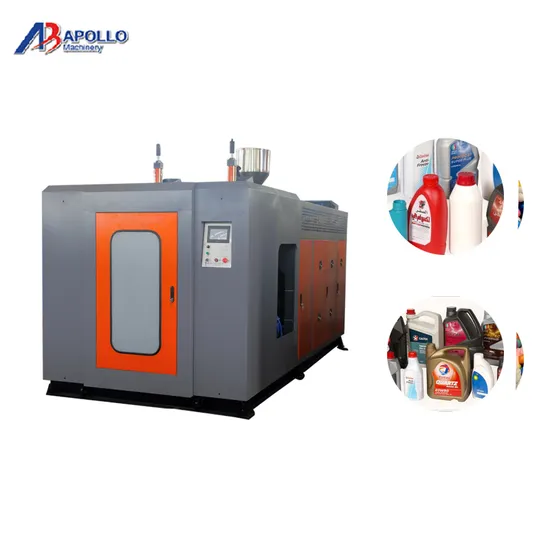

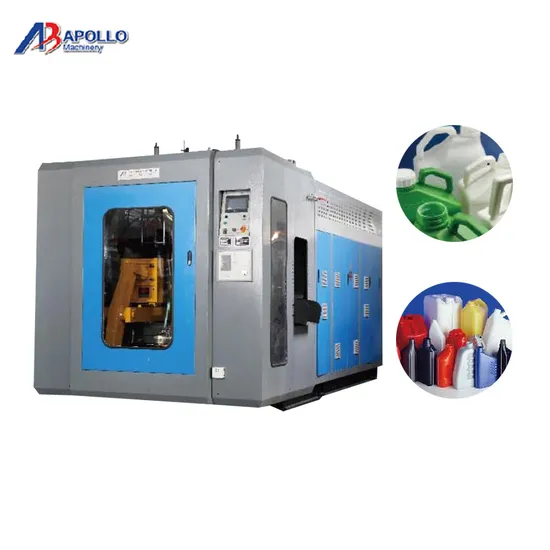

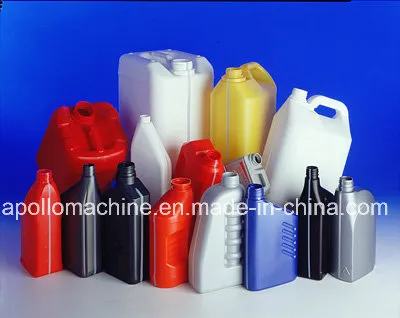

Automatic blowing machine: ABLB75II is designed according to CE standard. Adding a safe door and infrared signal lamp to avoid the happen of accident. This machine looks neat and nice. And it is widely used to produce kinds of cosmetic bottles, medical bottles, milk bottles, shampoo bottles and so on.
Main technical parameter: | Max. Product volume: | 8 liters |
| Dry cycle: | 800×2 PC/H |
| Screw diameter: | 75mm |
| Screw L/D ratio: | 24 L/D |
| Screw drive power: | 22 KW |
| Screw heating capacity: | 7 KW |
| No. Of heating zone: | 4 zones |
| Output of HDPE: | 100 KG/H |
| Oil pump drive power: | 7.5 KW |
| Clamping force: | 80 KN |
| Max. Size of mold: | 400×420mm |
| Mold stroke: | 170-520mm |
| Max. Die diameter: | 160mm |
| Blowing pressure: | 0.6mpa |
| Air volume: | 0.8 M³ /MIN |
| Cooling water pressure: | 0.3mpa |
| Water consumption: | 80 L/MIN |
| Size of machine: | 4.4×2.2×2.7m |
| Weight of machine: | 8 ton |
The component of the machine: | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
