100ml~2L households products making machine

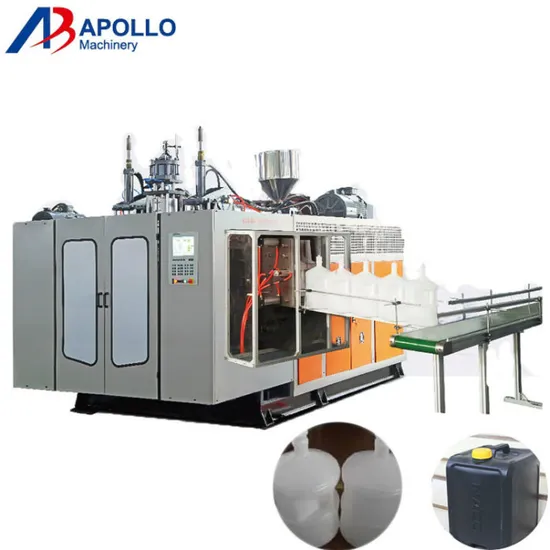

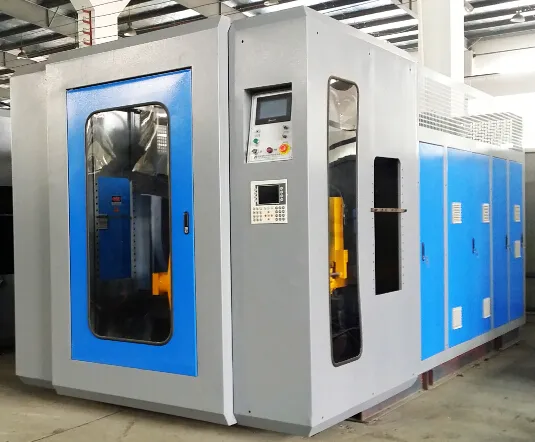

ABLB55 full automatic stretch extrusion blow molding machine was specially designed for plastic suction tube. Process of the manufacture can be divided into three parts: First, extrusion plastic, second, Stretch the hot tubel, the third step is blowing and forming in the mold. Advisable design plus perfect craft will guide you to get the perfect suction tubes.
The features of this machine:

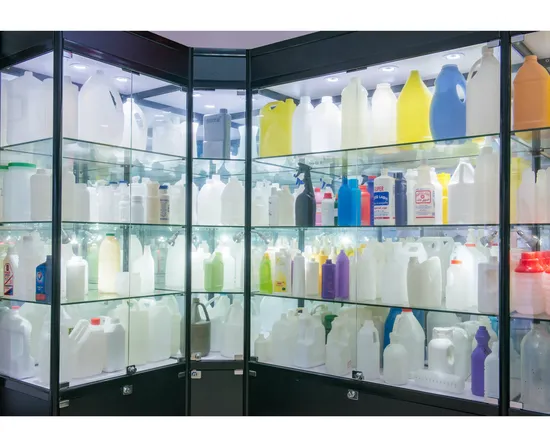

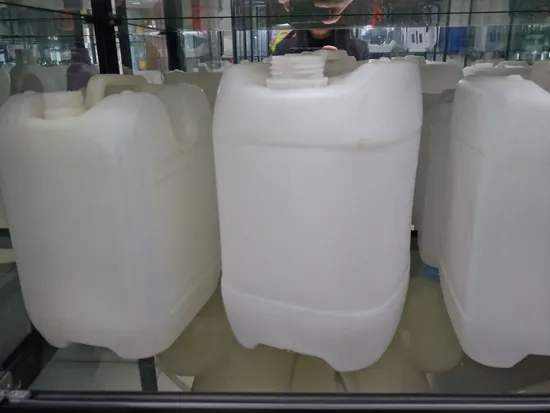

(1)It is suitable for producing PP, PE, PVC and plastic containers and bottles in all shapes, the max. Product volume is up to 2L.
(2)It is mainly designed for small plastic products and plastic tube, especially for plastic suction tube.
(3)Feeding system carries performance automatically through a suction feeder. It can save the labor cost for you. One worker can look after 5 sets at the same time.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting and maintenance.
Technical Parameters: ( ABLB55I-2 ) Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 1L
Output capacity 250~300 pcs/h
Size 2.8×2.1×2.5(M)
Weight 4.5T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 55mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization 60Kg/H HDPE
Heating Zone 3-4 Aluminum Heater Automatic heating
Heating power 5KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ) 11kw
Cooling Fan 3-4 zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 2
Center distance of die heads 130
Max die mouth 140mm
Heating zone 3-4 Stainless steel heating cycle
Heating power 2~4KW
Clamping system Summarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 56KN
Template distance 80~350mm
Max mould size 290X320mm
Mould material High grade 50# steel
Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V,50HZ) 5.5kw
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6Mpa
Air displacement 0.6M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 50L/min
Water pressure 0.3-0.6MPa
The main components of the machine. ( ABLB55I-2 )
electronic parts
Name Trader
Micro computer control system Japanese MITSUBISHI
Temperature Controller Japanese MITSUBISHI
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor SIEMENS MOTOR
Power Source TAIWAN MEANWELL
Inverter DELTA
hydraulic parts
Name Trader
Oil pump TAIWAN HIGH-TECH

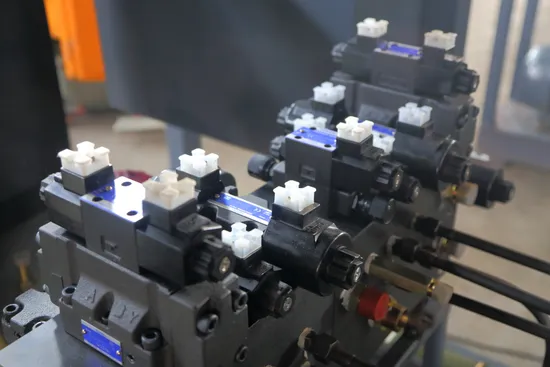

Valve JAPAN YUKEN
Oil pump and connection JAPAN YUKEN
Sealed part HALLITE
air control system
Name Trader
Cylinder AIRTAC
Air Valve AIRTAC
| Max. Product volume | 2L |
| Out put capacity | 5 00~600 pc s /h |
| Screw diameter | 45 mm |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 10 KW |
| Screw heating capacity | 2.6 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 35 KG/H |
| Oil pump drive power | 4.8 KW |
| Clamping force | 32 KN |
| Max.size of mold | 80-350 mm |
| Mold stroke | 250 X 320 mm |
| Max.die diameter | 80 mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.4 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 30 L/MIN |
| Size of Machine | 2.6x1.4x2.2m |
| Weight of machine | 2.8 ton |
The main components of the machine:
| electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | TAIWAN YANHUA PID |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | FESTO |
