High Quality Plastic Chemical Barrel Blow Molding Machine

Name: High Quality Plastic Chemical Barrel Blow Molding Machine
Rating: 5.0 (86 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	PE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLD90 machine

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Application

Plastic Chemical Barrel

Max. Product Volume

230L

Blow Moulding Type

Extrusion Blow Moulding

Place of Origin

Jiangsu, China (Mainland)

Brand Name

Apollo

Certificate

Ce

Color

Customized

Product Name

Plastic Chemical Barrel Blow Molding Machine

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

China

HS Code

8477301000

Production Capacity

4 Set/Sets Per Month

Product Description

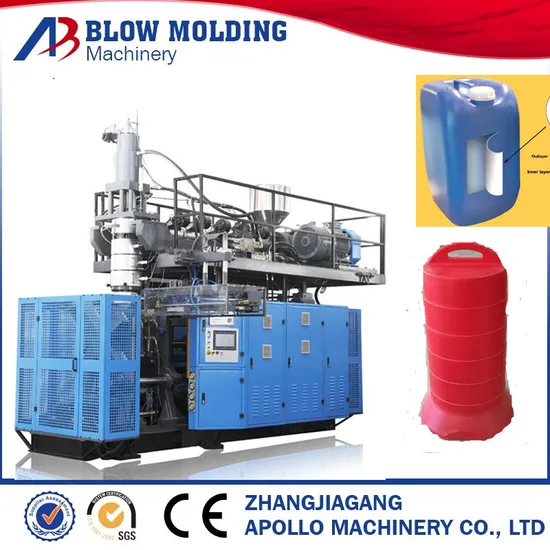

High Quality Plastic Chemical Barrels Blow Molding Machine

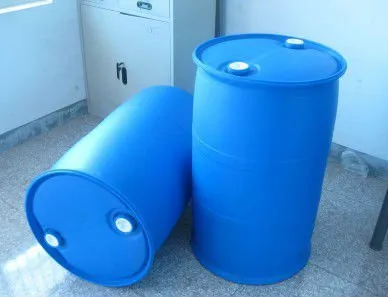

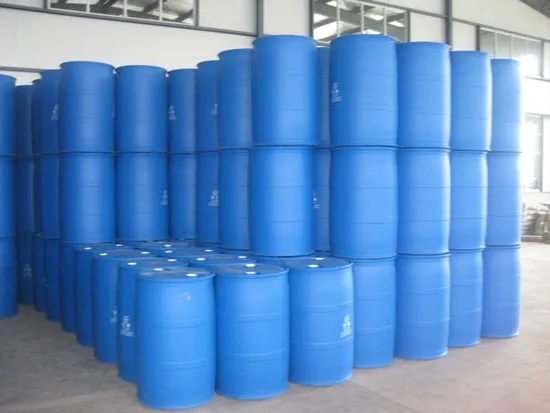

ABLD120 plastic drum making machine was specially designed for making plastic water tanks,chemical drums,plastic cans, lubricant oil drums,plastic drums, plastic toys and other plastic containers not over 230L.

The features of this machine:
(1) It is suitable for producing PE,HDPE,PP so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 230L.
(2) Single station single die head design,very easy to operate and maintenance.
(3) Most components of the blow moulding machine are from famous world brand.
(4) Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5) Accumulation die head, 100 point parison controller equipped.
(6) Bottom blow technology make the product perfect.
(7) Auto lubricant system controlled by PLC.
(8) Equipped with germany servo system , can save more than 40% power and very stable .

Max. Product volume	230 liters
Dry cycle	300pc/h
Screw diameter	120mm
Screw L/D ratio	33 L/D
Screw drive power	132 KW
Screw heating capacity	36 KW
No.of heating zone	6zones
Output of HDPE	320 KG/H
Oil pump drive power	37KW
Clamping force	900 KN
Max.size of mold	1400X1600mm
Mold stroke	700-1600mm
Max.die diameter	580mm
Die heating power	36 KW
Die heating segments	6zones
Blowing pressure	0.8mpa
Air volume	1.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	180 L/MIN
Size of machine	7.5 X 3.5 X 5.5m
Weight of machine	36ton

Packaging & Delivery:
1, Packaging Details:
Inner Package: Film Packaging.
Outside Package: Wooden Cases.
2, Delivery:
Time of Delivery: 35 Days after we receive the deposit.
Mode of Payment: T/T, L/C

Company Philosophy and Exhibition:
1, Development, Apollo's pursue. Innvation, Apollo's Spirit.
2, We are always put our customers satisfication and interests in the first place.
3, Our product have a great reputation in the Blow Molding Machine and our machine are welcomed by our new and old customers.

High Quality Plastic Chemical Barrel Blow Molding Machine

After-sale Service:
1. One year warrantly after sale.
2. Provide technical advisory service for a long time.
3. Professional after-sale service.
4. We will train two or three operating man for free.
(Travel and hotel is paid by buyer's expenses.)
