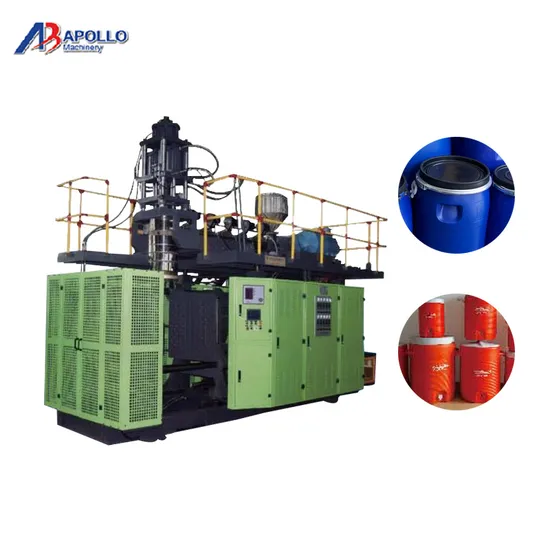

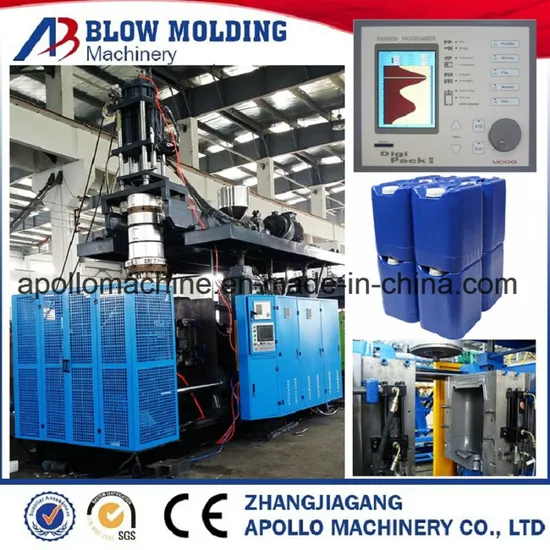

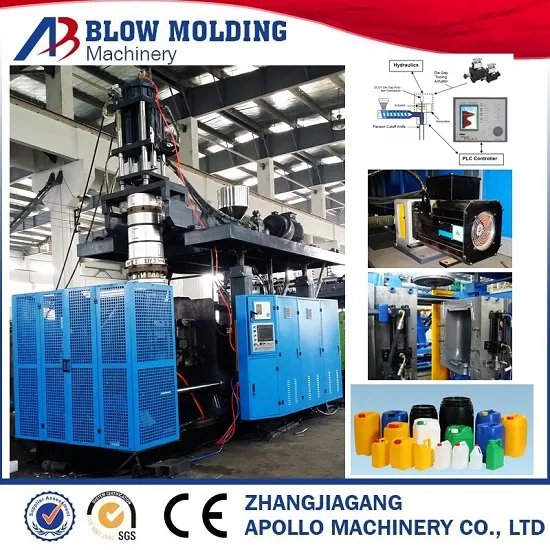

Automatic extrusion blow moulding machine:
ABLD80 full automatic blow molding machine is suitable for various kinds of plastic bottles in all shapes from 13L to 50L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years.
The machine looks neat and nice
Perfect function with economic investment.
The main technical parameter of the machine: | Name | Units | ABLD80 |
| Max.product volume | L | 30 |
| Dry cycle | PC/H | 600 |
| Screw diameter | MM | 80 |
| Screw L/D ratio | L/D | 25 |
| Screw drive power | KW | 37 |
| Screw heating capacity | KW | 16 |
| No. of heating zone | ZONE | 4 |
| Output of HDPE | KG/H | 120 |
| Oil pump drive power | KW | 15 |
| Clamping force | KN | 210 |
| Max.size of mold | MM | 700×900 |
| Material storage | L | 4.4 |
| Template size | MM | 800×800 |
| Mold stroke | MM | 350-900 |
| Max. die diameter | MM | 280 |
| Die heating power | KW | 15 |
| Die heating few segments | ZONE | 4 |
| Blowing pressure | MPA | 0.8 |
| Air volume | M3/MIN | 0.8 |
| Cooling water pressure | MPA | 0.3 |
| Water consumption | L/MIN | 60 |
| Size of machine | L×W×H | 4.4×2.6×3.8 |
| Weight of machine | TON | 11 |
The component of the machine:
