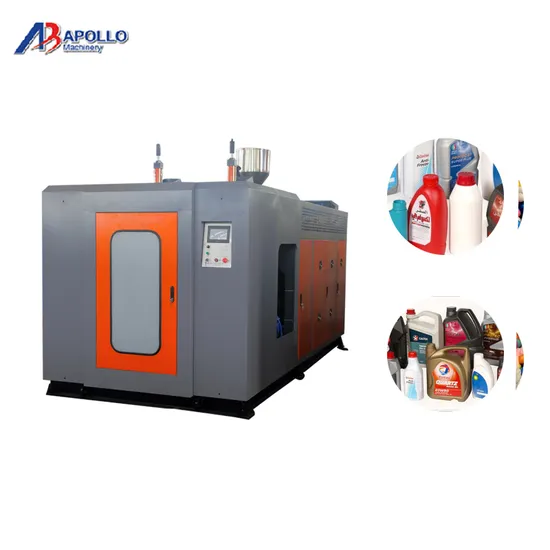

250ml Milk Bottle Plastic Making Machine

Name: 250ml Milk Bottle Plastic Making Machine
Rating: 5.0 (45 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB65II

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Color

Customized

Station

Double

Die Head

1/2/3

Application

Plastic Products

Voltage

Customized

Transport Package

Suitable for Sea Transport

Specification

3.9*2.2. *2.6

Trademark

Apollo

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

8477301000

Production Capacity

500~600PCS/H

Product Description

Main technical parameter:

Name	Units	ABLB65II
Max.product volume	L	4
Dry cycle	PC/H	800×2
Screw diameter	MM	65
Screw L/D ratio	L/D	24
Screw drive power	KW	18.5
Screw heating capacity	KW	5.7
No. of heating zone	ZONE	3
Output of HDPE	KG/H	80
Oil pump drive power	KW	5.5
Clamping force	KN	45
Max.size of mold	MM	380×350
Template size	MM	290×320
Mold stroke	MM	150-510
Max. die diameter	MM	170
Blowing pressure	MPA	0.6
Air volume	M³/MIN	0.7
Cooling water pressure	MPA	0.3
Water consumption	L/MIN	65
Size of machine	L×W×H	3.9×2.2×2.6
Weight of machine	TON	6.5

The feature of the machine:

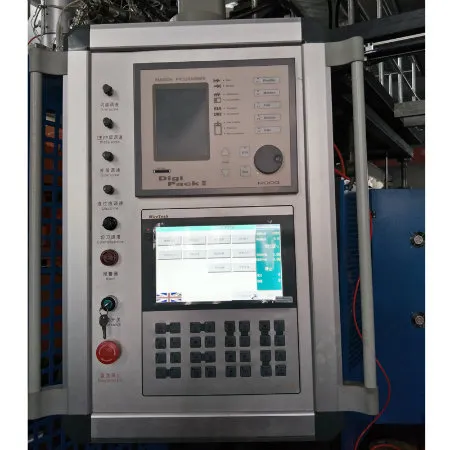

Electrical control system: It is controlled by imported PLC and man-machine interface ( in Chinese or English ) and operated by color touch screen. All process setting, changing, searching, monitoring, and trouble diagnosis can be done on the touch screen. Non-contact working principle, the components are endurable.
Hydraulic system: It is controlled by proportional pressure and is provided with YUKEN hydraulic components, so it is consistent and reliable.
Plasticization system: Efficient plasticization twin-screw ensures suffient and even plasticization.
Speed regulating system: Frequency variable regulating + alloy steel hard finishing reducer steadily regulate speed with low noise, so they are ebdurable.
Clamping system and die shifting system: Die shifting and clamping are done by clamping mechanism with double straight line trail, so it has high accuracy, low resistence and high speed.

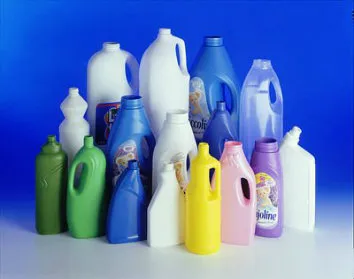

250ml Milk Bottle Plastic Making Machine

The component of the machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

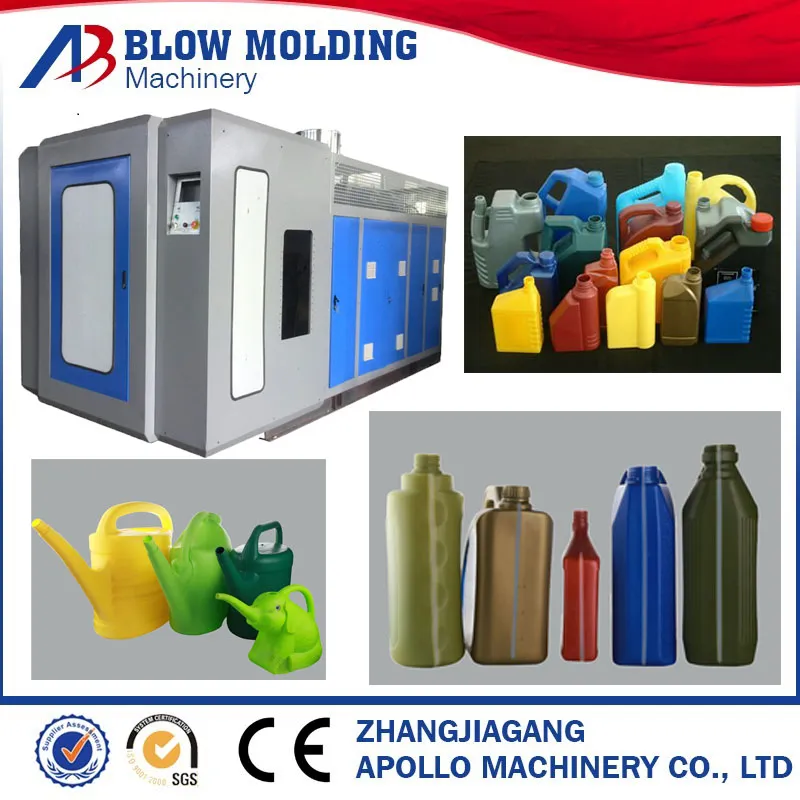

250ml Milk Bottle Plastic Making Machine
