Auto 20L 25 L 30 Liters Plastic Jerry Can Single Double Station Extrusion Moulding HDPE Bottle Jerrycan Blow Molding Machine

Auto 20L 25 L 30 Liters Plastic Jerry Can Single Double Station Extrusion Moulding HDPE Bottle Jerrycan Blow Molding Machine

Name: Auto 20L 25 L 30 Liters Plastic Jerry Can Single Double Station Extrusion Moulding HDPE Bottle Jerrycan Blow Molding Machine
Rating: 5.0 (16 reviews)

Customization:	Available
Warranty:	1 Year
Type:	Extrusion Blow Molding Machine

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLD80

Raw Material

HDPE

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Name

Abld80

Screw

80

Max Volume

30L

Cerification

CE

Transport Package

Plastic Film

Specification

ABLD80

Trademark

Apollo

Origin

China

HS Code

8477300000

Production Capacity

60~80 PCS/H

Product Description

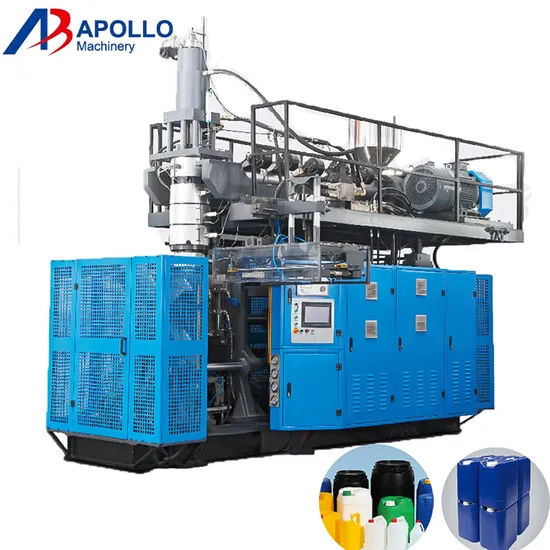

Auto 20L 25 L 30 Liters Plastic Jerry Can Single Double Station Extrusion Moulding HDPE Bottle Jerrycan Blow Molding Machine

Automatic HDPE Jerry Cans making machine energy saving type
Extrusion blow moulding machine
Jerry cans blow moulding machine
Model No.: ABLD80(single station single die head)
ABLD80 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 60L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 30L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.

Main parts of Machine Picture Explanation
Auto 20L 25 L 30 Liters Plastic Jerry Can Single Double Station Extrusion Moulding HDPE Bottle Jerrycan Blow Molding Machine

This part is the full electric components of the machine:

Max. Product volume	30 liters
Output capacity	80~120pc/h
Screw diameter	80 mm
Screw L/D ratio	25 L/D
Screw drive power	30 KW
Screw heating capacity	16 KW
No.of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	22 KW
Clamping force	210 KN
Max.size of mold	550X650mm
Mold stroke	350-780mm
Max.die diameter	280mm
Die heating power	5.3 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	60 L/MIN

Auto 20L 25 L 30 Liters Plastic Jerry Can Single Double Station Extrusion Moulding HDPE Bottle Jerrycan Blow Molding Machine

Auto 20L 25 L 30 Liters Plastic Jerry Can Single Double Station Extrusion Moulding HDPE Bottle Jerrycan Blow Molding Machine
