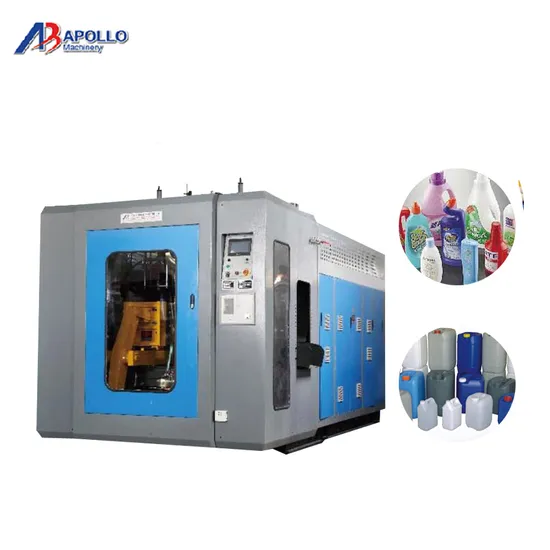

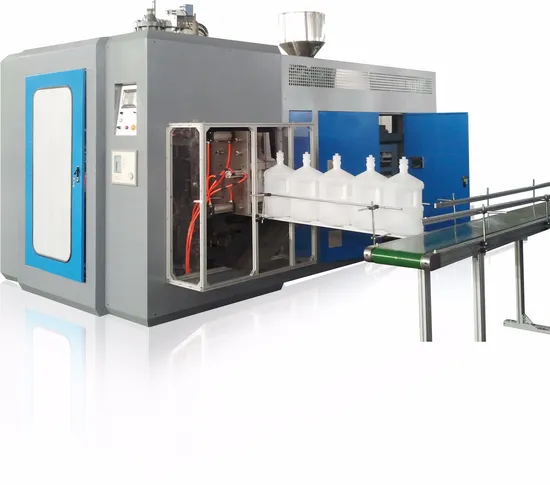

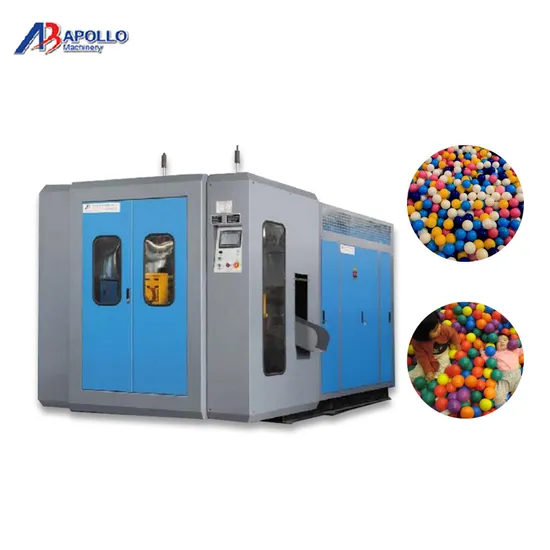

HDPE/LDPE /PP Bottle Extrusion Blow Molding Machine

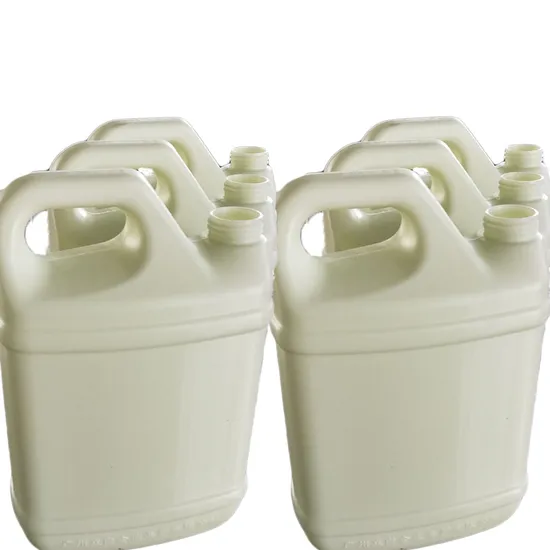

Automatic extrusion blow molding machine: ABLB90 blow molding machine is suitable for producing all kinds of plastic containers and bottles in all shapes from 5L to 18L. Adopt advanced PLC control system and a simple panel. PLC control system has counting function and time control precision to 0.1 second. Special fan design for the cooling system in the heating channel to keep the oven with constant temperature and ensure the plastic can be heated evenly.
Perfect design, guaranteed quality with economic investment.
Easy to operate and maintain, operated by one person, no need professional training.
If you need further info., don't hesitate to contact us.
Main technical parameter Max. Product volume: 20 liters
Dry cycle: 450PC/h
Screw diameter: 90mm
Screw L/D ratio: 25 L/D
Screw drive power: 37 KW
Screw heating capacity: 18 KW
No. Of heating zone: 4 zones
Output of HDPE: 130 KG/H
Oil pump drive power: 30 KW
Clamping force: 260 KN
Max. Size of mold: 450-1000mm
Mold stroke: 700X950mm
Max. Die diameter: 340mm
Die heating power: 7.6 KW
Die heating segments: 4 zones
Blowing pressure: 0.8mpa
Air volume: 1.0 M³ /MIN
Cooling water pressure: 0.3mpa
Water consumption: 90 L/MIN
Technical Parameters: ( ABLB90 ) The technical parameter of the machine:(ABLB90) | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
