| Customization: | Available |
|---|---|
| Warranty: | 12 Months |
| Type: | Extrusion Blow Molding Machine |
| Quantity: | |
|---|---|

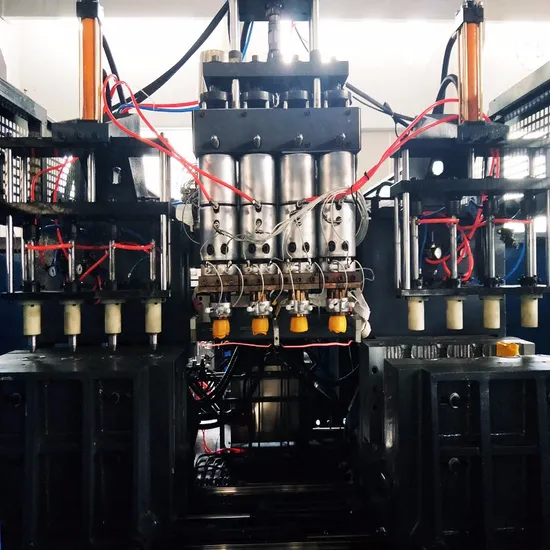

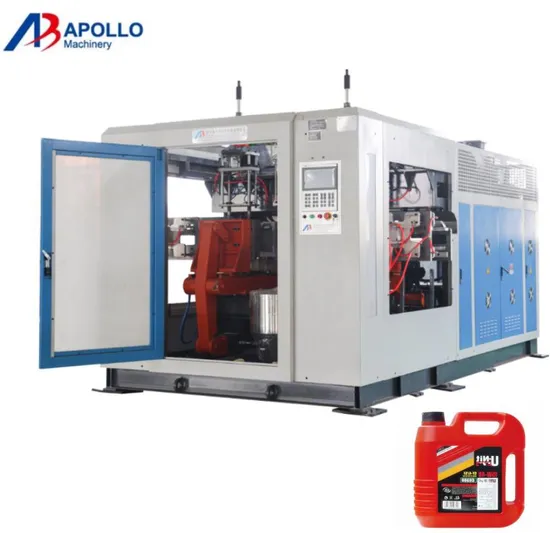

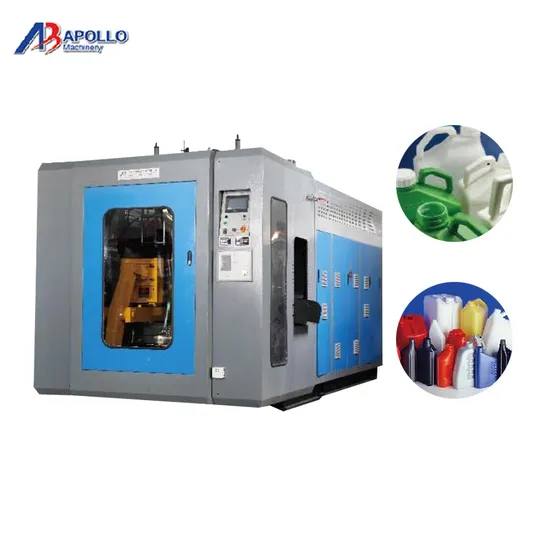

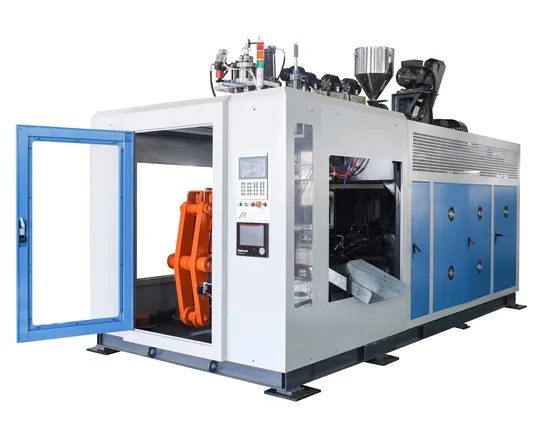

Extrusion type blow moulding machine
ABLB65II single station single die head
1.PE PPsea balls plastic bottle making machine
2.European technology and imported spare parts
3.Easy to operate and maintain
4.CE proved
Technical Parameters: ( ABLB65II)
| Max. Product volume | 4liters |
| Screw diameter | 65mm |
| Screw L/D ratio | 24L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 5.7 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80KG/H |
| Oil pump drive power | 5.5 KW |
| Clamping force | 45KN |
| Max.size of mold | 320 X 360mm |
| Mold stroke | 148-508mm |
| Max.die diameter | 140mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.7 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 65L/MIN |
| Size of Machine | 3.0x2x2.7m |
| Weight of machine | 6.5 ton |
Extrusion type blow moulding machine
ABLB65II single station single die head
1.PE PPsea balls plastic bottle making machine
2.European technology and imported spare parts
3.Easy to operate and maintain
4.CE proved
Technical Parameters: ( ABLB65II)
| Max. Product volume | 4liters |
| Screw diameter | 65mm |
| Screw L/D ratio | 24L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 5.7 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80KG/H |
| Oil pump drive power | 5.5 KW |
| Clamping force | 45KN |
| Max.size of mold | 320 X 360mm |
| Mold stroke | 148-508mm |
| Max.die diameter | 140mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.7 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 65L/MIN |
| Size of Machine | 3.0x2x2.7m |
| Weight of machine | 6.5 ton |
