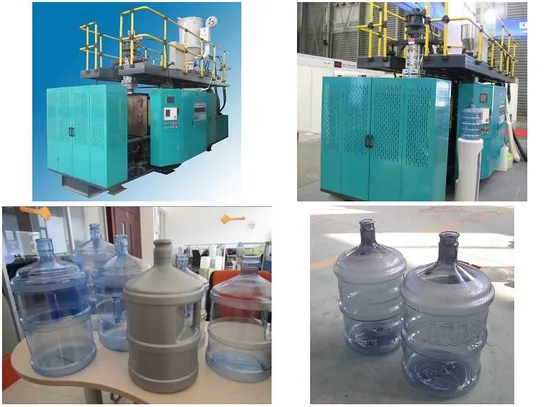

Product: 25L PC bottle
Max volume of this machine: 25L
Power supply: 380/220V 50/60 Hz Tri-phase
Output capacity: 60~90 PCS/h
Die head number: 1
Full automatic or not: Full auto
Suitable raw material: PC
Main techinal parameter: | Name | Units | ABLB82 PC |
| Max.product volume | L | 25 |
| Dry cycle | PC/H | 360 |
| Screw diameter | MM | 82 |
| Screw L/D ratio | L/D | 25/30 |
| Rotate speed | RPM | 10-80 |
| Screw heating capacity | KW | 30 |
| No. of heating zone | Z | 5 |
| Output of HDPE | KG/H | 160(PC) |
| Oil pump drive power | KW | 45×2 |
| Clamping force | KN | 220 |
| Max.size of mold | MM | 700×800 |
| Template size | MM | 800×800 |
| Die head heating power | KM | 8.7 |
| Total power consumption | KM | 83 |
| Blowing pressure | KG/CMZ | 8 |
| Air volume | M3/MIN | 0.8 |
| Cooling water temperature | ºC | 5-10ºC |
| Average power consumption | KW | 42 |
| Size of machine | L×W×H | 5.6×2.7×4.5 |
| Weight of machine | TON | 11.8 |
The main components of the machine:
| Electronic Parts | |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
