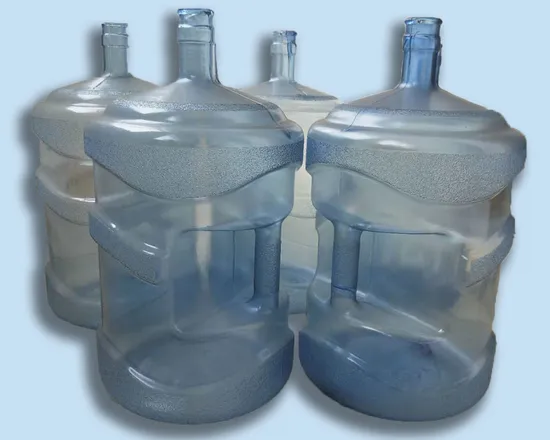

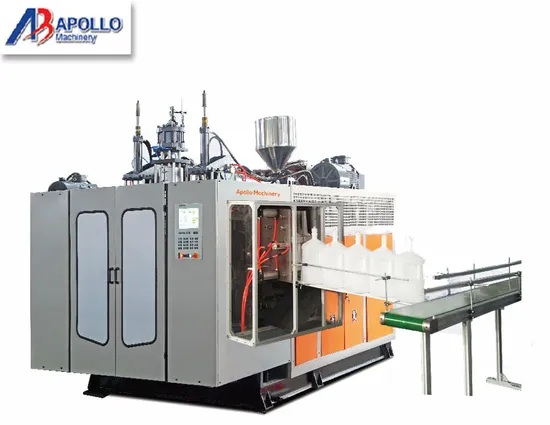

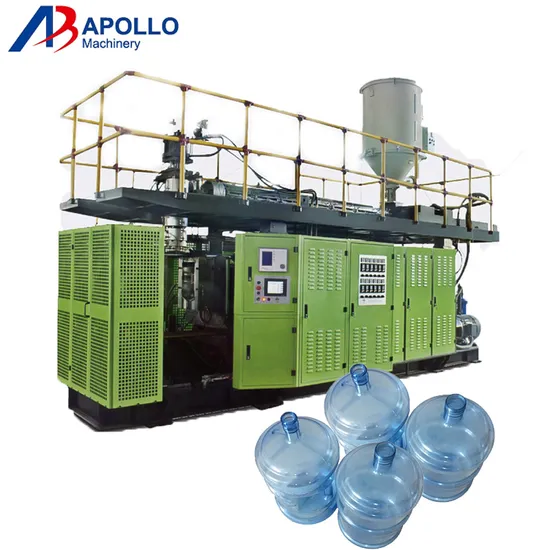

ABLB 82PC blow molding machine is suitable to produce 5 gallon PC bottles and containers in all shapes. We also have CE and ISO9001 certificate for you and offer engineer to your country to help you set up the machine. High quality assurance will be provided for you.
Equipped with special designed material storage
Silencer and oil system are used to reduce vibration and lubricate
The machine can be operated in step-by-step mode and also semi-auto mode.

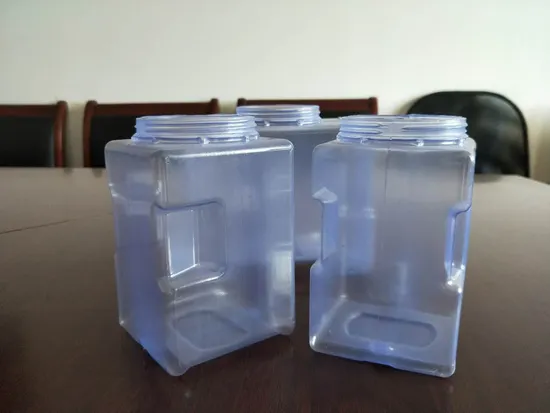

Wide-mouth and irregular shape also can be produced in this machine.
For more information. About this machine, don't hesitate to contact us.
The technical parameter: | Max. product volume | 5 gallon |
| Output capacity | 90 pcs/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 30 KW |
| Screw heating capacity | 16KW |
| No. of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 22 KW |
| Clamping force | 210 KN |
| Max. size of mold | 350-780mm |
| Mold stroke | 550x650mm |
| Max. die diameter | 280mm |
| Die heating power | 5.3 KW |
| Die heating segements | 4 zones |
| Blowing pressure | 0.8 mpa |
| Air volume | 0.8 M^3/MIN |
The component of the machine: | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
