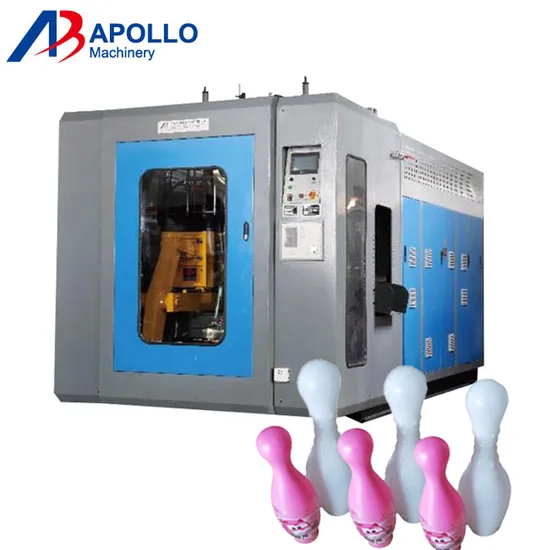

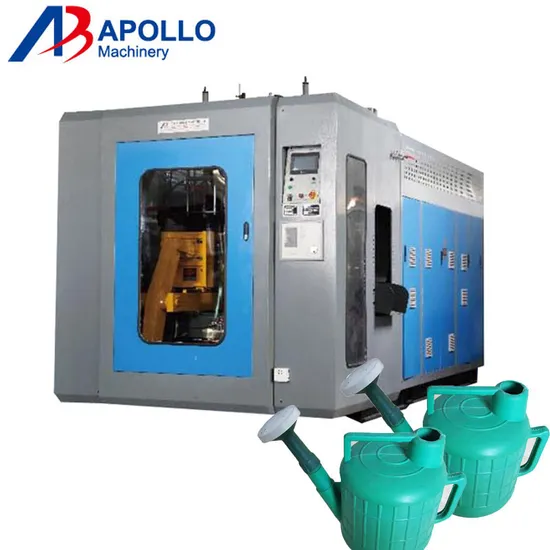

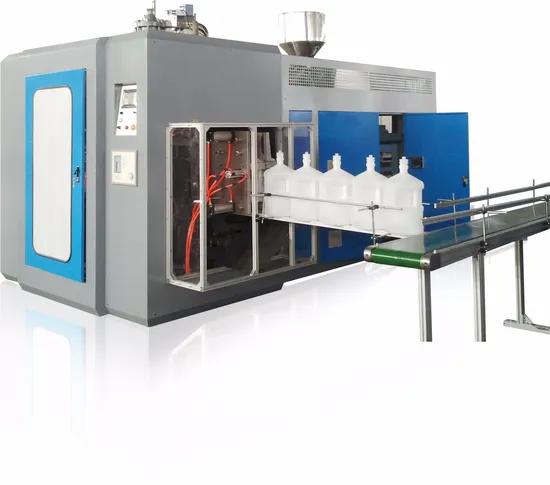

20L HDPE/LDPE /Pet /PP Bottle Extrusion Blow Molding Machine
Product Description

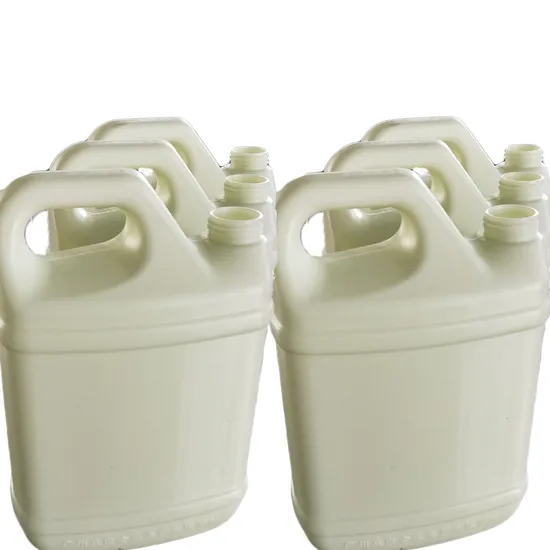

ABLB90 automatic blow molding machine machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Double station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
| Max. Product volume | 20 liters |
| Output capacity | 200pc/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 37KW |
| Screw heating capacity | 18 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 130KG/H |
| Oil pump drive power | 11KW |
| Clamping force | 110KN |
| Max.size of mold | 530X550mm |
| Mold stroke | 180-680mm |
| Max.die diameter | 200mm |
| Blowing pressure | 0.8 mpa |
| Air Volume | 1 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 90 L/MIN |
| Size of Machine | 4.2x3x3.2m |
| Weight of machine | 11ton |
