China Servo Motor Save Energy Plastic Product Blow Molding Making Machine

Name: China Servo Motor Save Energy Plastic Product Blow Molding Making Machine
Rating: 5.0 (27 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLD 80

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Application

Bottle

Max. Product Volume

15L

Screw Diameter

80mm

Screw Drive Power

45kw

Oil Pump Drive Power

15kw

Clamping Force

320kn

Max.Size of Mold

800*1200mm

Template Size

750*80mm

Transport Package

Film Packing

Specification

CE/SGS

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

8477301000

Production Capacity

200 PCS/H

Product Description

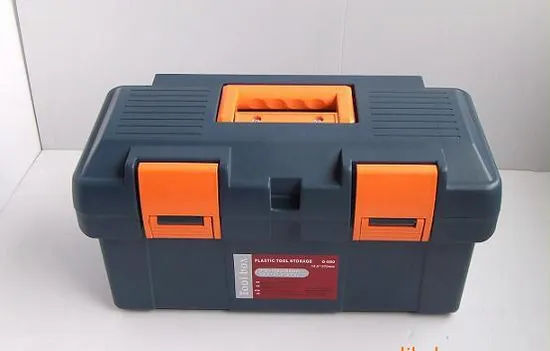

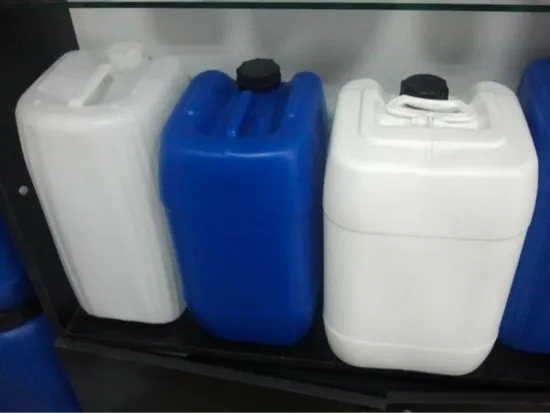

ABLD80 4 gallon bottle blow molding machine was specially designed for making plastic water gallons, lubricant oil bottles, tool boxes, plastic drums, and other plastic containers not over 20L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Double station single die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Full automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

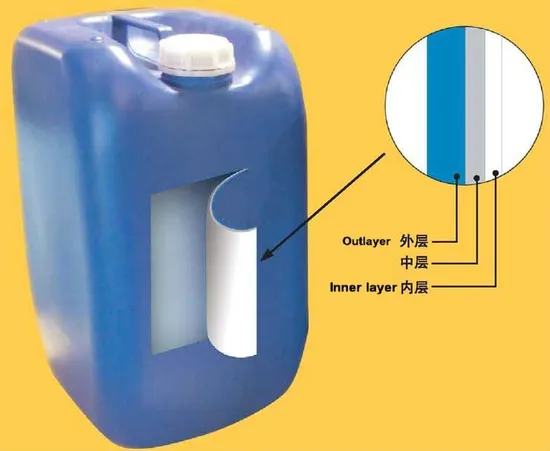

(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
(8)Special screw cut device available

Max. Product volume	300 liters
Out put capacity	2160~2400pc/day
Screw diameter	80mm
Screw L/D ratio	25L/D
Screw drive power	30KW
Screw heating capacity	16KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	15KW
Clamping force	210KN
Max.size of mold	240-660mm
Mold stroke	600 X 800mm
Max.die diameter	280mm
Blowing pressure	0.8 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	60 L/MIN
Size of Machine	4.2x3x3.1m
Weight of machine	11ton
