China Various Plastic Jerry Can Making Machine Blow Molding Machine

Customization: Available
After-sales Service: One Year
Warranty: One Year
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Overview

Basic Info.

Model NO.
ABLD120
Plastic Processed
PE
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Color
Customer Choose
Keywords
Blow Molding Machine
Max Volum
160L
Name
Abld120
Transport Package
Film Packing
Specification
ISO9001
Trademark
APOLLO
Origin
China
HS Code
84771010
Production Capacity
18~25PCS/H

Product Description

Company Profile



China Various Plastic Jerry Can Making Machine Blow Molding Machine

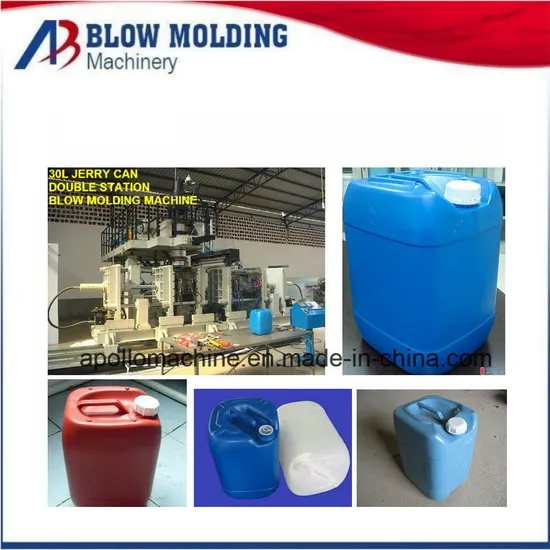

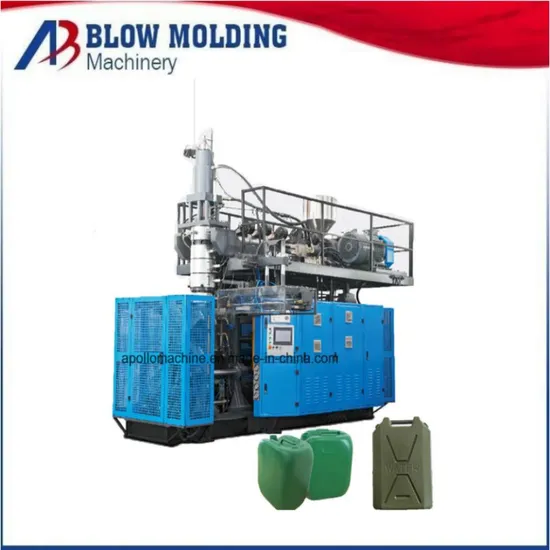

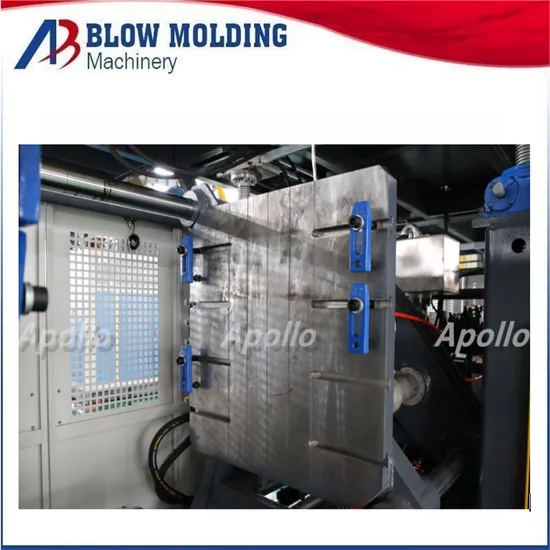

Detailed Photos



China Various Plastic Jerry Can Making Machine Blow Molding Machine
China Various Plastic Jerry Can Making Machine Blow Molding Machine
China Various Plastic Jerry Can Making Machine Blow Molding Machine

Product Description

The features of this machine:

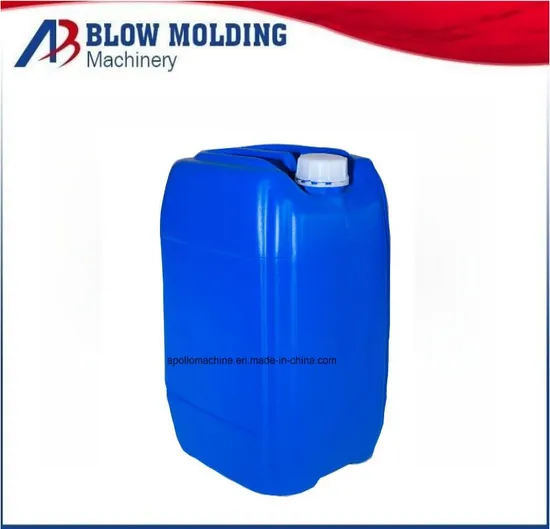

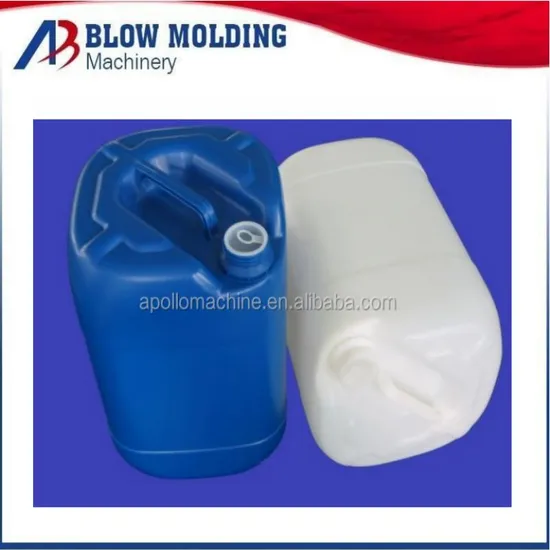

(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.

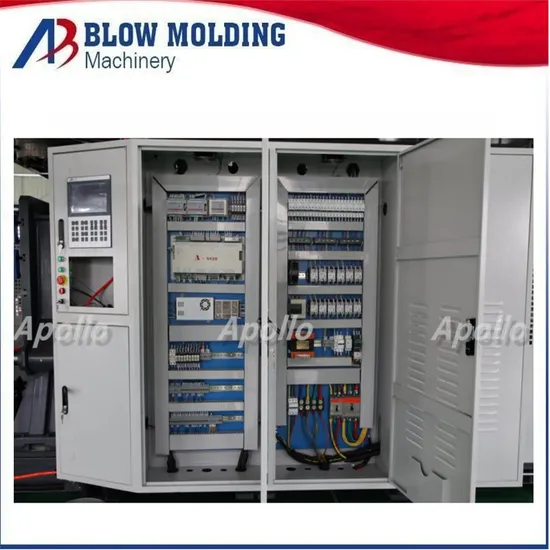

(7)Auto lubricant system controlled by PLC.

Product Parameters


Max. Product volume 250 liters
Output capacities 18~25 pcs/h
Screw diameter 120mm
Screw L/D ratio 30 L/D
Screw drive power 100 KW
Screw heating capacity 40 KW
No.of heating zone 5 zones
Output of HDPE 440 KG/H
Oil pump drive power 55 KW
Clamping force 1000 KN
Max.size of mold 1000X1500mm
Mold stroke 600-1500mm
Max.die diameter 520mm
Die heating power 52 KW
Die heating segments 5 zones
Blowing pressure 0.8mpa
Air volume 1.6 M³/MIN
Cooling water pressure 0.3mpa
Water consumption 180 L/MIN

Certifications

China Various Plastic Jerry Can Making Machine Blow Molding Machine

FAQ

China Various Plastic Jerry Can Making Machine Blow Molding Machine
China Various Plastic Jerry Can Making Machine Blow Molding Machine



1. Q: -Can the machine customized only for my products?
  A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure  special design and brand of parts special request.

2. Q: -How about the molds ?
  A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various  for optional.

3. Q: -What is the business item for this project ?
  A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed  by buyer and APOLLO .
        b. Port of Loading: SHANGHAI, CHINA.
        c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
        d. Container needed: One 20GP container.
