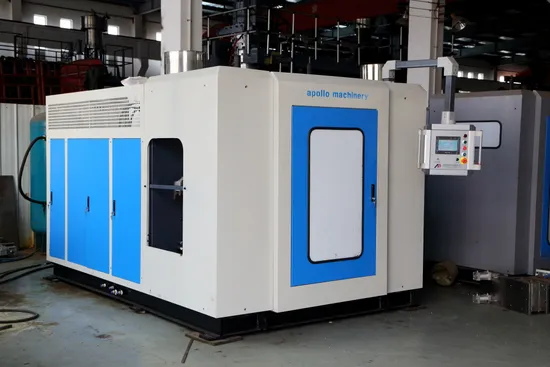

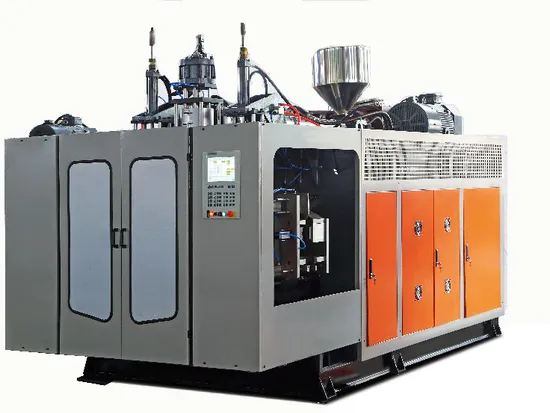

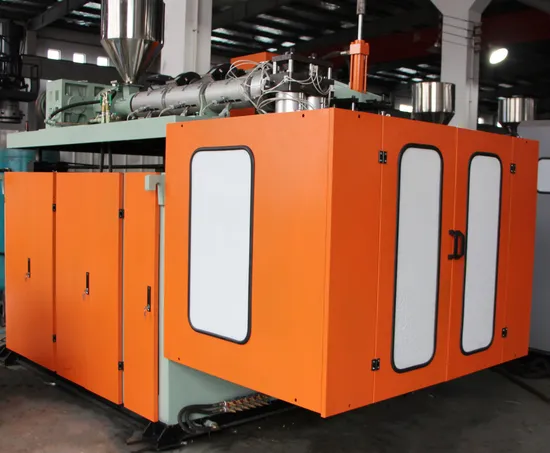

Plastic Jerry Can Full Automatic Two-Stage Customized Extrusion Blow Molding Machine
ABLB75II Product: 8L bottle
Max volume of this machine: 8L
Power supply: 380/220V 50/60 Hz Tri-phase
Output capacity: 60~90 PCS/h
Die head number: 2
Full automatic or not: Full auto
Suitable raw material: HDPE
Main techinal parameter: | Name | Units | ABLB75II |
| Max.product volume | L | 8 |
| Dry cycle | PC/H | 800*2 |
| Screw diameter | MM | 75 |
| Screw L/D ratio | L/D | 24 |
| Screw drive power | KW | 22 |
| Screw heating capacity | KW | 7 |
| No. of heating zone | ZONE | 4 |
| Output of HDPE | KG/H | 100 |
| Oil pump drive power | KW | 7.5 |
| Clamping force | KN | 80 |
| Max.size of mold | MM | 400*420 |
| Template size | MM | 390*420 |
| Mold stroke | MM | 170-520 |
| Max. die diameter | MM | 170 |
| Blowing pressure | KG/CMZ | 0.6 |
| Air volume | M3/MIN | 0.8 |
| Cooling water pressure | MPA | 0.3 |
| Water consumption | L/MIN | 80 |
| Size of machine | L×W×H | 4.4*2.2*2.7 |
| Weight of machine | TON | 8 |
The main components of the machine:
| Electronic Parts | |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
