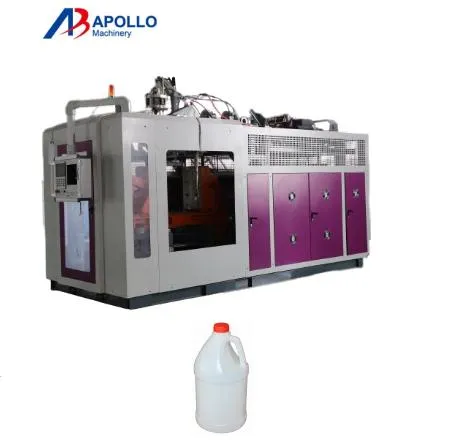

Automatic Blow Molding Machine for Making Plastic Bottles 3L 5L 8L

Automatic bottle making machine
Model No.:  ABLB75(Double station single die head)
ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.


Technical Parameters: ( ABLB75II)

Basic parameters Suitable material: PE.PP,PVC,PS,PETG,so on
Max volume: 5L
Output capacity: 180~200 pcs/h
Size: 3.8×2.3×2.5(M)
Weight: 4.8T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 75mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization: 100KG/H HDPE
Heating Zone: 3-4 Aluminum Heater Automatic heating
Heating power: 8KW/H
Extrusion MotorThree phase asynchronous motor (380V,50HZ) 22kw
Cooling Fan: 3-4zone         Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number: 1
Center distance of die heads/
Max die mouth/
Heating zone: 3-4   Stainless steel heating cycle
Heating power: 3~5KW

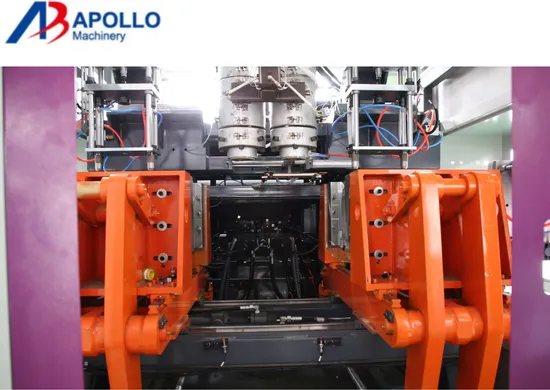

Clamping system Summarize
 High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force: 80KN
Template distance: 148~568mm
Max mould size: 400X450mm
Mould material: High grade 50# steel

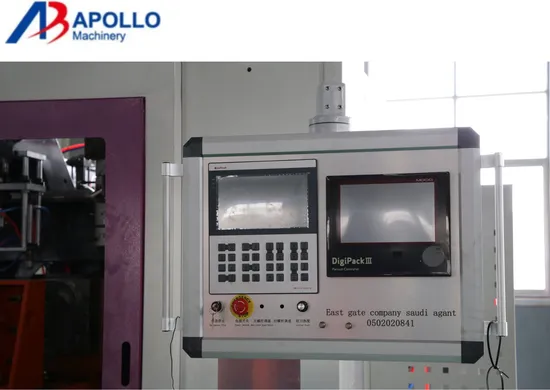

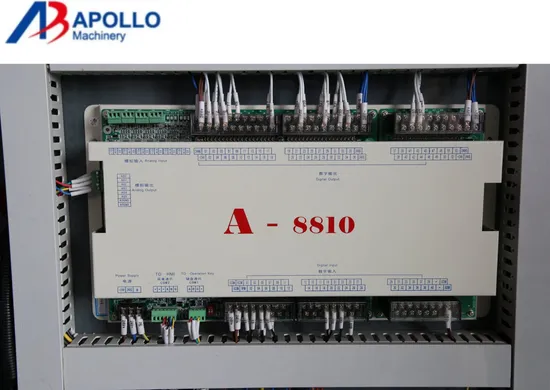

Electric system SummarizePLC+ touch screen(manmachine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)Japanese Mitsubishi PLC system
Operate interfaceTouch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V,50HZ) 7.5kw
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure: 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system SummarizeTaiwan AIRTAC pneumatic system
Air pressure: 0.8Mpa
Air displacement: 0.8M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow: 80L/min
Water pressure: 0.3-0.6MPa


The main components of the machine. ( ABLB75II )

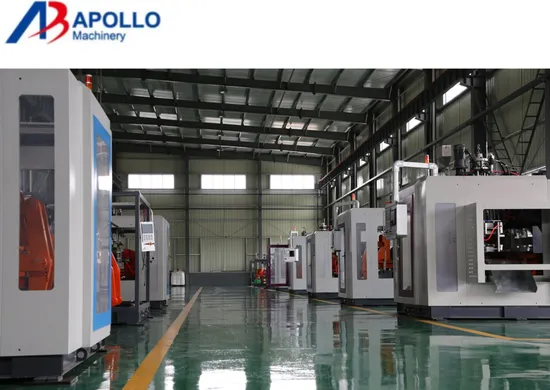

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's APOLLO's advantage?

APOLLO provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

APOLLO will be your reliable friend in China, and we will always do our best to give you max support!
