2L 4L 5L HDPE Plastic Lubricant Oil Bottle Production Line Single Double Station 75mm Screw Extrusion Blow Molding Machine

2L 4L 5L HDPE Plastic Lubricant Oil Bottle Production Line Single Double Station 75mm Screw Extrusion Blow Molding Machine

Name: 2L 4L 5L HDPE Plastic Lubricant Oil Bottle Production Line Single Double Station 75mm Screw Extrusion Blow Molding Machine
Rating: 5.0 (60 reviews)

Customization:	Available
Warranty:	One Year
Type:	Extrusion Blow Molding Machine

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB 75

Raw Material

HDPE

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Screw Diameter

75mm

Screw Drive Power

7.5kw

Screw Heating Capacity

7-8kw

Oil Pump Drive Power

7.5kw

Clamping Force

80kn

Max.Size of Mold

400*430mm

Template Size

380*420mm

Mold Stroke

170-520mm

Max.Die Diameter

170mm

Weight of Machine

7.5 Ton

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

847730100

Production Capacity

55-60 PCS/H

Product Description

2L 4L 5L HDPE Plastic Lubricant Oil Bottle Production Line Single Double Station 75mm Screw Extrusion Blow Molding Machine

HDPE Oil Barrel/ Drum blow molding Making Machinery (ABLB75)

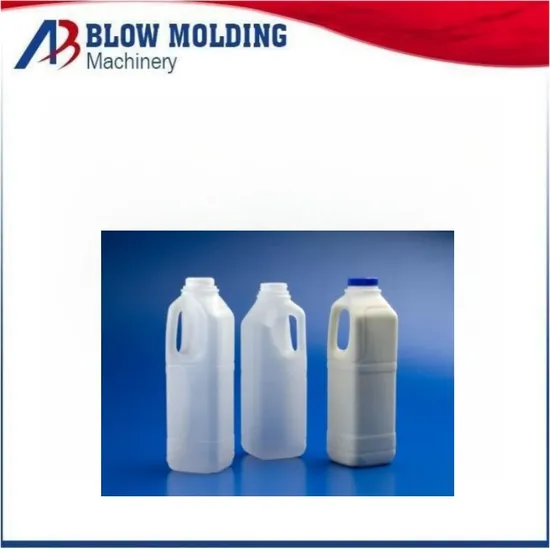

ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 25L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

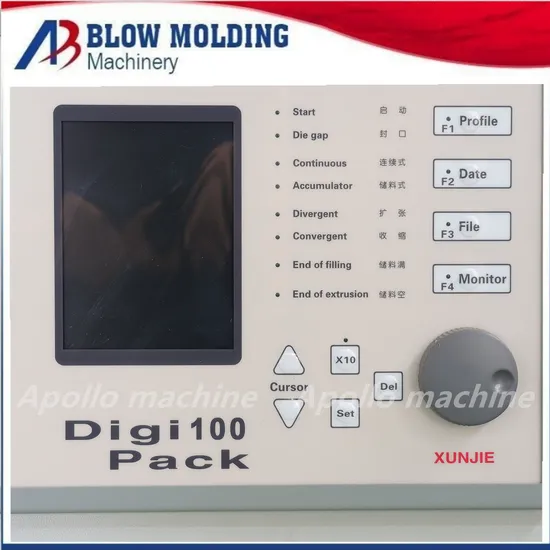

(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.

Max. Product volume	8 L
Out put capacity	*7502 pcs/h**
Screw diameter	75MM
Screw L/D ratio	24:1 L/D
Screw drive power	22 KW
Screw heating capacity	7-8 KW
No.of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	7.5 KW
Clamping force	80 KN
Max.size of mold	*400430 MM**
Mold stroke	170-520 MM
Max.die diameter	170 MM
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	4.2x2.2x2.7 m
Weight of machine	7.5 Ton
