| Customization: | Available |
|---|---|
| Warranty: | One Year |

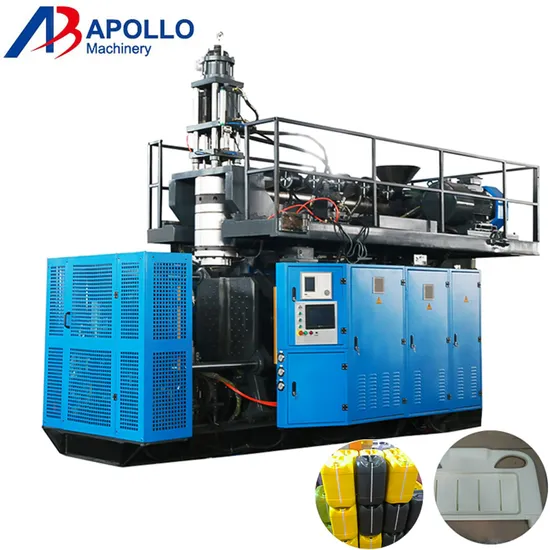

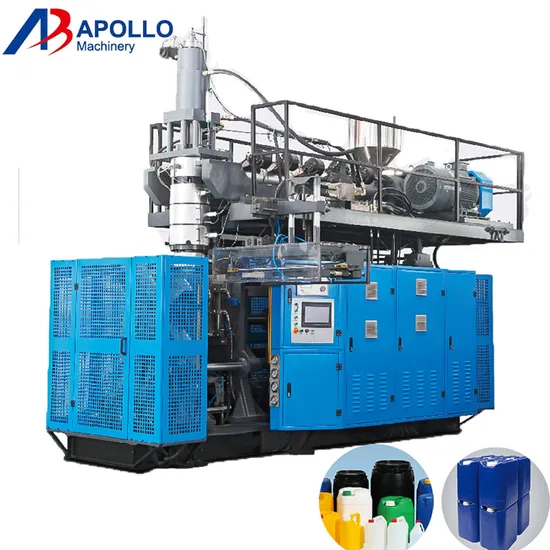

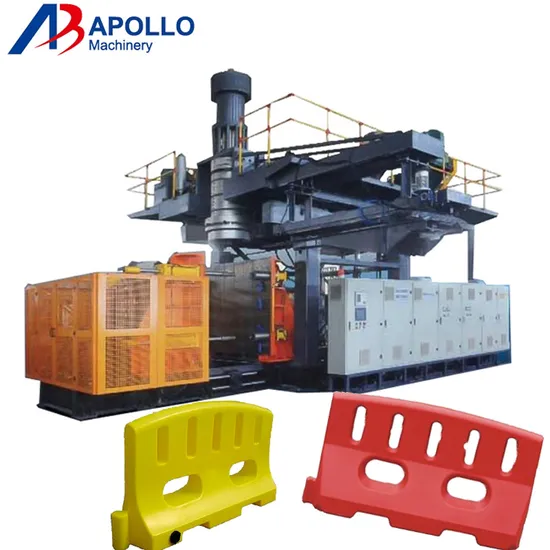

| Type: | Extrusion Blow Molding Machine |
| Quantity: | |
|---|---|
Suitable for:

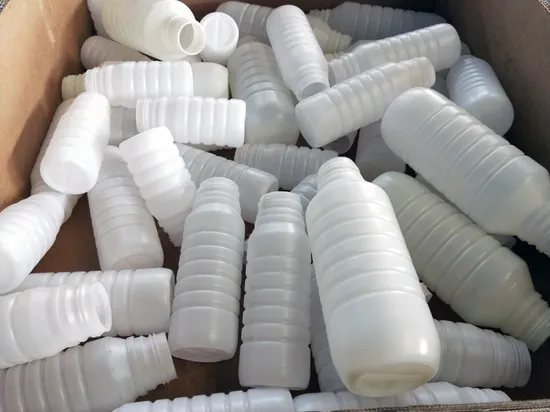

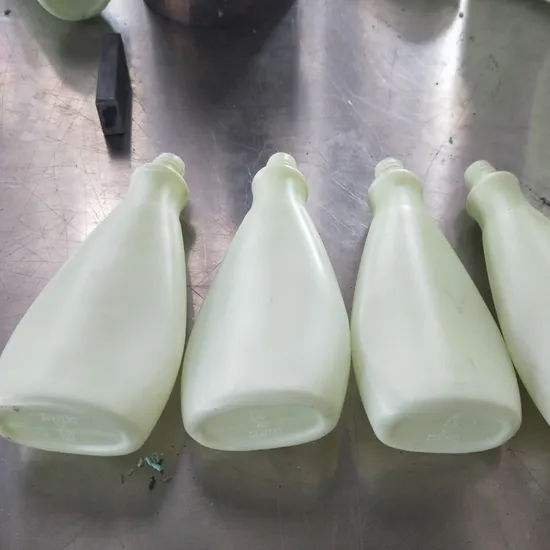

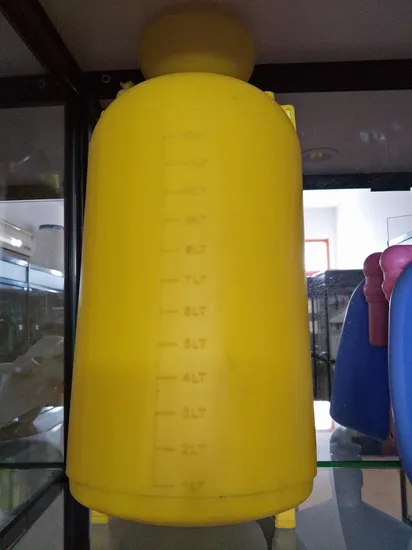

Detergents bottles, liquid soap bottles, shampoo cosmetic bottles, chemical bottles, food packaging jars,
jerry cans, oil bottles, milk bottles, pesticide bottles, kettles, water gallons, tanks, kettles, balls, toys ,daily
household products so on.
| Max container capacity | 5L |
| Machine dimension | 3 *1.9 *2.4M |
| Total weight | 3.5Ton |
| Clamping force | 68KN |
| Platen opening stroke | 150-500mm |
| Max mould size (W*H) | 350*370/238*600mm |
| Max drive | 32KW |
| Air pressure | 0.7Mpa |
| Air consumption | 0.9M3/min |
| Fan power for screw | 0.14*3KW |
| Average energy consumption | 17KW |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
Suitable for:
Detergents bottles, liquid soap bottles, shampoo cosmetic bottles, chemical bottles, food packaging jars,
jerry cans, oil bottles, milk bottles, pesticide bottles, kettles, water gallons, tanks, kettles, balls, toys ,daily
household products so on.
| Max container capacity | 5L |
| Machine dimension | 3 *1.9 *2.4M |
| Total weight | 3.5Ton |
| Clamping force | 68KN |
| Platen opening stroke | 150-500mm |
| Max mould size (W*H) | 350*370/238*600mm |
| Max drive | 32KW |
| Air pressure | 0.7Mpa |
| Air consumption | 0.9M3/min |
| Fan power for screw | 0.14*3KW |
| Average energy consumption | 17KW |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
