Small Plastic Bottle Blow Moulding Machinery for China

Name: Small Plastic Bottle Blow Moulding Machinery for China
Rating: 5.0 (12 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB55

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Application

Bottle

Max.Product.Volume

3.5L

Blow Moulding Type

Extrusion Blow Moulding

Brand Name

Apollo

Power

30kw

Max Size of Mold

250*320

out Put HDPE

60kg/H

Screw Diameter

55

Blowing Pressure

0.6map

Weight of Macine

4.3t

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

84773000

Production Capacity

270PCS/H

Product Description

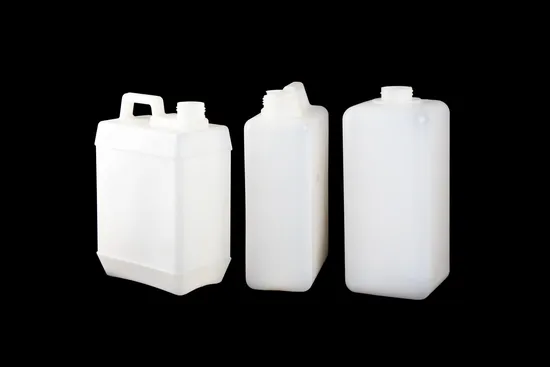

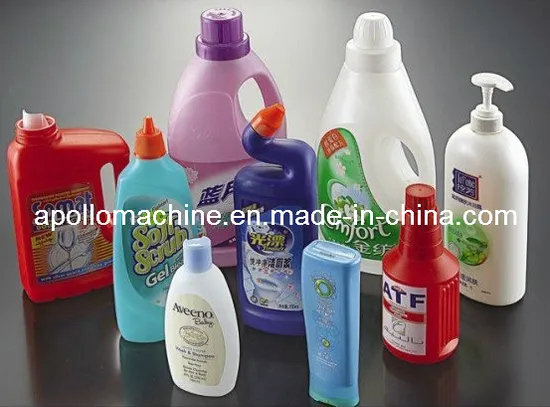

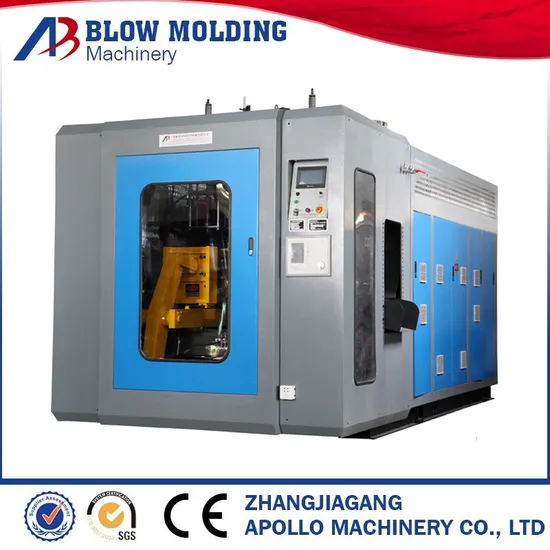

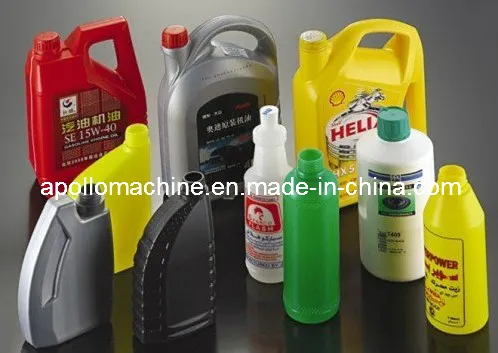

ABLB55 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 3.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

Max. Product volume	3.5L
Out put capacity	400~600pcs/h
Screw diameter	45mm
Screw L/D ratio	24:1 L/D
Screw drive power	10KW
Screw heating capacity	2.6KW
No.of heating zone	3 zones
Output of HDPE	35KG/H
Oil pump drive power	4.8KW
Clamping force	32KN
Max.size of mold	80-350mm
Mold stroke	250X 320mm
Max.die diameter	80mm
Blowing pressure	0.6mpa
Air Volume	0.4M³/MIN
Cooling water pressure	0.3mpa
Water consumption	30L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton
