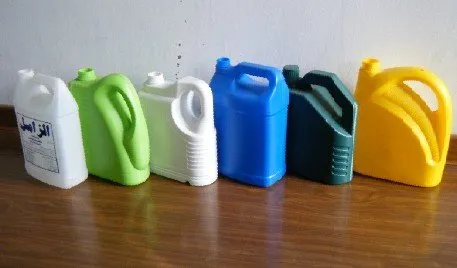

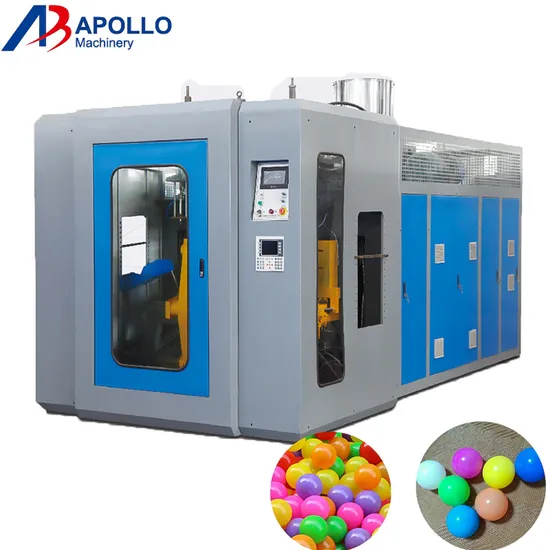

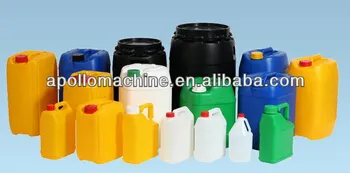

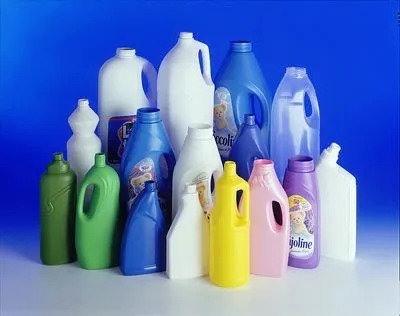

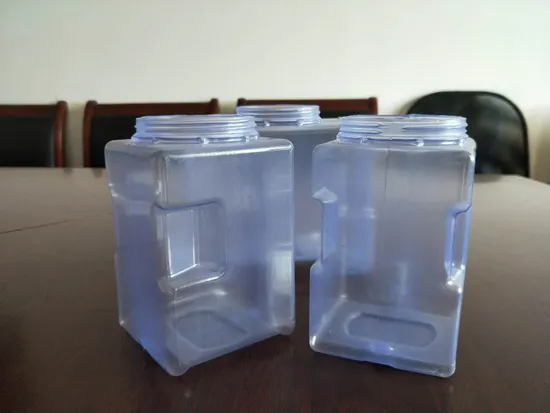

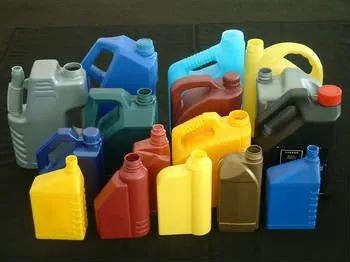

ABLB65 full automatic bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 5L.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station three die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
Technical parameter(ABLB65I) | Max. Product volume | 5 liters |
| Out put capacities | 150~180pc/h |
| Screw diameter | 65mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80 KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 65 KN |
| Max.size of mold | 300×370 mm |
| Mold stroke | 150-500 mm |
| Max.die diameter | 170 mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.6 M³/MIN |
| Cooling water pressure | 0.3 mpa |
| Water consumption | 50 L/MIN |
| Size of Machine | 3.9x2.0x2.6 m |
| Weight of machine | 5.5 ton |
The main component (ABLB65I)
