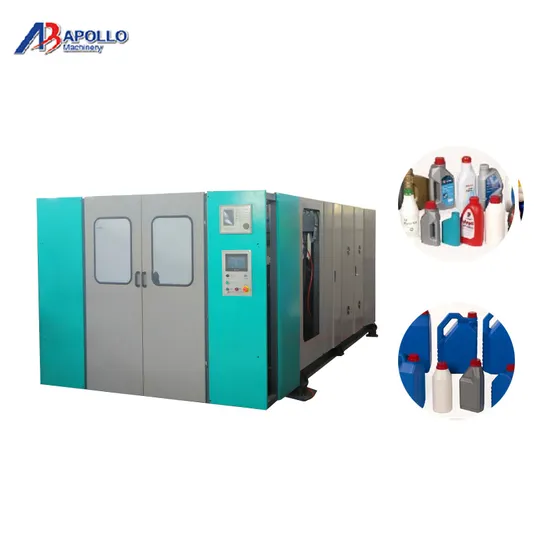

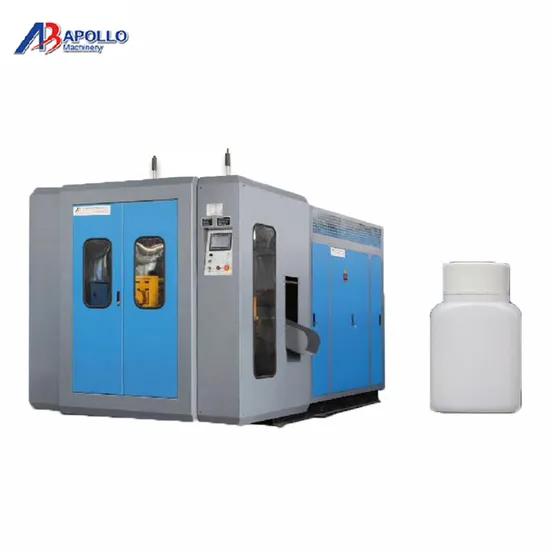

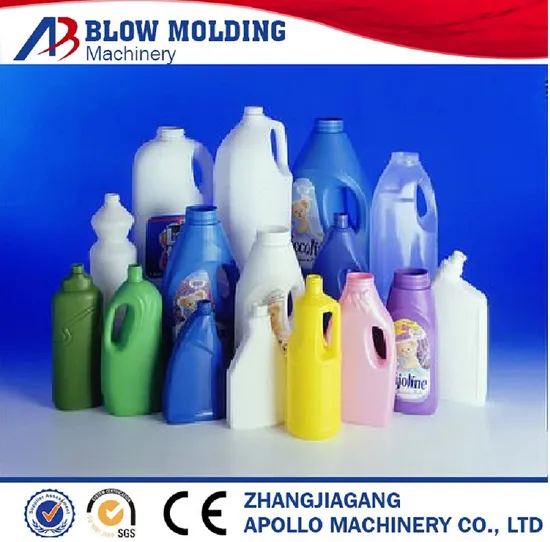

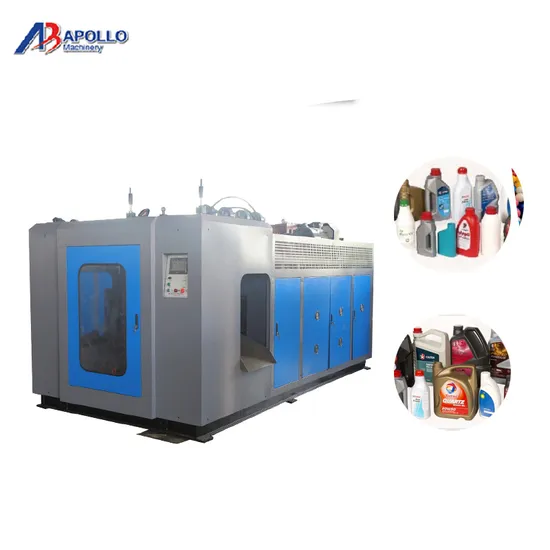

This type of machine is suitable to produce different shapes of plastic bottles from 100ml to 5L.
Adopt Mitsubishi PLC from Japan.
Contactor use Schneider from France.
Most of spareparts of hydraulic system and pneumatic system are imported from Japan, Korea, France and Taiwan, China to ensure the quality of the machine.
Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 5L
Output capacity 160~250 pcs/h
Size 3.8×2.2×2.4(M)
Weight 4.8T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 65mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization 85Kg/H HDPE
Heating Zone 3-4 Aluminum Heater Automatic heating
Heating power 8KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ)
Cooling Fan 3-4zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 1 or 2
Center distance of die heads 130~160mm
Max die mouth 140mm
Heating zone 3-4 Stainless steel heating cycle
Heating power 3~5KW
Clamping system Summarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 65KN
Template distance 145~568mm
Max mould size 290X320mm
Mould material High grade 50# steel
Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V,50HZ)
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6Mpa
Air displacement 0.6M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 60L/min
Water pressure 0.3-0.6MPa
