Customization: | Available |
---|---|
Type: | Extrusion Blow Molding Machine |
Raw Material: | PE |
Quantity: | |
---|---|
Company Profile
Certifications
Product Description
Automatic bottle making machine
Product Parameters
Max. Product volume | 8 L |
Out put capacity | 750*2 pcs/h |
Screw diameter | 75MM |
Screw L/D ratio | 24:1 L/D |
Screw drive power | 22 KW |
Screw heating capacity | 7-8 KW |
No.of heating zone | 4 zones |
Output of HDPE | 100 KG/H |
Oil pump drive power | 7.5 KW |
Clamping force | 80 KN |
Max.size of mold | 400*430 MM |
Mold stroke | 170-520 MM |
Max.die diameter | 170 MM |
Blowing pressure | 0.6 mpa |
Air Volume | 0.8 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 80 L/MIN |
Size of Machine | 4.2x2.2x2.7 m |
Weight of machine | 7.5 Ton |

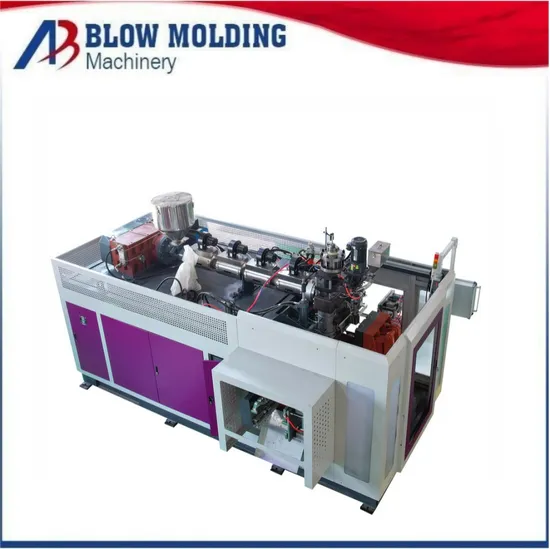

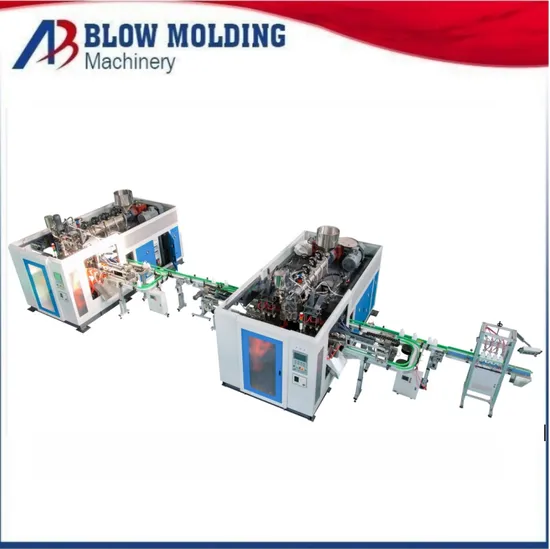

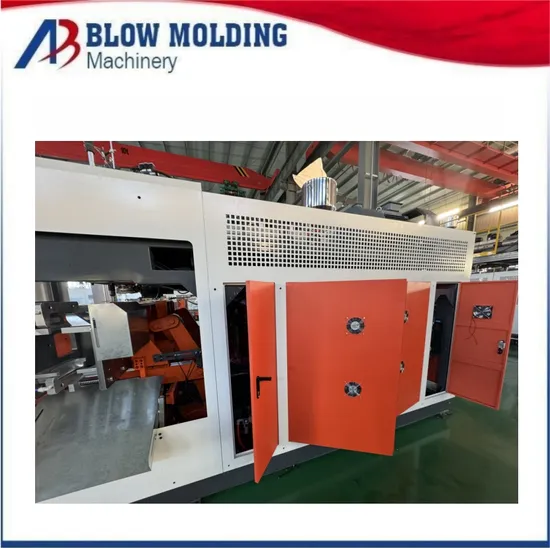

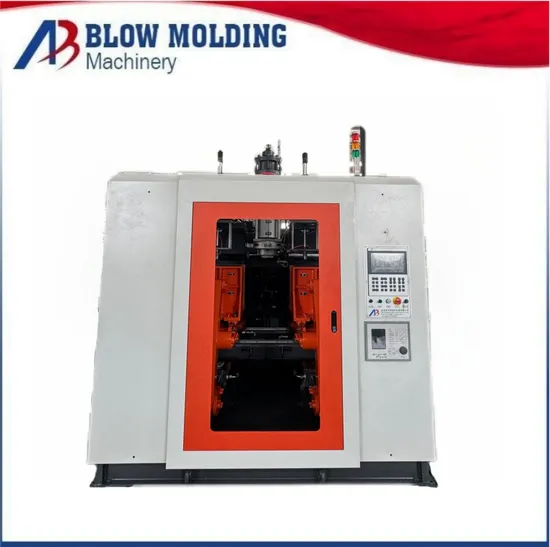

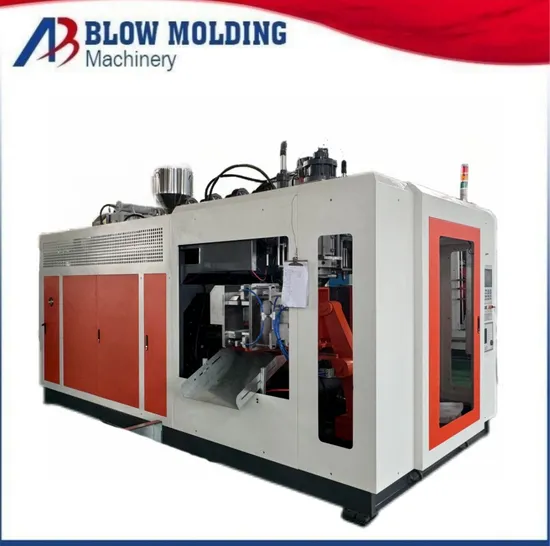

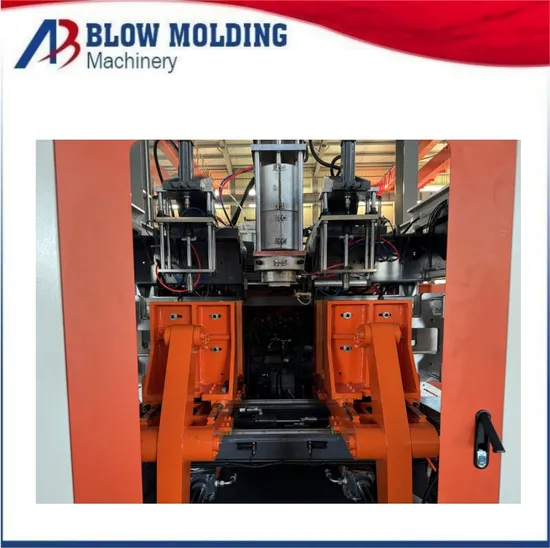

Detailed Photos
Our Advantages
After Sales Service
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.Company Profile
