High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 80KN
Template distance 148~568mm
Max mould size 400X450mm
Mould material High grade 50# steel

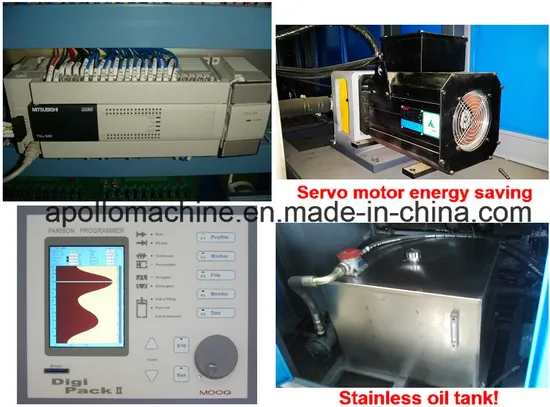

Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V,50HZ) 7.5kw
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.8Mpa
Air displacement 0.8M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 80L/min
Water pressure 0.3-0.6MPa
electronic parts
Name Trader
Micro computer control system Japanese MITSUBISHI
Temperature Controller Japanese MITSUBISHI
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor SIEMENS MOTOR
Power Source TAIWAN MEANWELL
Inverter DELTA
hydraulic parts
Name Trader
Oil pump TAIWAN HIGH-TECH
Valve JAPAN YUKEN
Oil pump and connection JAPAN YUKEN
Sealed part HALLITE
air control system
Name Trader
Cylinder AIRTAC
Air Valve AIRTAC
