| Customization: | Available |
|---|---|

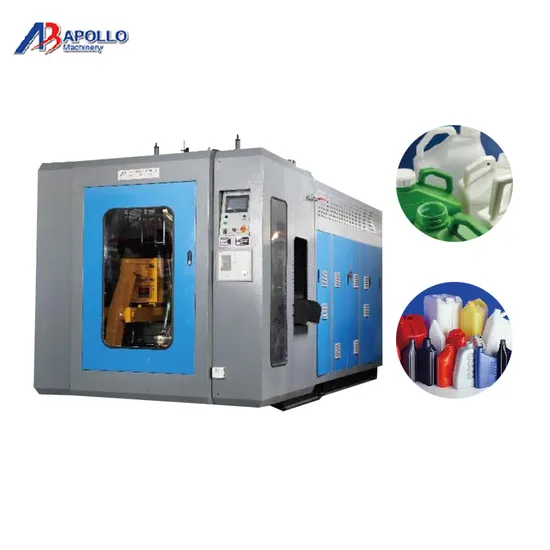

| Type: | Extrusion Blow Molding Machine |
| Raw Material: | HDPE |
| Quantity: | |
|---|---|
| electronic parts | |
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | Japanese MITSUBISHI |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWAN REGION MEANWELL |
Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
Name | Trader |
Oil pump | TAIWAN REGION HIGH-TECH |
Valve | JAPAN YUKEN |
Oil pump and connection | JAPAN YUKEN |
Sealed part | HALLITE |
| air control system | |
Name | Trader |
Cylinder | AIRTAC |
Air Valve | AIRTAC |
| Max. Product volume | 8 liters |
| Output capacity | 150~180 pc/h |
| Screw diameter | 75 mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 78 KN |
| Max.size of mold | 390×420 mm |
| Mold stroke | 170-520 mm |
| Max.die diameter | 170 mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3 mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 3.8x2.2x2.8m |
| Weight of machine | 8 ton |
