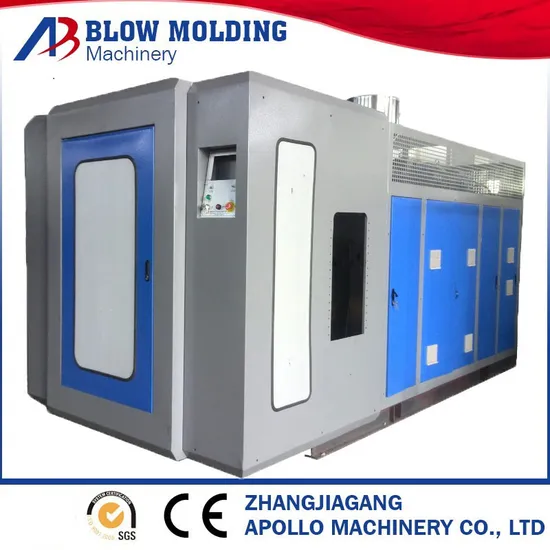

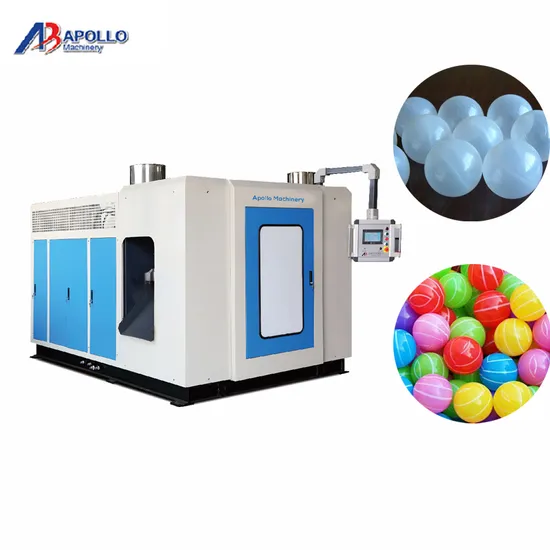

Automatic extrusion blow moulding machine:
ABLB75 full automatic blow molding machine is specialy design for the production of various plastic children toys in all shapes and widely materials. Mechanical-double-arm clamping system ensures mould being tightly closed under great pressure and high temperature.
Equipment with silencer and oil system to reduce the noise and friction.
Electricity saved, energy saved and speed more faster.
The max. Size for mold: 400x450x300(mm)
For more information about the machine, please don't hesitate to contact us.
Main technical parameter: Technical Parameters: ( ABLB75 ) | Max. Product volume | 8 liters |
| Output capacity | 120pcs/h |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 78KN |
| Max.size of mold | 188-600mm |
| Mold stroke | 400 X 450mm |
| Max.die diameter | 180mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.7 M ³ /MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 60 L/MIN |
| Size of Machine | 3.6x1.8x2.8m |
| Weight of machine | 6.3 ton |
The main components of the machine:( ABLB75 ) | electronic parts |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
If you have any other question, please feel free to contact me.
