Plastic Jerry Can 10 Liter Extrusion Blow Molding Machine 10L HDPE Bottle Making Machine

Plastic Jerry Can 10 Liter Extrusion Blow Molding Machine 10L HDPE Bottle Making Machine

Name: Plastic Jerry Can 10 Liter Extrusion Blow Molding Machine 10L HDPE Bottle Making Machine
Rating: 5.0 (40 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB90

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Station

Single or Double

Die Head

Single Head/Double Head/3 Head

Screw Diameter

90mm

Clamping System

Toggle Type

PLC

Mitsubishi or Siemens

Electricals

Schneider

Invertor

Taiwan Delta

Hydraulic

Japan Yuken

Relay

Japan Omron

Transport Package

Film Packaging

Specification

ABLB90

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

8477301000

Production Capacity

180~450PCS/H

Product Description

High quality blow molding machine 1L ~ 10L

ABLB90I

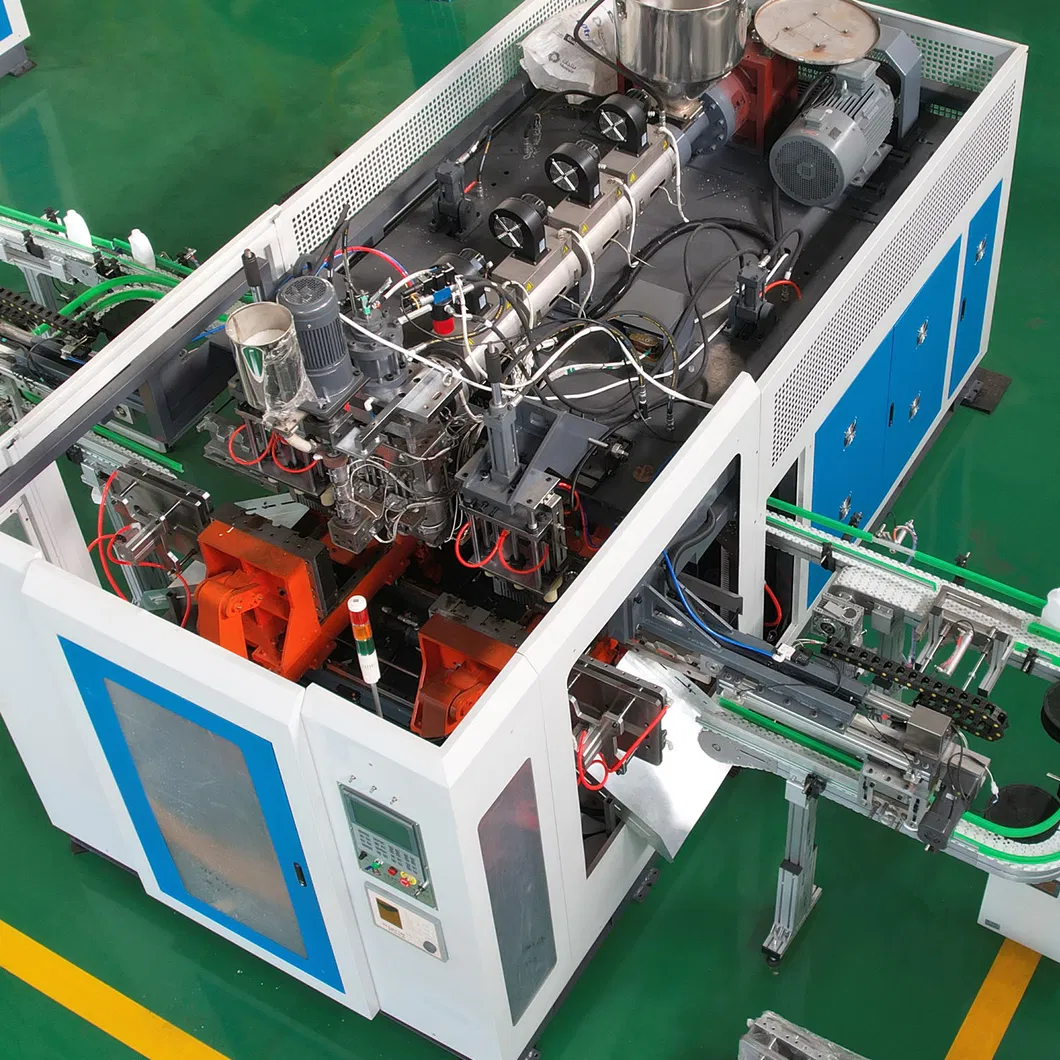

Plastic Jerry Can 10 Liter Extrusion Blow Molding Machine 10L HDPE Bottle Making Machine

ABLB75 II blow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles ,cosmetic bottles, and other plastic containers not over 16L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on, plastic containers and bottles in all shapes are available, the max.product volume is up to 16L.
(2)Double station single die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.

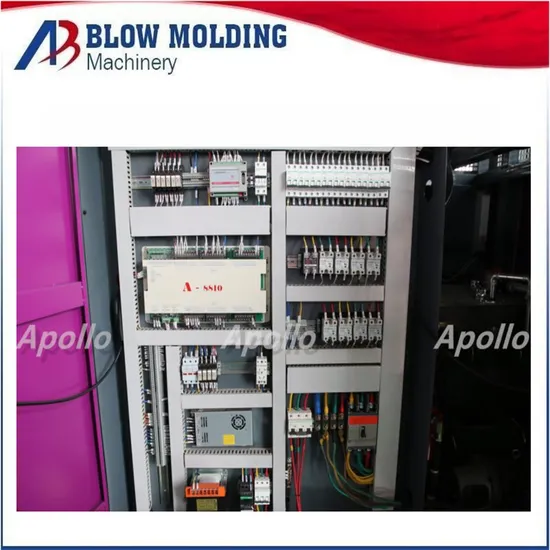

(7)Auto lubricant system controlled by PLC.

Max. Product Volume	16liters
Dry cycle	700 pc/h
Screw diameter	90 mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	10KW
No. of heating zone	4 zone
Output of HDPE	150 KG/H
Oil pump drive power	7.5 KW
Clamping force	80 KN
Template size	550*550 MM
Mold stroke	148-568 MM
Blowing pressure	0.6 MPA
Air volume	0.8m 3 /min
Cooling water pressure	0.3 MPA
Water consumption	80 L/MIN
Size of machine	4.3-2.3-2.2 L×W×H
Weight of machine	9ton
