All Kinds of Plastic Bottle Blowing Moulding Machine

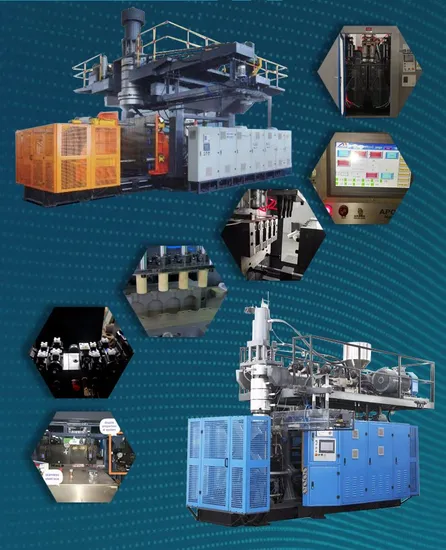

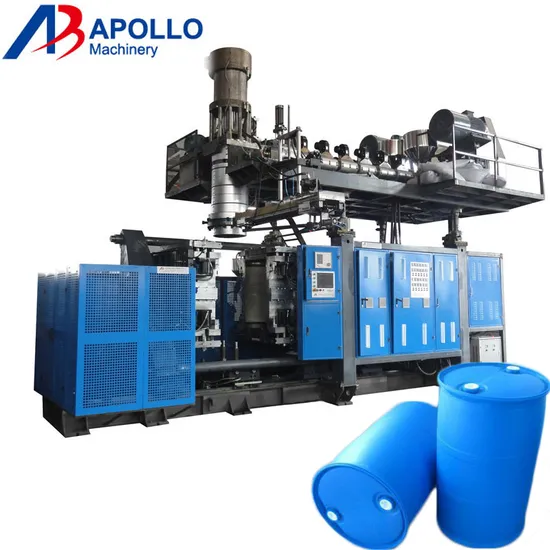

ABLD150Tanks Extrusion Blow Molding Machine is suitable for various kinds of plastic bottles in all shapes from 13L to 60L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years
The machine looks neat and nice
Perfect function with economic investment.
plastic blowing machine parameter : | MACHINE MODEL | | | ABLD150 |
| | | | |
| max container capacity | L | | 500 |
| machine dimension | M | | 9.1*3.6*5.6 |
| total weight | ton | | 45 |
| | | | |
| clamping force | kn | | 1500 |
| platen opoening stroke | mm | | 600-1400 |
| platen size | mm | | 1400*1750 |
| max mould size | mm | | 1110*2000 |
| minimum mould thickness | mm | | 610-750 |
| | | | |
| motor power of pump | kw | | 127.5 |
| air pressure | mpa | | 0.18*6 |
| air consumption | m3/min | | 1 |
| total power | kw | | 1 |
| average engergy consumption | kw | | 152 |
| | | | 82 |
| screw diameter | mm | | 120 |
| screw L/D ratio | | | 24 |
| plasticing capacity | kg/hr | | 280 |
| number of heating zone | | | 6 |
| extruder heating power | kw | | 32 |
| extruder driving | kw | | 90 |
| | | | |
| number of heating zone | | | 6 |
| power of die head | kw | | 39 |
| max die pin diameter | mm | | 500 |
| max die capacity | L | | 30-70 |
