| Customization: | Available |
|---|---|
| Type: | Extrusion Blow Molding Machine |
| Raw Material: | HDPE |
| Quantity: | |
|---|---|

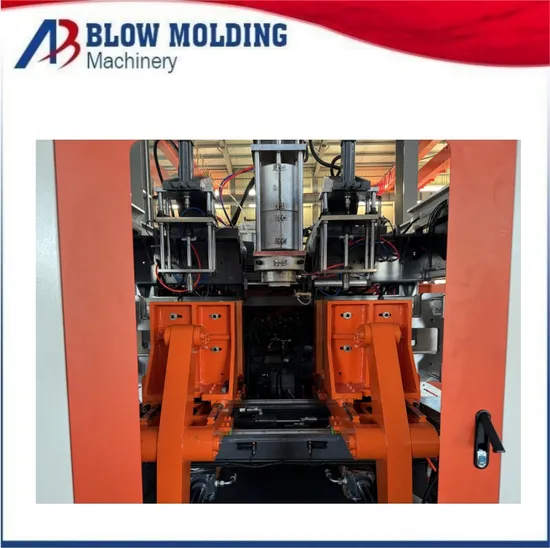

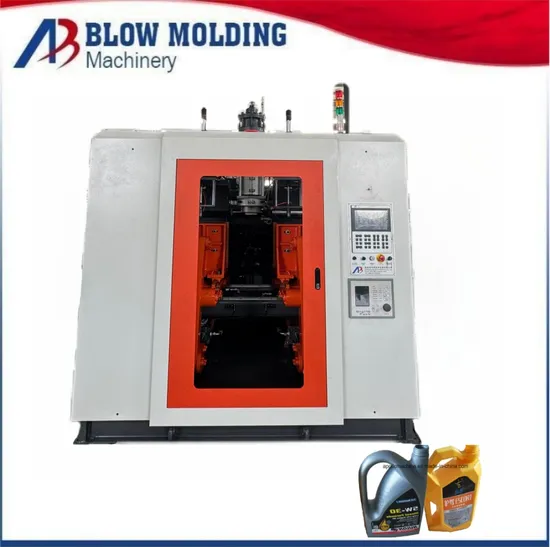

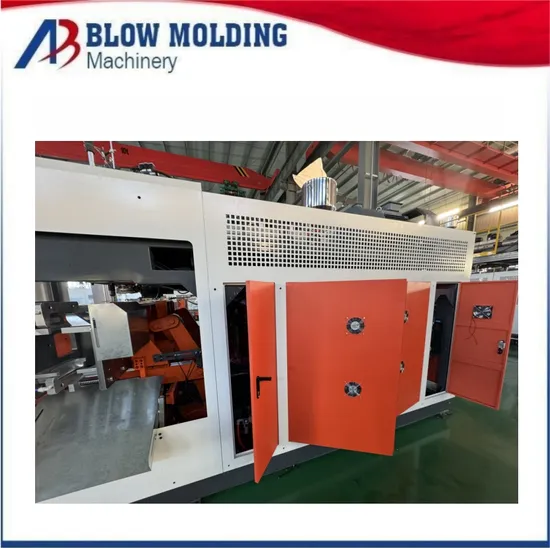

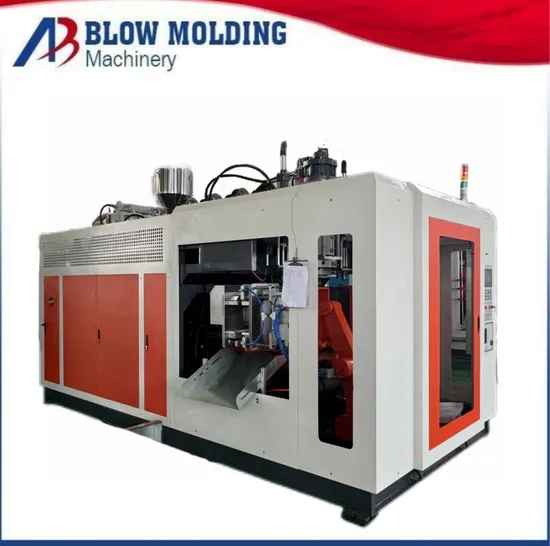

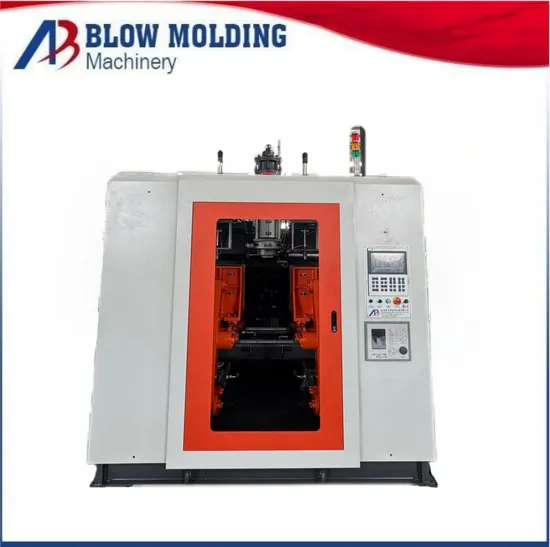

Plastic blow molding machine: ABLB65
| Max. Product volume | 5 liters |
| Out put capacity | 180~210 pc/h |
| Screw diameter | 65mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 18.5 KW |
| Screw heating capacity | 6 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 80KG/H |
| Oil pump drive power | 7.5 KW |
| Clamping force | 45KN |
| Max.size of mold | 80-350mm |
| Mold stroke | 320 X 360mm |
| Max.die diameter | 140mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.6 M ³ /MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 65 L/MIN |
| Size of Machine | 2.95x2x2.7m |
| Weight of machine | 6.7ton |
| electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
