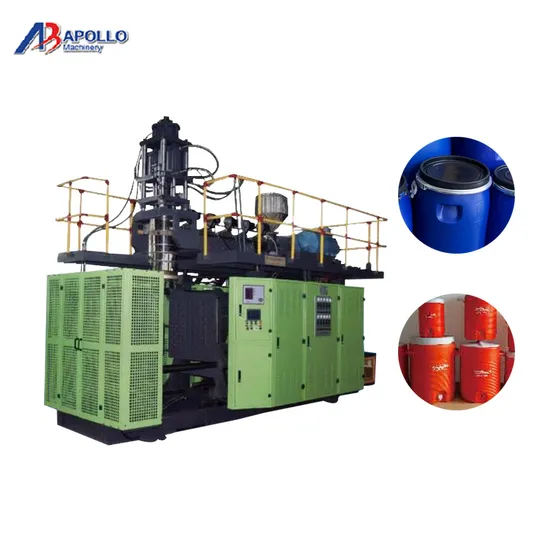

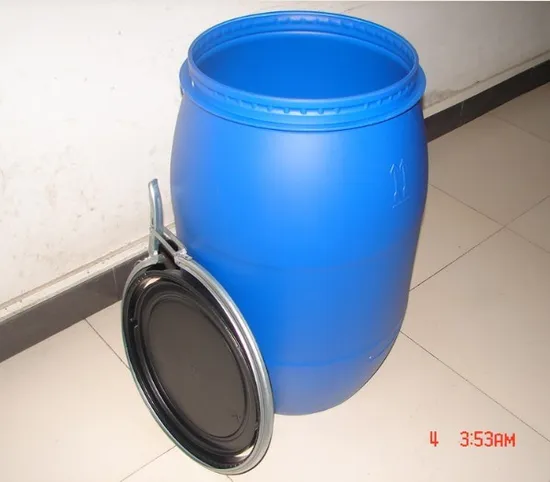

ABLD120 automatic blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 160L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
The main technical parameter of the machine: | Max. Product volume | 250 liters |
| Output capacities | 18~25 pcs/h |
| Screw diameter | 120 mm |
| Screw L/D ratio | 33 L/D |
| Screw drive power | 132 KW |
| Screw heating capacity | 36 KW |
| No.of heating zone | 6 zones |
| Output of HDPE | 350 KG/H |
| Oil pump drive power | 37 KW |
| Clamping force | 900 KN |
| Max.size of mold | 1000X1700 mm |
| Mold stroke | 880-1700 mm |
| Max.die diameter | 700 mm |
| Die heating power | 36 KW |
| Die heating segments | 6 zones |
| Blowing pressure | 0.8 mpa |
| Air volume | 1.6 M³/MIN |
| Cooling water pressure | 0.3 mpa |
| Water consumption | 180 L/MIN |
| Size of machine | 7.5×3.5×5.5 mm |
| Weight of machine | 36 ton |
The component of the machine: | Electronic Parts |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
