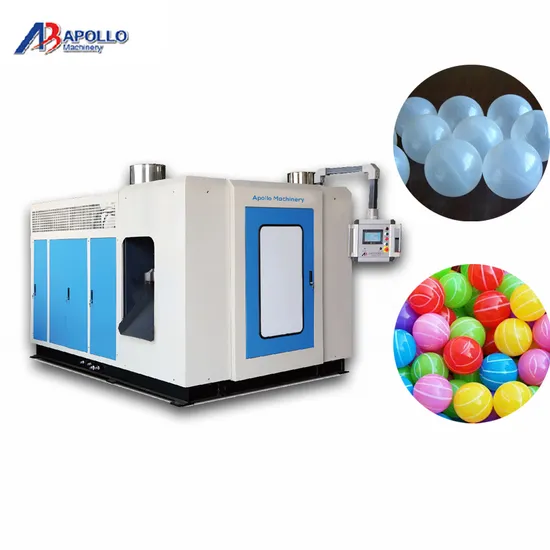

2L Automactic Plastic Bottle Blow Molding Machine (ABLB45II)
ABLB45 full automatic extrusion blow molding machine was specially designed for making plastic water bottles,medical bottles,oil bottles,plastic balls ,suction tubes and other small plastic containers not over 2L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 2L.
(2)Single station double die design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low investment,high efficiency,quick and safe operation,easy for maintenance.
Suitable for making:
Technical Parameters: ( ABLB45 ) | Max. Product volume | 2L |
| Out put capacity | 500~600pcs/h |
| Screw diameter | 45mm |
| Screw L/D ratio | 24:1 L/D |
| Screw drive power | 10 KW |
| Screw heating capacity | 2.6 KW |
| No.of heating zone | 3 zones |
| Output of HDPE | 35 KG/H |
| Oil pump drive power | 4.8 KW |
| Clamping force | 32KN |
| Max.size of mold | 80-350mm |
| Mold stroke | 250 X 320mm |
| Max.die diameter | 80mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.4M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 30 L/MIN |
| Size of Machine | 2.6x1.4x2.2m |
| Weight of machine | 2.8 ton |
