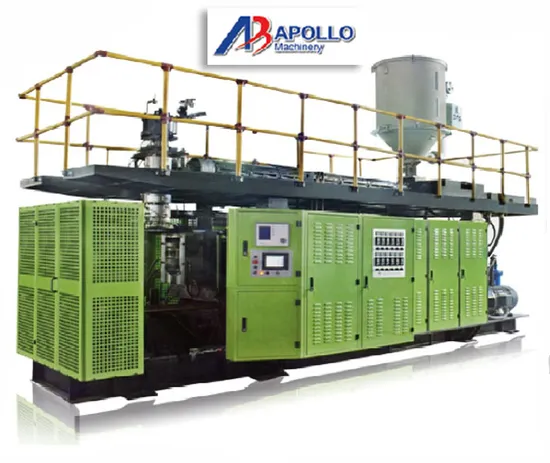

Fully-Auto Household Containers Blow Molding Machine 20L
Full-auto process with High output of HDPE
New technology for saving energy
The main components of the machine. ( ABLB90II ) | electronic parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | TAIDA FROM CHINA |
| hydraulic parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| air control system | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
Technical Parameters: ( ABLB90II ) | Max. Product volume | 20 liters |
| Out put capacity | 2160~2400pc/12h |
| Screw diameter | 90mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 45KW |
| Screw heating capacity | 8 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 128KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 108KN |
| Max.size of mold | 240-660mm |
| Mold stroke | 530 X 550mm |
| Max.die diameter | 180mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.9 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 90 L/MIN |
| Size of Machine | 4.2x3x3.1m |
| Weight of machine | 11ton |
After Sale Service: a. One year quality warranted
b. 24 hours service available
c. Free installation and test aboard
d. Free training operators
