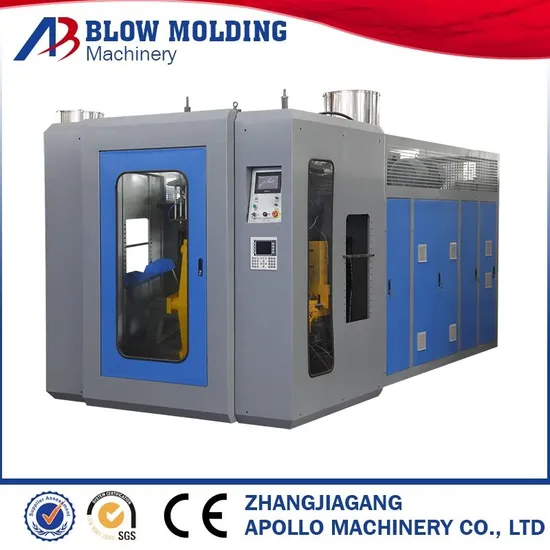

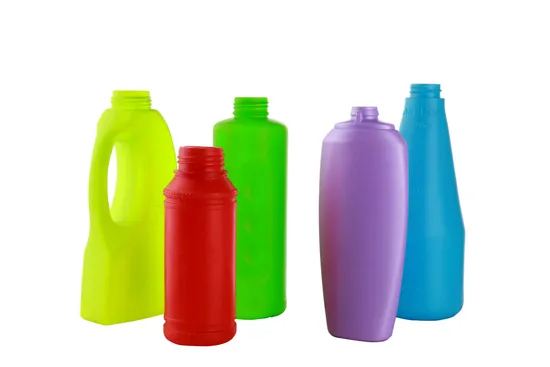

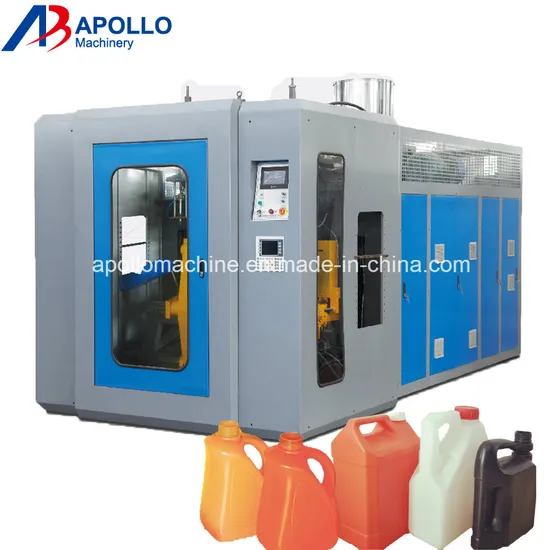

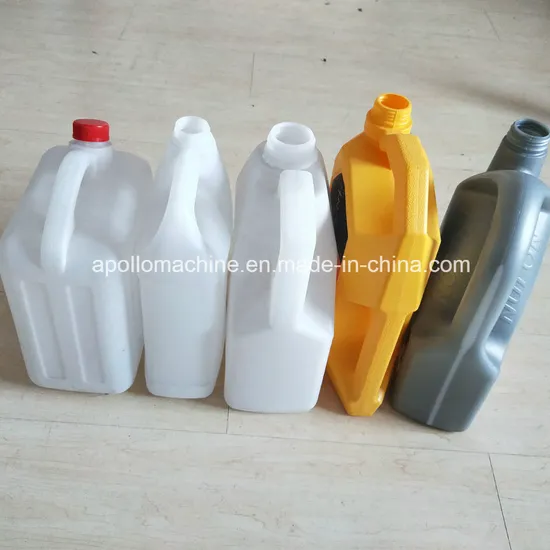

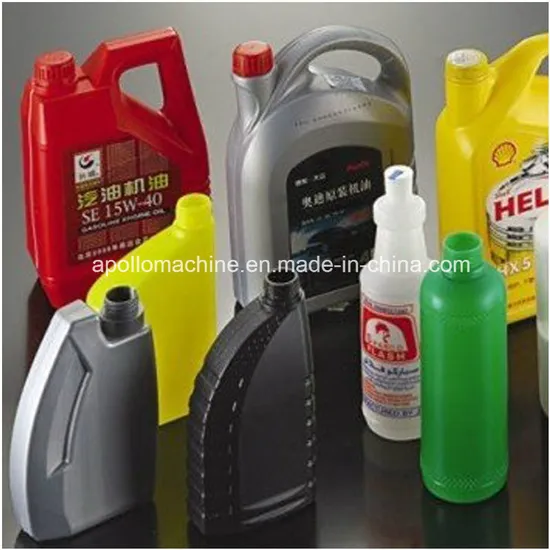

Automatic bottle making machine Model No.: ABLB75(Double station single die head) ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L. (2)Single station single die head design, very easy to operate and maintenance. (3)Most components of the blow moulding machine are from famous world brand. (4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Technical Parameters: ( ABLB75II)
Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on Max volume5L Output capacity180~200 pcs/h Size3.8×2.3×2.5(M) Weight4.8T systemSpecificationParametersNote Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature ReducerHard finishing,High intension,Low noise reducer Screw75mm,L/D ratio 24, 38CrMoALA Cooling system available Plasticization100Kg/HHDPE Heating Zone3-4 Aluminum HeaterAutomatic heating Heating power8KW/H Extrusion MotorThree phase asynchronous motor (380V,50HZ) 22kw Cooling Fan3-4zone Automatic cooling
Extrusion systemSummarizeHigh-grade alloy steel, center feeding Die head number1 Center distance of die heads/ Max die mouth/ Heating zone3-4 Stainless steel heating cycle Heating power3~5KW Clamping systemSummarize High intension, rigidity, center mold locking, stable mould opening and clamping system Clamping force80KN Template distance148~568mm Max mould size400X450mm Mould materialHigh grade 50# steel Electric systemSummarizePLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)Japanese Mitsubishi PLC system Operate interfaceTouch screen, automatic self-diagnose alarm system Temperature controlAutomatic temperature control module Movement controlJapanese Mitsubishi, Chinese/English Version Electric protectionAmpere overload, electric short circuit self-protection function Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient Oil pump motorThree phase asynchronous motor (380V,50HZ) 7.5kw Oil pumpImported double pump ValvesImported oil pump valves and connections Oil pipesDouble layer overpressure resistant System pressure60Kg/cm² Cooling systemSeparate water cooling cycle, oil cooler cooling system Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system Air pressure0.8Mpa Air displacement0.8M3/min Electromagnetic valve AIRTAC Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow80L/min Water pressure0.3-0.6MPa The main components of the machine. ( ABLB75II ) electronic parts NameTrader Micro computer control systemJapanese MITSUBISHI Temperature ControllerJapanese MITSUBISHI Auxiliary RelayOMRON contactorSchneider from France Electric motorSIEMENS MOTOR Power SourceTAIWAN MEANWELL InverterDELTA hydraulic parts NameTrader Oil pumpTAIWAN HIGH-TECH ValveJAPAN YUKEN Oil pump and connectionJAPAN YUKEN Sealed partHALLITE air control system NameTrader CylinderAIRTAC Air ValveAIRTAC
Basic Info.
Model NO.
ABLB65
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Max. Product Volume
5L
Die Head
1/2/3/4
Auto-Deflashing
Availalble
Auto-Lubrication
Available
Suitable Material
HDPE/PP/PVC/PETG/PS/LDPE
Guarantee
One Year
Operator Needed
1~2
Production Period
40 Days
Spare Parts
Free
Transport Package
Film Packaging
Specification
CE, ISO
Trademark
Apollo
Origin
Jiangsu
HS Code
8477301000
Production Capacity
170~190PCS/H
Product Description
Automatic bottle making machine Model No.: ABLB75(Double station single die head) ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.
The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L. (2)Single station single die head design, very easy to operate and maintenance. (3)Most components of the blow moulding machine are from famous world brand. (4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Technical Parameters: ( ABLB75II)
Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on Max volume5L Output capacity180~200 pcs/h Size3.8×2.3×2.5(M) Weight4.8T systemSpecificationParametersNote Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature ReducerHard finishing,High intension,Low noise reducer Screw75mm,L/D ratio 24, 38CrMoALA Cooling system available Plasticization100Kg/HHDPE Heating Zone3-4 Aluminum HeaterAutomatic heating Heating power8KW/H Extrusion MotorThree phase asynchronous motor (380V,50HZ) 22kw Cooling Fan3-4zone Automatic cooling
Extrusion systemSummarizeHigh-grade alloy steel, center feeding Die head number1 Center distance of die heads/ Max die mouth/ Heating zone3-4 Stainless steel heating cycle Heating power3~5KW Clamping systemSummarize High intension, rigidity, center mold locking, stable mould opening and clamping system Clamping force80KN Template distance148~568mm Max mould size400X450mm Mould materialHigh grade 50# steel Electric systemSummarizePLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)Japanese Mitsubishi PLC system Operate interfaceTouch screen, automatic self-diagnose alarm system Temperature controlAutomatic temperature control module Movement controlJapanese Mitsubishi, Chinese/English Version Electric protectionAmpere overload, electric short circuit self-protection function Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient Oil pump motorThree phase asynchronous motor (380V,50HZ) 7.5kw Oil pumpImported double pump ValvesImported oil pump valves and connections Oil pipesDouble layer overpressure resistant System pressure60Kg/cm² Cooling systemSeparate water cooling cycle, oil cooler cooling system Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system Air pressure0.8Mpa Air displacement0.8M3/min Electromagnetic valve AIRTAC Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system Cooling mediumWater Water flow80L/min Water pressure0.3-0.6MPa The main components of the machine. ( ABLB75II ) electronic parts NameTrader Micro computer control systemJapanese MITSUBISHI Temperature ControllerJapanese MITSUBISHI Auxiliary RelayOMRON contactorSchneider from France Electric motorSIEMENS MOTOR Power SourceTAIWAN MEANWELL InverterDELTA hydraulic parts NameTrader Oil pumpTAIWAN HIGH-TECH ValveJAPAN YUKEN Oil pump and connectionJAPAN YUKEN Sealed partHALLITE air control system NameTrader CylinderAIRTAC Air ValveAIRTAC
