Full Automatic Plastic Bottle Making Machine

Name: Full Automatic Plastic Bottle Making Machine
Rating: 5.0 (99 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB 75

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Application

Plastic Bottle

Max.Product.Volume

3.5 L

Blow Moulding Type

Extrusion Blow Moulding

Product Name

Full Automatic Plastic Bottle Making Machine

Power

30kw

Max Size of Mold

250*320 mm

out Put HDPE

60 Kg/H

Screw Diameter

75 mm

Blowing Pressure

0.6 Map

Weight of Machine

4.3 Ton

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

84773000

Production Capacity

270PCS/H

Product Description

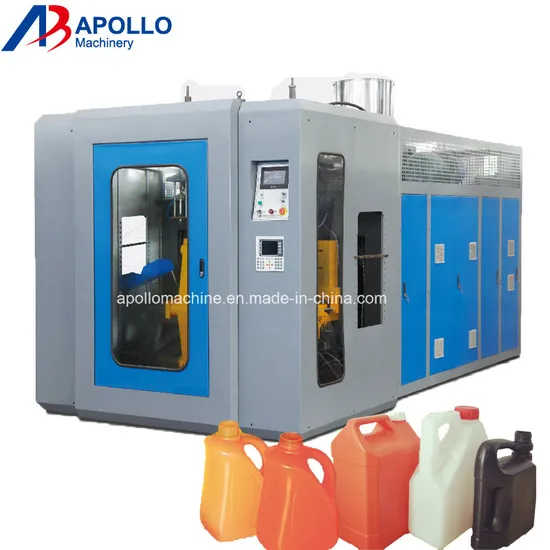

ABLB 75II full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 8 L. This design is low power consumption and very stable.

The features of this machine:

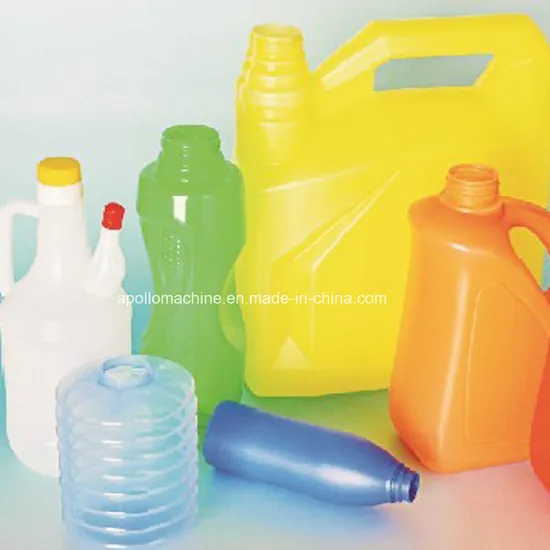

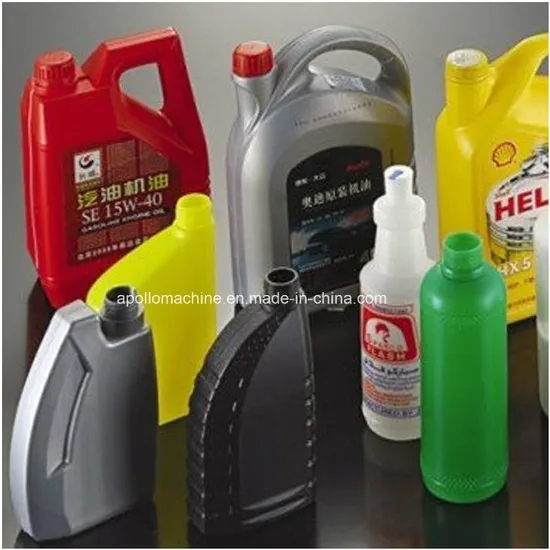

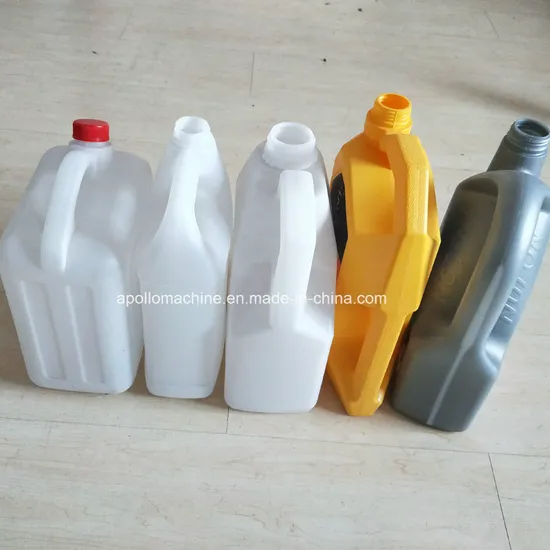

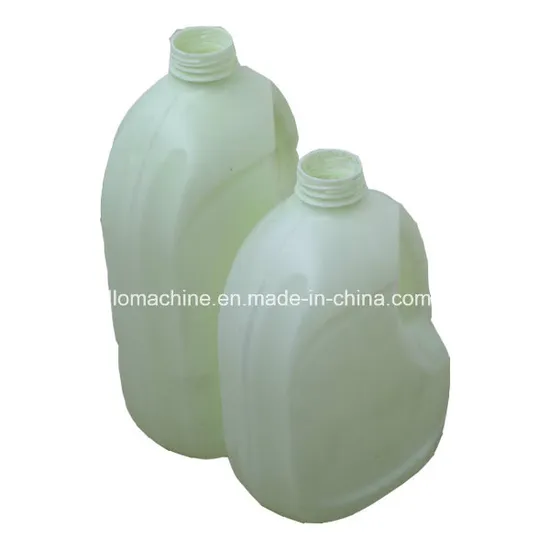

(1) Full Automatic Plastic Bottle Making Machine is suitable for producing PE,HDPE,PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max.Product volume is up to 8L.
(2) Single station single die head design, very easy to operate and maintenance.
(3) Most components of the blow moulding machine are from famous world brand.
(4) Fully automatic process with low power consumption, high efficiency, quick and safe operation,
easy for maintenance.

Max. Product volume	8 L
Out put capacity	750*2 pcs/h
Screw diameter	75MM
Screw L/D ratio	24:1 L/D
Screw drive power	22 KW
Screw heating capacity	7-8 KW
No.of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	7.5 KW
Clamping force	80 KN
Max.size of mold	400*430 MM
Mold stroke	170-520 MM
Max.die diameter	170 MM
Blowing pressure	0.6 mpa
Air Volume	0.8 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	4.2x2.2x2.7 m
Weight of machine	7.5 Ton

Electronic Parts
Name	Brand
Micro computer control system	Japanese MITSUBISHI
Tempreture Controller	TAIWAN YANHUA PID
Auxiliary Relay	OMRON
Contactor	Schneider(France)
Electric motor	SImens
Power Source	MEANWELL(Taiwan)
Transudcer	ABB
Hydraulic Parts
Oil pump	HIGH-TECH(Taiwan)
Valve	YUKEN(Japan)
Oil pump and connection	YUKEN(Japan)
Swaled part	HALLITE
Air Control System
Cylinder	AIRTAC
Air Wave	AIRTAC

Packaging & Delivery:
1. Packaging Details:
Inner package: Film packaging.
Outside package: Wooden cases.

2.Delivery:
Time of Delivery: 35 days after the advance payment.
Mode of payment: T/T, L/C.

Company Philosophy and Exhibition :
1. Development, Apollo's pursue. Innvation, Apollo's spirit.
2. We always put our coustomers satisfaction and interests in the first place.
3. Our products have a great reputation in the blow molding machine and our products are warmly welcomed by our new and old customers.Not only our products sold in our domestic land, our products also exported to overseas.
Full Automatic Plastic Bottle Making Machine

Assembly Processes:
Come to our company, you can clearly see every step of our machine!
1. Support assembly and test procedures.
2. Provide work flow diagrams.
3. Show you around to see the layout of our company.

Full Automatic Plastic Bottle Making Machine

After-sale Service:
1. One year warrantly after sale.
2. Provide technical advisory service for a long time.
3. Professional after-sale service.
4. If there is any problem with the machine , or any main parts are broken, we will ask our profesionals and technical personnel to repair it or replace it for free.
5. We will train two or three operating man for free.
   (Travel and hotel is paid by buyer's expenses.)

Sample Service:
1. The video of how machine running will be sent to you.
2. Welcome to China and come to visit our company. We will show you around to see how the machine running. If you have any problem, we must give you a very detailed explanation.
3. All of us will try our best to help you have a full understanding of our machine so that you can opeate your machine easily and put the machine into use as soon as possible.

Q & A:
1. Q: Are you a factory or trading company?
   A:We are a company integrating factory and trade.
2. Q: Where is your company located?
   A: Our company is located in Zhagnjiagang, Jiangsu Province, China. It is not far from
   Ningbo & Shanghai port. Has the extremely advantageous geographical location.
3. Q: Can i visit your company for inspecting your machine?
   A: Of course, we will try our best to meet your needs. Welcome to visit our company!!

Contact us:

Dear customer,

Thanks for your visiting!! Full Automatic Plastic Bottle Making Machine

APOLLO Machinery is a professional manufacturer for blowing machine . We treat every customer seriously. We will offer the most suitable soluition for you! We are ready to solve the problem for you!

So in order to offer you the best quotation and the most suitable machine , please kindly let us know when you make the inquiry. Such as:

1. What kind of bottle or contanier you want to make? what's the volume ? Pictures would be helpful!

2. What will you filling into the bottle?

3. What's the capacity you really want?

Looking forward to hearing from you!

Any more questions, please feel free to contact us!
