| Customization: | Available |
|---|---|
| Type: | Extrusion Blow Molding Machine |
| Making Method of Parison: | Extrusion-Blow Molding |
| Quantity: | |
|---|---|

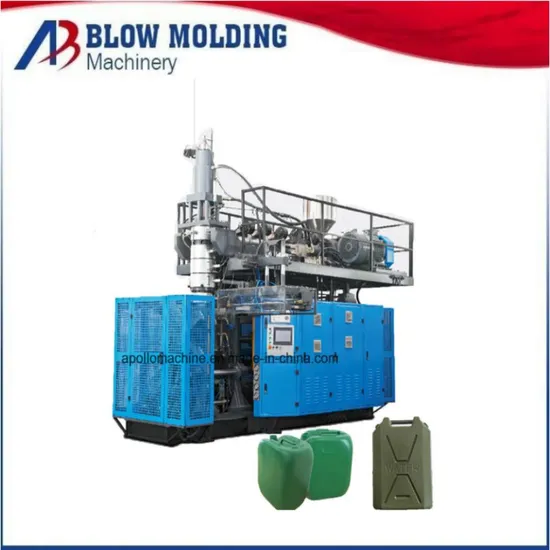

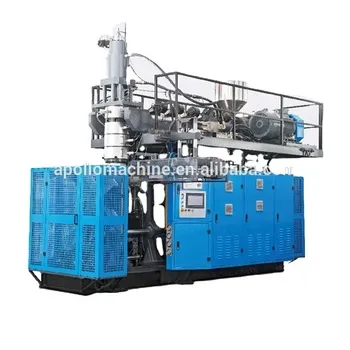

ABLB80 blow molding machine is suitable to produce 5 gallon PC bottles and containers in all shapes. We also have CE and ISO9001 certificate for you and offer engineer to your country to help you set up the machine. High quality assurance will be provided for you.
| Max. product volume | 5 gallon |
| Output capacity | 90 pcs/h |

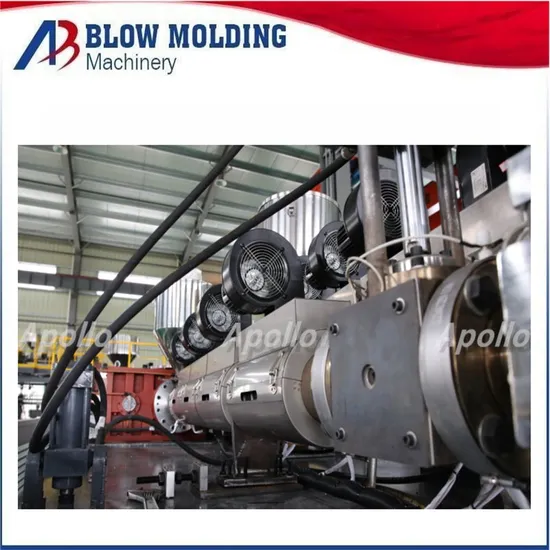

| Screw diameter | 80mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 30 KW |
| Screw heating capacity | 16KW |
| No. of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 22 KW |
| Clamping force | 210 KN |

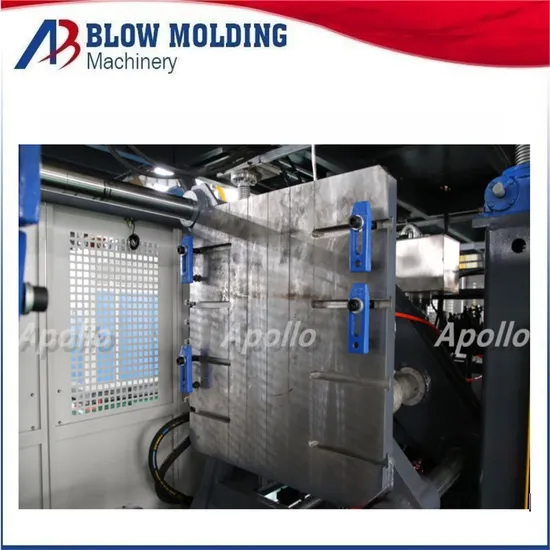

| Max. size of mold | 350-780mm |
| Mold stroke | 550x650mm |
| Max. die diameter | 280mm |
| Die heating power | 5.3 KW |
| Die heating segements | 4 zones |
| Blowing pressure | 0.8 mpa |
| Air volume | 0.8 M2/MIN |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request. ABLB80 blow molding machine is suitable to produce 5 gallon PC bottles and containers in all shapes. We also have CE and ISO9001 certificate for you and offer engineer to your country to help you set up the machine. High quality assurance will be provided for you.
| Max. product volume | 5 gallon |
| Output capacity | 90 pcs/h |
| Screw diameter | 80mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 30 KW |
| Screw heating capacity | 16KW |
| No. of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 22 KW |
| Clamping force | 210 KN |
| Max. size of mold | 350-780mm |
| Mold stroke | 550x650mm |
| Max. die diameter | 280mm |
| Die heating power | 5.3 KW |
| Die heating segements | 4 zones |
| Blowing pressure | 0.8 mpa |
| Air volume | 0.8 M2/MIN |
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
