Servo Motor High Quality Save Energy Jerry Can Making Machine / Blow Molding Machine

Servo Motor High Quality Save Energy Jerry Can Making Machine / Blow Molding Machine

Name: Servo Motor High Quality Save Energy Jerry Can Making Machine / Blow Molding Machine
Rating: 5.0 (79 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB 65

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008, QS, GMP

Application

Bottles,Jars,Jerry Cans,Gallons,Containers

Max. Product Volume

30L

Suitable Material

HDPE,PP

Servo Motor

Available

Per Hour Production of 20L Jerry Can

55~60 PCS

Operator Needed

1

Machine Guarantee

1 Year

Delivery Time

55 Days

Mould

Make as Per Your Sample

Transport Package

Film Packing

Specification

ISO9001

Trademark

APOLLO

Origin

Zhangjiagang City, Jiangsu Province, China

HS Code

8477301000

Production Capacity

55~60 PCS/H

Product Description

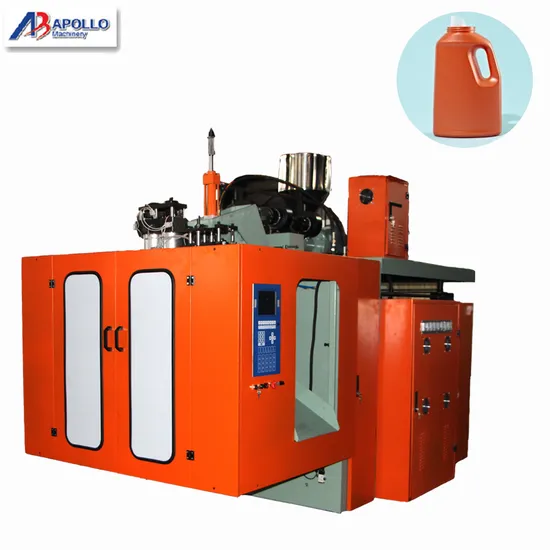

HDPE jerry cans blow molding machine
ABLD80 plastic drum making machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys, tool boxes and other plastic containers not over 50L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 50L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.

Max. Product volume	30 liters
Output capacity	60~80pc/h
Screw diameter	80mm
Screw L/D ratio	25 L/D
Screw drive power	30 KW
Screw heating capacity	11 KW
No.of heating zone	4 zones
Output of HDPE	130 KG/H
Oil pump drive power	15 KW
Clamping force	260 KN
Max.size of mold	700X950mm
Mold stroke	450-1000mm
Max.die diameter	340mm
Die heating power	7.6 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	1.0 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
