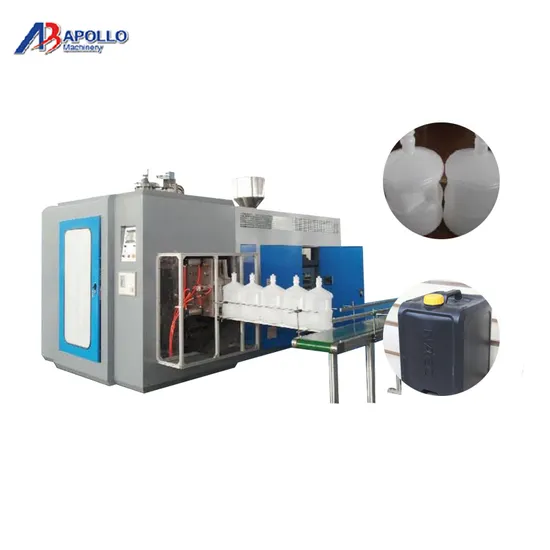

1~5L HDPE Plastic Container Blow Moulding Machine
Plastic blow moulding machine: ABLB75II full automatic blow molding machine produce bottles from 2L to 7.5L. It is suitable for PP, PE, HDPE, PET, ABS, PVC and so on. Precision design of heater ensures even heating for getting perfect plastic products. Double station design is suitable for mass production to meet your production request in big quantity. Main technical parameters:
Features: (ABLB75II)
Max. Product volume: 7.5 liters
Dry cycle: 800X2PC/h
Screw diameter: 75mm
Screw L/D ratio: 24 L/D
Screw drive power: 22 KW
Screw heating capacity: 7 KW
No. Of heating zone: 3/4 zones
Output of HDPE: 100 KG/H
Oil pump drive power: 7.5-11 KW
Clamping force: 78 KN
Max. Size of mold: 148-568mm
Mold stroke: 400X450mm
Max. Die diameter: 160mm
Blow pressure: 0.6mpa
Air volume: 0.8M³ /MIN
Cooling water pressure: 0.3mpa
Water consumption: 80 L/MIN.
