Servo Motor Plastic Drum /Bottle 5 L HDPE Blow Molding Machine

Name: Servo Motor Plastic Drum /Bottle 5 L HDPE Blow Molding Machine
Rating: 5.0 (25 reviews)

Customization:	Available
Type:	Extrusion Blow Molding Machine
Raw Material:	PE

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ABLB75

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE

Application

Bottles, Jars, Jerry Cans, Gallons, Containers

Max. Product Volume

2L

Die Head

1/2/3

Suitable Material

PE/PP/PVC

Auto-Deflashing

Available

Auto-Lubrication

Available

Operator Needed

1

Delivery Time

35 Working Days

Send Engineer for Training

Avaialble

Guarantee Period

1 Year

Transport Package

Film Packaging

Specification

ISO9001

Trademark

Apollo

Origin

Jiangsu

HS Code

84773000

Production Capacity

500~600PCS/H

Product Description

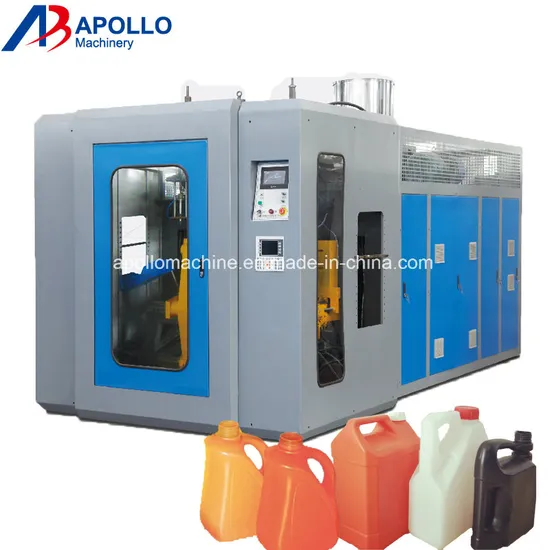

Full-automatic extrusion blow moulding machine:

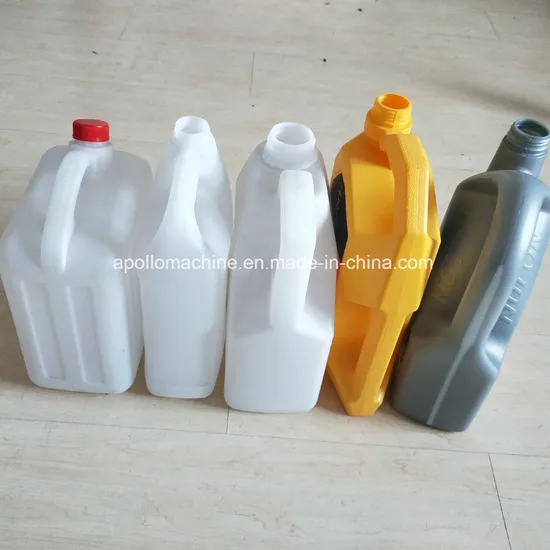

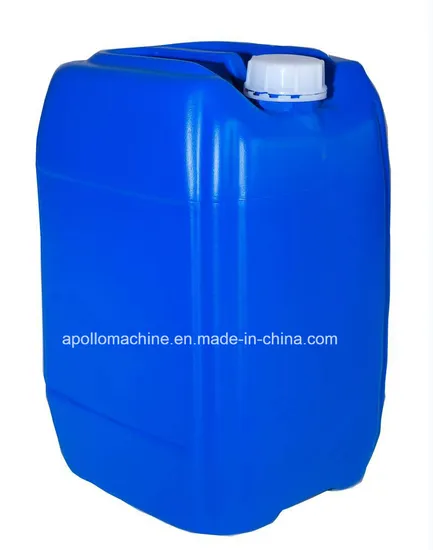

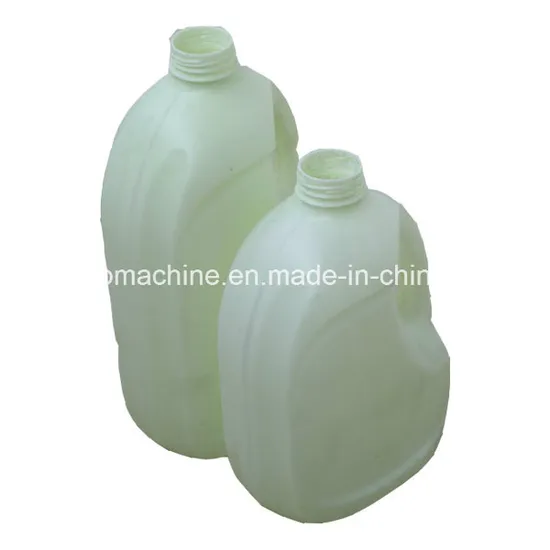

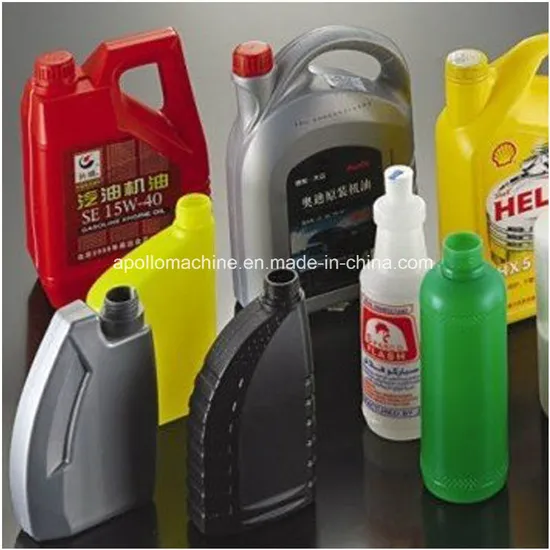

Automatic blow molding machine for making HDPE or PP detergents bottles,shampoo,liquid soap
cosmetical,household package,jars,jerry cans up to 8L.

The features of this machine:

(1)It is suitable for producing PP, PE, PVC and plastic containers and bottles in all shapes, the max. Product volume is up to 8L.
(2)It is mainly designed for small plastic products and plastic tube, especially for plastic suction tube.
(3)Feeding system carries performance automatically through a suction feeder. It can save the labor cost for you. One worker can look after 5 sets at the same time.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting and maintenance.

Technical Parameters: ( ABLB75 )

Max. Product volume	8L
Out put capacity	5 00~600 pc s /h
Screw diameter	45 mm
Screw L/D ratio	24: 1 L/D
Screw drive power	10 KW
Screw heating capacity	2.6 KW
No. of heating zone	3 zones
Output of HDPE	35 KG/H
Oil pump drive power	4.8 KW
Clamping force	32 KN
Max. size of mold	80-350 mm
Mold stroke	250 X 320 mm
Max. die diameter	80 mm
Blowing pressure	0.6 mpa
Air Volume	0.4 M³ /MIN
Cooling water pressure	0.3mpa
Water consumption	30 L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton

The main components of the machine:

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO
