HDPE Auto Extrusion Blow Molding Machine for Plastic 20L- 60L Bottle /Drum

Customization: Available
Type: Extrusion Blow Molding Machine
Raw Material: HDPE
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Overview

Basic Info.

Model NO.
ABLB80
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Screw Diameter
65mm
Max .Size of Mold
380X350(mm)
Weight of Machine
6.5ton
Max.Product Volume
4L
Output of HDPE
80 Kg/H
Transport Package
Film Packing for Blowing Molding Machine
Specification
CE, ISO9001
Trademark
APOLLO
Origin
Zhangjiagang City, Jiangsu Province, China
HS Code
8477301000
Production Capacity
800*2PC/H

Product Description

Company Profile



HDPE Auto Extrusion Blow Molding Machine for Plastic 20L- 60L Bottle /Drum



Product Parameters



Max. Product volume

4liters

Screw diameter

65mm

Screw L/D ratio

24L/D

Screw drive power

18.5 KW

Screw heating capacity

5.7 KW

No.of heating zone

3 zones

Output of HDPE

80KG/H

Oil pump drive power

5.5 KW

Clamping force

45KN

Max.size of mold

320 X 360mm

Mold stroke

148-508mm

Max.die diameter

140mm

Blowing pressure

0.6 mpa

Air Volume

0.7 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

65L/MIN

Size of Machine

3.0x2x2.7m

Weight of machine

6.5 ton

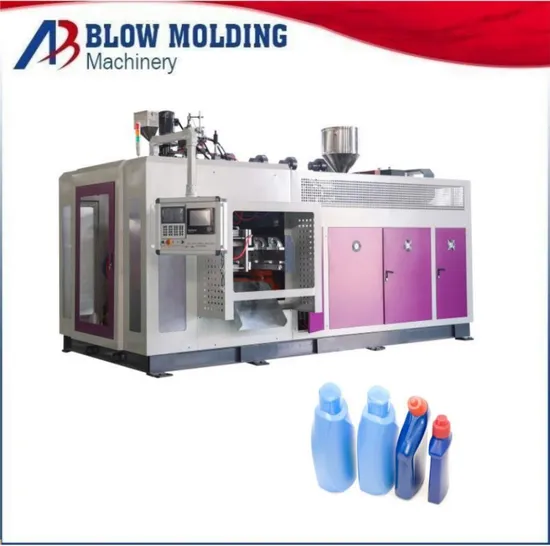

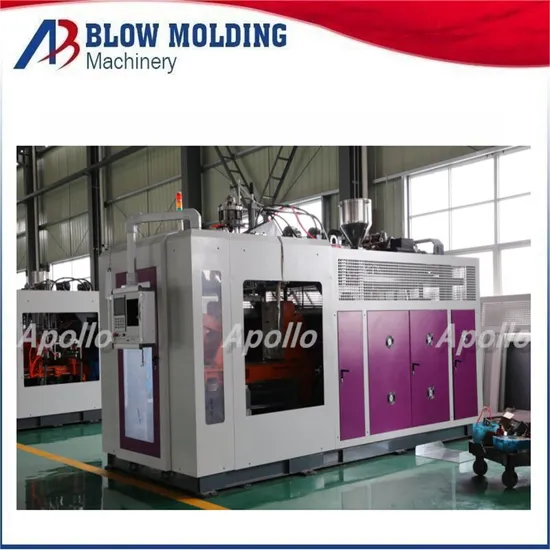

Detailed Photos

HDPE Auto Extrusion Blow Molding Machine for Plastic 20L- 60L Bottle /Drum

Certifications



HDPE Auto Extrusion Blow Molding Machine for Plastic 20L- 60L Bottle /Drum
Our Advantages
HDPE Auto Extrusion Blow Molding Machine for Plastic 20L- 60L Bottle /Drum
Why choose us

HDPE Auto Extrusion Blow Molding Machine for Plastic 20L- 60L Bottle /Drum

FAQ



HDPE Auto Extrusion Blow Molding Machine for Plastic 20L- 60L Bottle /Drum1. Q: -Can the machine customized only for my products?
  A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure  special design and brand of parts special request.

2. Q: -How about the molds ?
  A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various  for optional.

3. Q: -What is the business item for this project ?
  A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed  by buyer and APOLLO .
        b. Port of Loading: SHANGHAI, CHINA.
        c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
        d. Container needed: One 20GP container.
